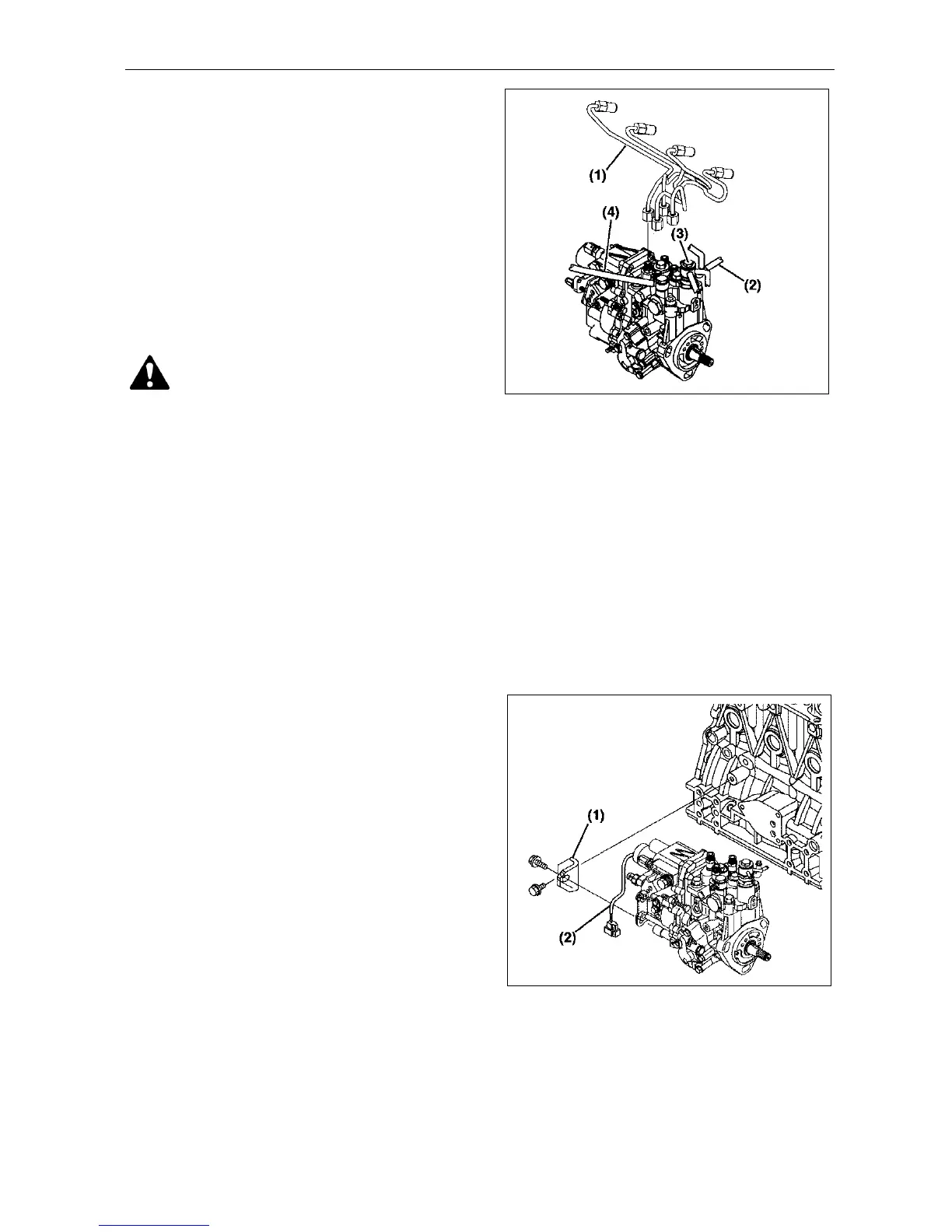

(5) Remove the high-pressure fuel injection
lines as an assembly (Figure 2, (1)).
Note:
To prevent "rounding" the fuel line nuts always
use a "line" or "flare nut" wrench. When
loosening the fuel line nuts, always hold the fuel
injection pump delivery valves with a "back up"
wrench to prevent loosening of the delivery
valves.
(6) First loosen the fuel line nuts at the fuel
injectors and then at the fuel injection
pump.
CAUTION
Remove or install the high-pressure fuel injection
lines as an assembly whenever possible.
Disassembling the high-pressure fuel injection
lines from the retainers or bending any of the fuel
lines will make it difficult to reinstall the fuel lines.
(7) Finish loosening all the fuel line nuts and
remove the high-pressure fuel lines as an
assembly being careful not to bend any of
the fuel lines. Be sure to protect the fuel
system from contamination by covering all
open connections.
(8) Disconnect the coolant lines from the cold
start device (Figure 2, (3)) on the fuel
injection pump. Plug the open ends of the
lines to minimize leakage and prevent
contamination.
(9) Disconnect the fuel return lines from the
fuel return fitting (Figure 2, (2)). Plug the
open ends of the lines to minimize leakage
and prevent contamination.
(10) Remove the fuel supply line (Figure 2, (4)).
Plug the open end of the line to minimize
leakage and prevent contamination.
(11) Remove the throttle cable from the fuel
injection pump.
(12) Separate the stop solenoid wiring
connector (Figure 3, (2)).
(13) Remove the rear fuel injection pump
bracket(s) (Figure 3, (1)) from the fuel
injection pump.
Note:
Configuration of the fuel injection pump rear
brackets may vary depending upon engine
model.
