5 TRANSMISSION 5 TRANSMISSION
EF494T TM 06/2011 edition
147

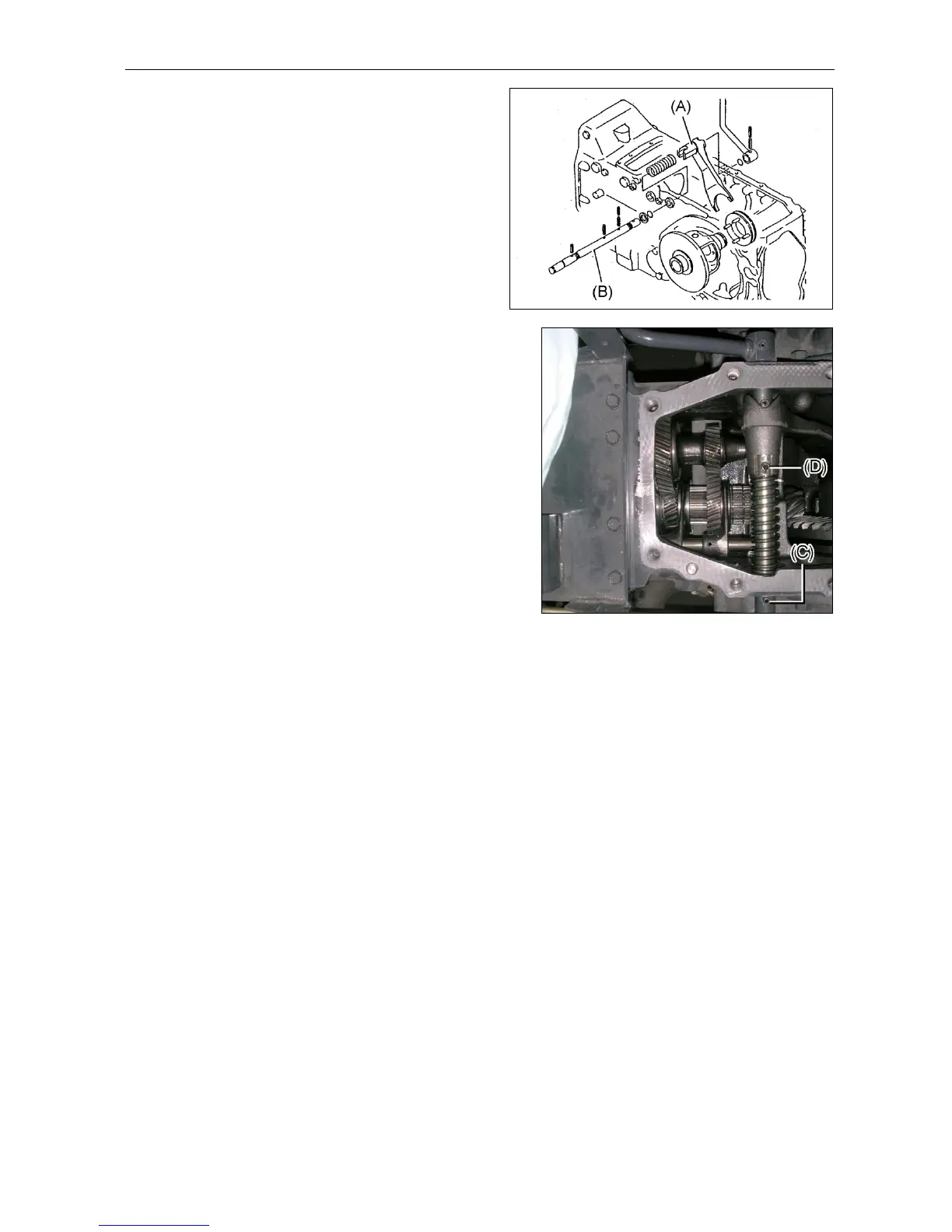

(11) Remove the spring pins (C) and (D), and
remove the fork (A) and the differential lock
shaft (B).
(A) Fork
(B) Differential lock shaft
