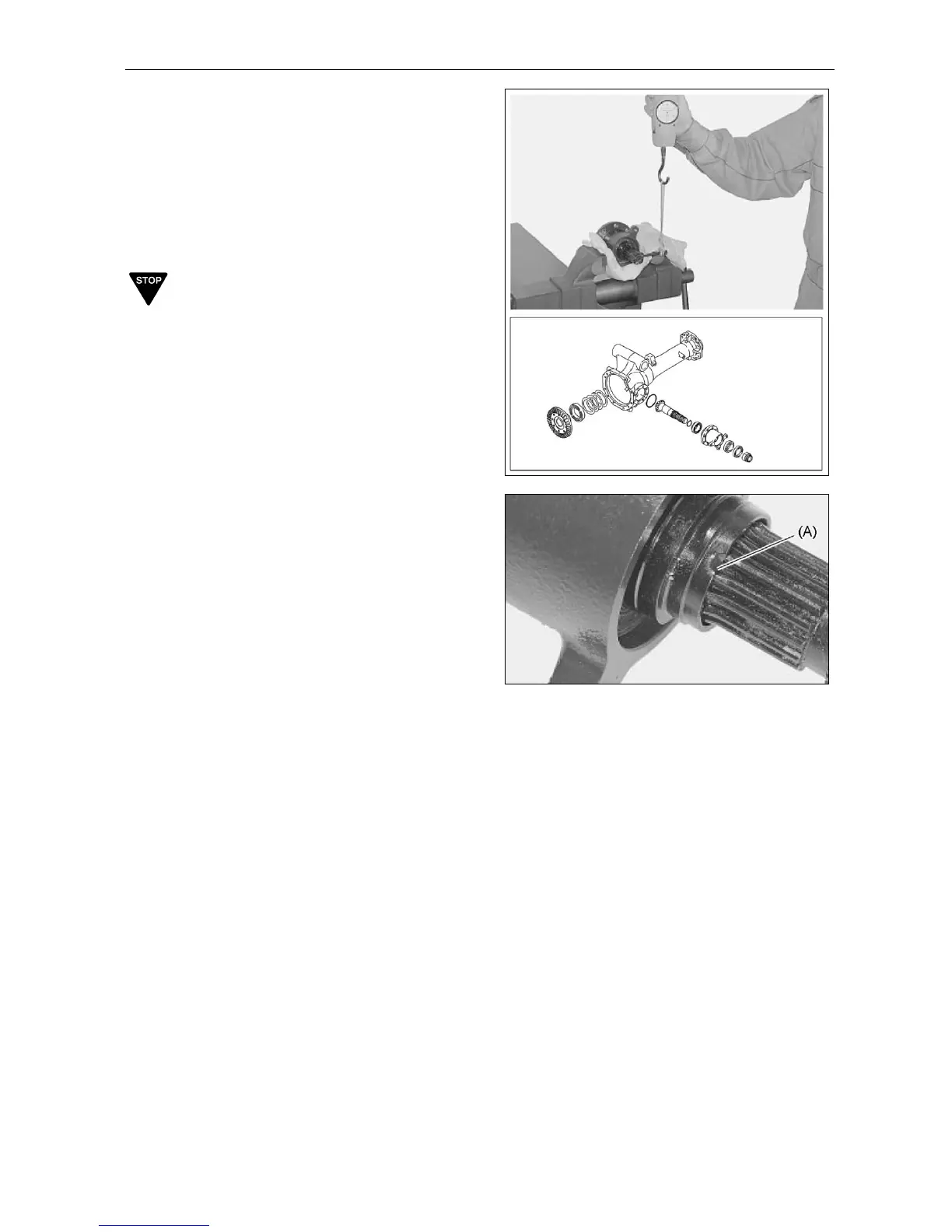

(3) Set up a spring balance as shown in the
drawing on the right. Measure the torque
created when the drive pinion starts
rotating.
(4) Tighten the seal collar little by little until the
torque reaches the specified level of 0.032
to 0.160 kgf-m. Make sure to measure the
torque repeatedly.
IMPORTANT
The seal collar should be replaced with a new
one.
If the torque is less than specified, the gear
may be damaged.
If the torque is greater than specified, the
bearing may be damaged.
(5) After the adjustments are finished, tap
section (A) and the opposite side on the
seal collar using a screwdriver to create
detents.
