2 DISASSEMBLY OF COMPONENTS 2 DISASSEMBLY OF COMPONENTS
EF494T TM 06/2011 edition

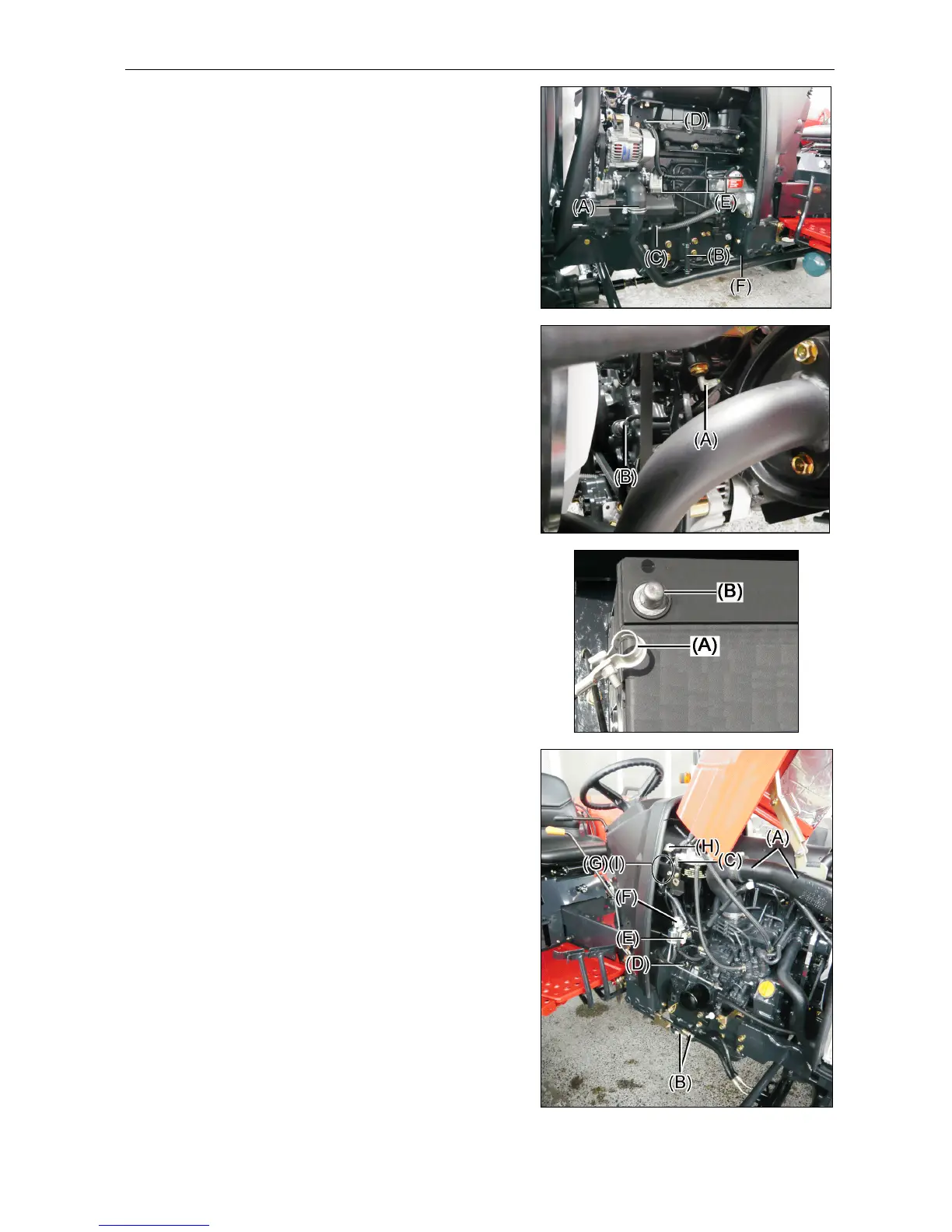

(4) Remove the following parts from the left side
of the machine.
(A) (B) Low-pressure hydraulic pipes
(C) High-pressure hydraulic pipe: M6 Bolts x 4
pieces.
(D) Generator wirings
(E) Electric wire clamps: 3 places
(F) Hydraulic pipe fixing bolts under clutch housing
(5) Remove the following parts from the upper
part of the engine.
(A) Water temperature meter wire
(B) Engine speed and revolution cable
(6) Disconnect the battery cable from the
negative terminal to prevent short circuit.
(A) Battery cable
(B) Battery terminal, negative (-)
(7) Remove the following parts from the right
side of the machine.
(A) Wire clamps
(B) Power steering cylinder pipes
(C) Fuel hose
(D) Engine oil pressure switch coupler
(E) Fuel feed pump coupler
(G) Relay coupler
(H) Head lamp coupler
(I) Body earth (ground)
To Next Page
