2 DISASSEMBLY OF COMPONENTS 2 DISASSEMBLY OF COMPONENTS
EF494T TM 06/2011 edition
49
(8) Remove bonnet.
See “2.1 REMOVING THE ENGINE
BONNET COVER”.

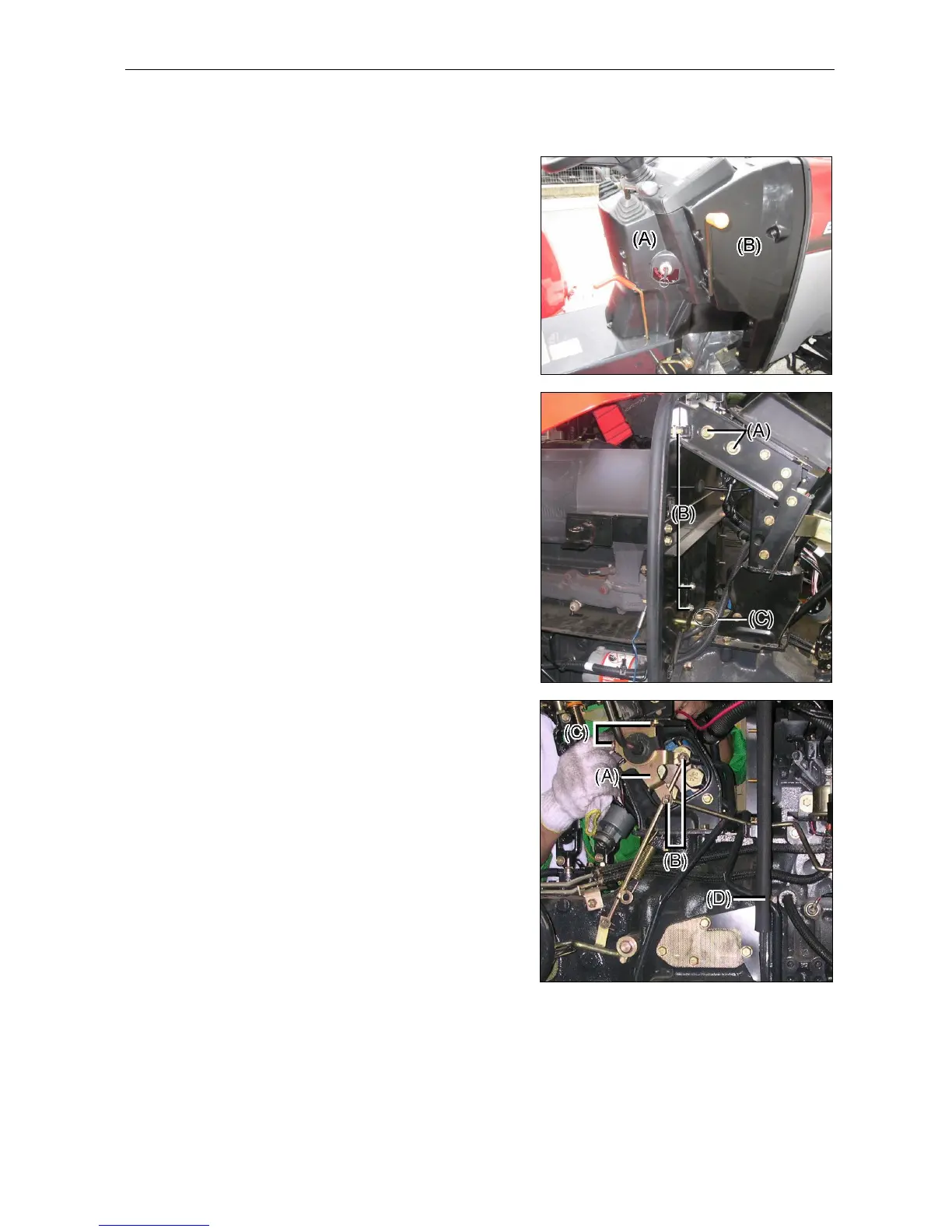

(9) Remove the front column cover (A) and the
dashboard cover (B).
(10) Remove bonnet stay fixing bolt (A), air cut
plate (air deflection plate) fixing bolts (B), and
hydraulic pipe fixing bolt (C).
(11) Remove the accelerator lever assembly (A)
and the air cut plate (air deflection plate) (D).
(A) Accelerator lever assembly
(B) Accelerator links
(C) Fixing bolts
(D) Air cut plate
