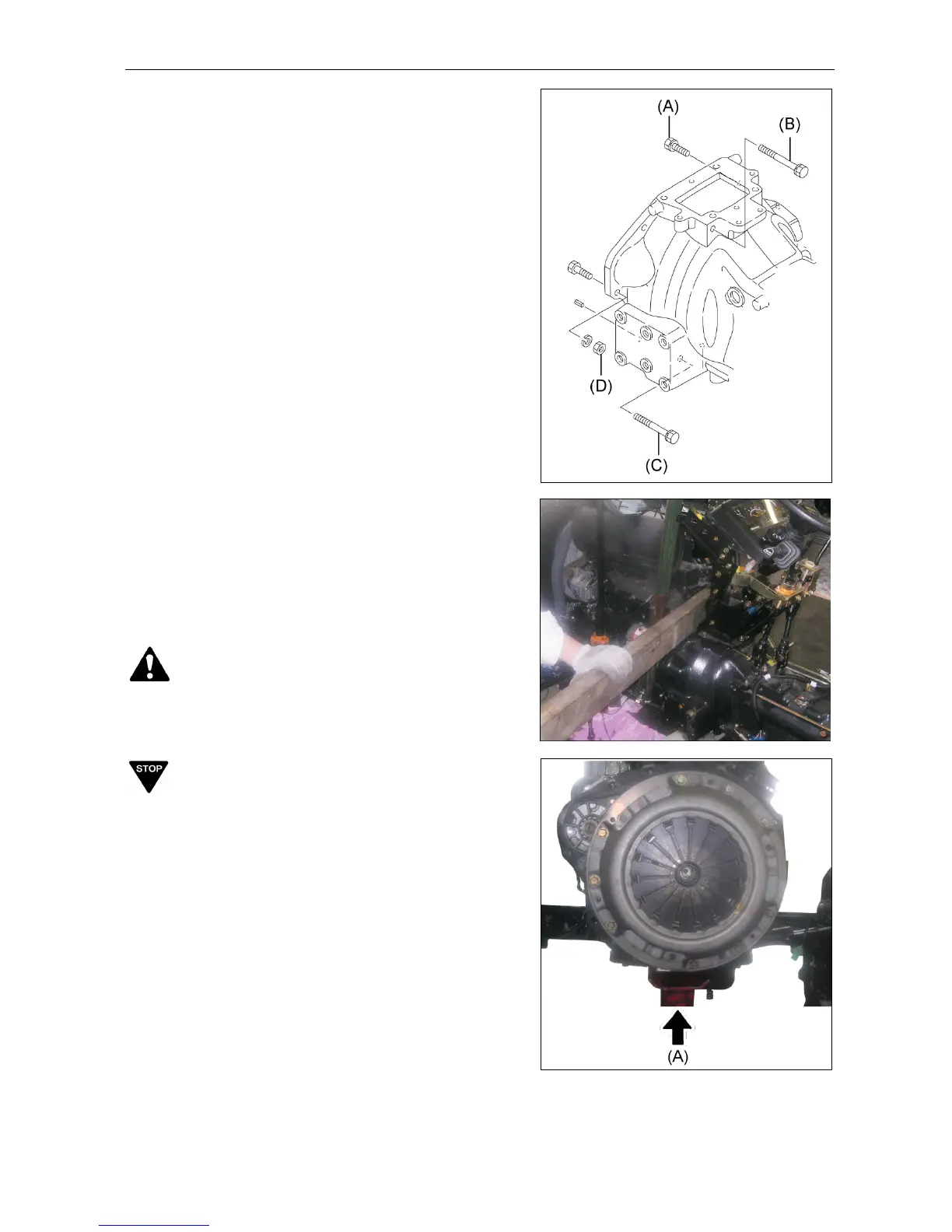

(16) Remove nuts and bolts that connect engine
and clutch housing.
(A) Bolt M12x30: 3 pieces.
(B) Bolt M12x170: 2 pieces.
(C) Bolt M12x100: 2 pieces.
(D) Nut M12: 1 pc.
(17) Separate the engine and the clutch housing.
Note:
If clutch housing adhered to engine by liquid gasket
too strongly, place a piece of wood as right photo
shows and push or tap on it lightly. It will be easy to
separate them.
WARNING
Be careful transmission not to come off supporting
jack. This operation should be done by at least 2
people.
IMPORTANT
After separating, put a rigid stand to section A and
remove the lifting bolt. If not, the lifting bolt may be
deformed and you may not be able to remove it.
To Next Page
