2 DISASSEMBLY OF COMPONENTS 2 DISASSEMBLY OF COMPONENTS
EF494T TM 06/2011 edition

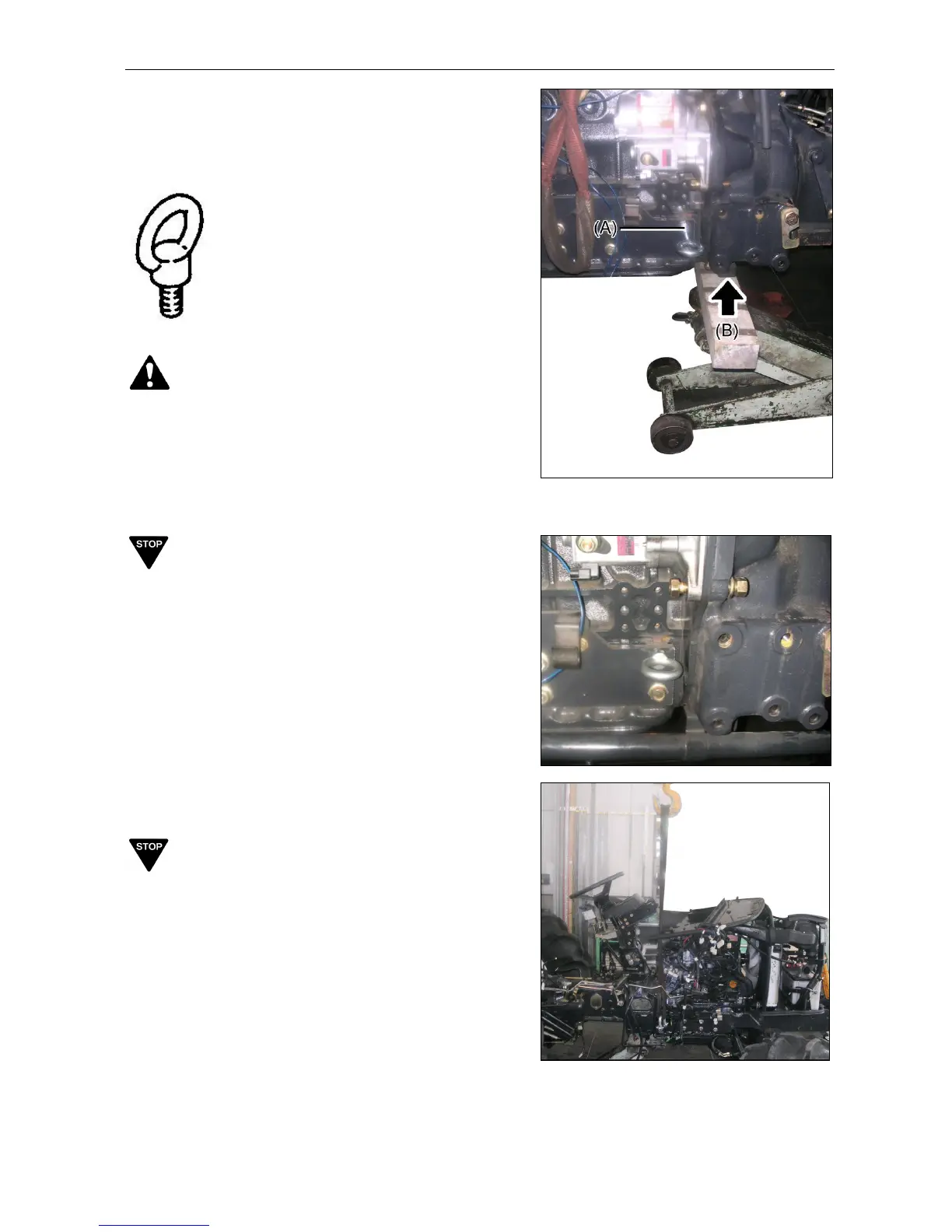

(13) Remove the bolt (A), M12 x 34, on rear end
and upper of front axle bracket, left and right
sides. Install lifting bolt on left and right
sides, as shown in the photo.
Lifting bolt
Bolt size:
Dia. 12mm
DANGER
Screw the lifting bolt all the way into the engine
block side.
When reinstalling the bolt after
reassembling, tighten it securely to the
torque specified below.
167-186 N-m, 17.0-19.0 kgf-m, 123-137 lb-ft
IMPORTANT
If a short lifting bolt is used, the lifting rope may
touch peripheral equipment on the engine and
some damage could occur.
Do not jack up the engine oil pan. The oil pan
may deform and this can cause oil leaks.
(14) Place the jack under the transmission (B),
and raise the jack until the jack is lightly
supporting the transmission.
(15) Lift the engine section to hold original height
or slightly higher.
IMPORTANT
If the engine section is lifted too much, it may
damage or deform parts.
To Next Page
