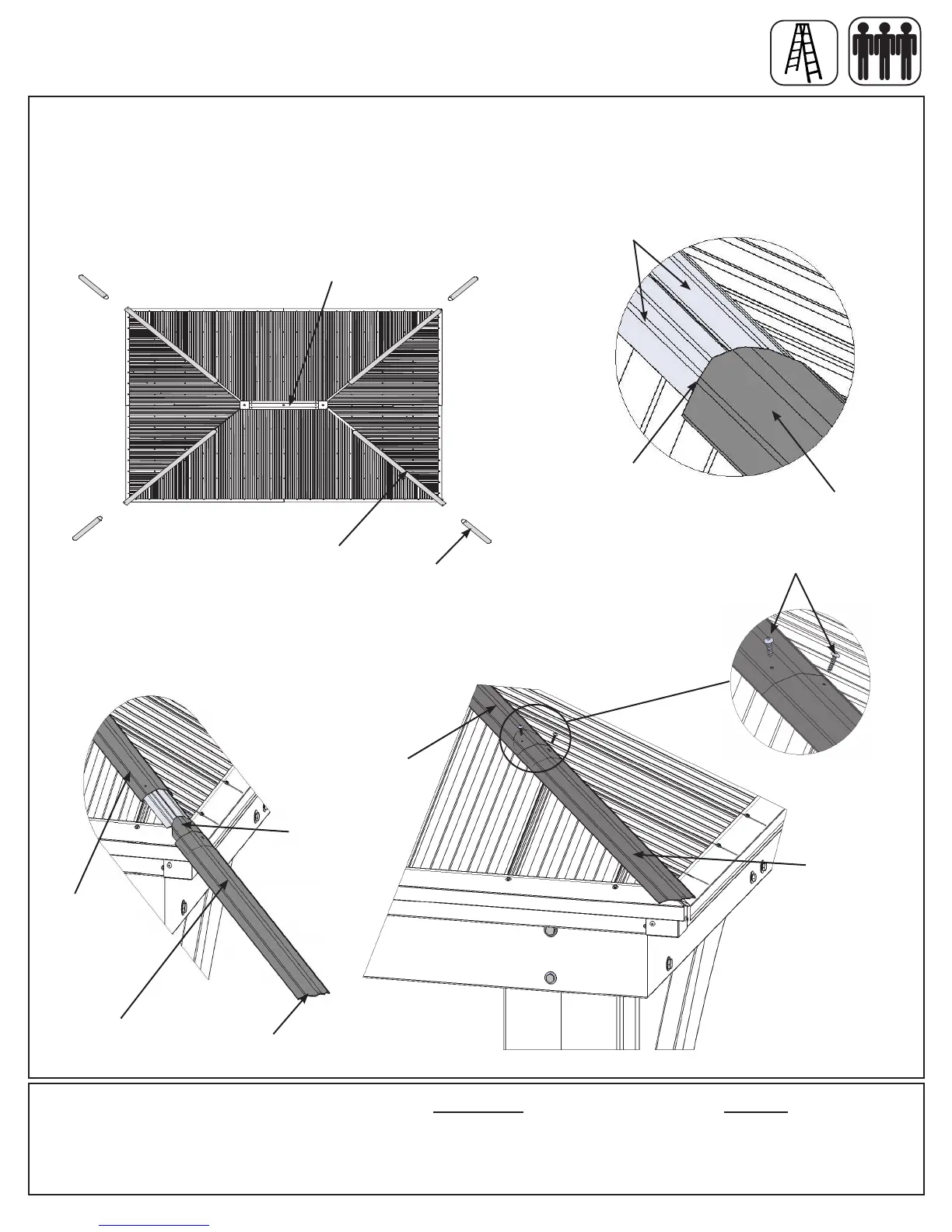

Step 23: Attach Ridge Caps to Roof Panels
A: At each corner, slide one Ridge Cap Long 81.5 over the Ridge Clips, from the bottom up with cut end leading.
(g. 23.1 and 23.2)
B: Slide Ridge Cap Short 25.2 over the Ridge Clips leading with the insert end to push the Ridge Cap Long 81.5
to the top, lifting Peak Cap Assembly so Ridge Cap Long 81.5 t under. Attach with two #8 x 3/4” Sheet Metal
Screws per Ridge Cap set. (g. 23.1, 23.3, 23.4 and 23.5)
Hardware
8 x #8 x 3/4” Sheet Metal Screw
Components:
4 x Ridge Cap Long 81.5
4 x Ridge Cap Short 25.2
Ridge Cap
Short 25.2
Ridge Clip
102.5
#8 x 3/4” Sheet Metal Screw
Fig. 23.1
Fig. 23.3
Fig. 23.4
x 3
Cut End
Note: To help Ridge Caps
slide on easier use a
lubricant such as liquid soap.
Fig. 23.2
Ridge Cap
Long 81.5
Insert End
Fig. 23.5
Peak Cap
Assembly
Folded
End
Ridge Cap
Short 25.2
Ridge Cap
Long 81.5
Ridge Cap
Short 25.2
Ridge Cap
Long 81.5
Ridge Cap
Long 81.5
