YASKAWA 1000 Series Installation Manual

3 Receiving
YASKAWA ELECTRIC TOBP C730600 29G 1000-Series Option JVOP-180 Installation Manual 11

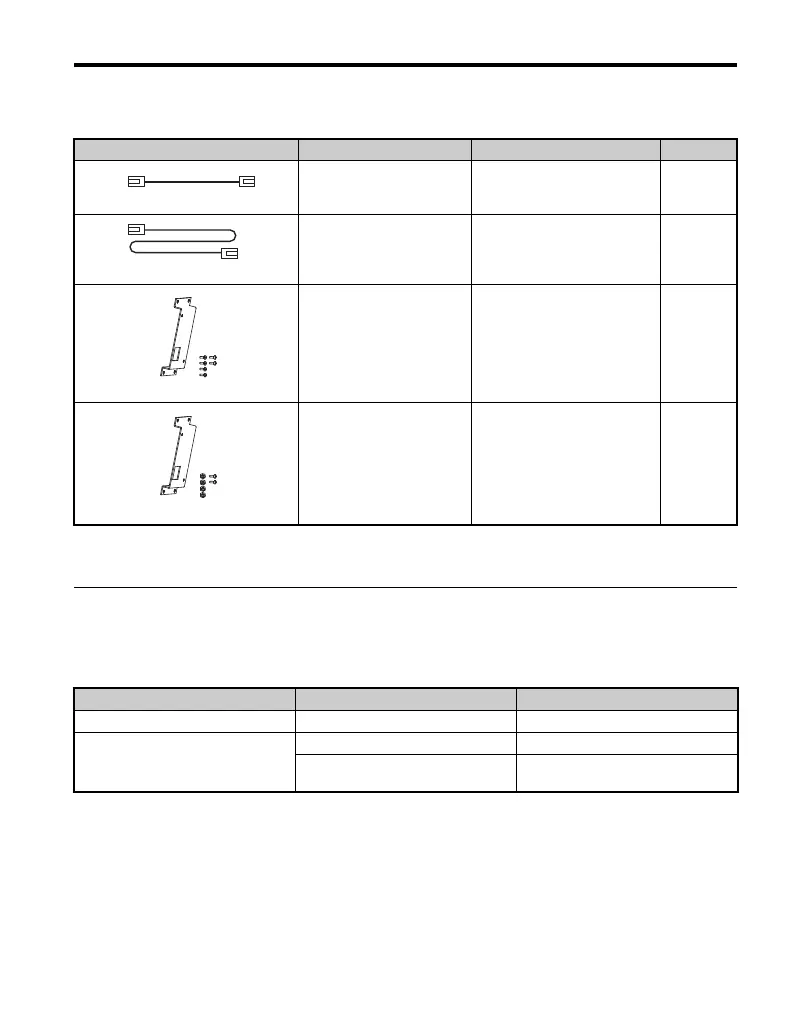

Table 4 Item Names and Part Numbers (Sold Separately)
◆ Tool Requirements
The tools listed in Table 5 are required to install the option on an enclosure panel door.
Table 5 Required Tools
Item Yaskawa Part Number Notes Page
Digital Operator Cable 1 m (3 ft.)
<1>
<1> Digital Operator Cable: Used to connect the digital operator to the drive (sold separately).
<2> Use Installation Support Kit B when weld studs are on the back of the panel.
WV001
Part number for the Americas:
UWR0051
Alternate cables (customer-
supplied), RJ45 8-pin Straight
Connector UTP Cat5e cable
26
Digital Operator Cable 3 m (10 ft.)
<1>
WV003
Part number for the Americas:
UWR0052
Alternate cables (customer-
supplied), RJ45 8-pin Straight
Connector UTP Cat5e cable
26
Installation Support Kit A
EZZ020642A
Sold Separately;
For use with holes through the
panel
25
Installation Support Kit B
<2>
EZZ020642B
Sold Separately;
For use with panel-mounted
threaded studs
25
Installation Location Installation Support Required Tools
External/Face Mount – Phillips screwdriver, M3
Internal/Flush Mount
Installation Support Kit A Phillips screwdriver, M3, M4
Installation Support Kit B
Phillips screwdriver, M3
Box end or adjustable wrench, M4

YASKAWA 1000 Series Specifications

General

Series	1000 Series
Category	DC Drives
Cooling Method	Forced air cooling
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication Interface	Modbus RTU
Storage Temperature	-20°C to +60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Input Voltage	200-240V AC, 380-480V AC
