◆ LCD Display

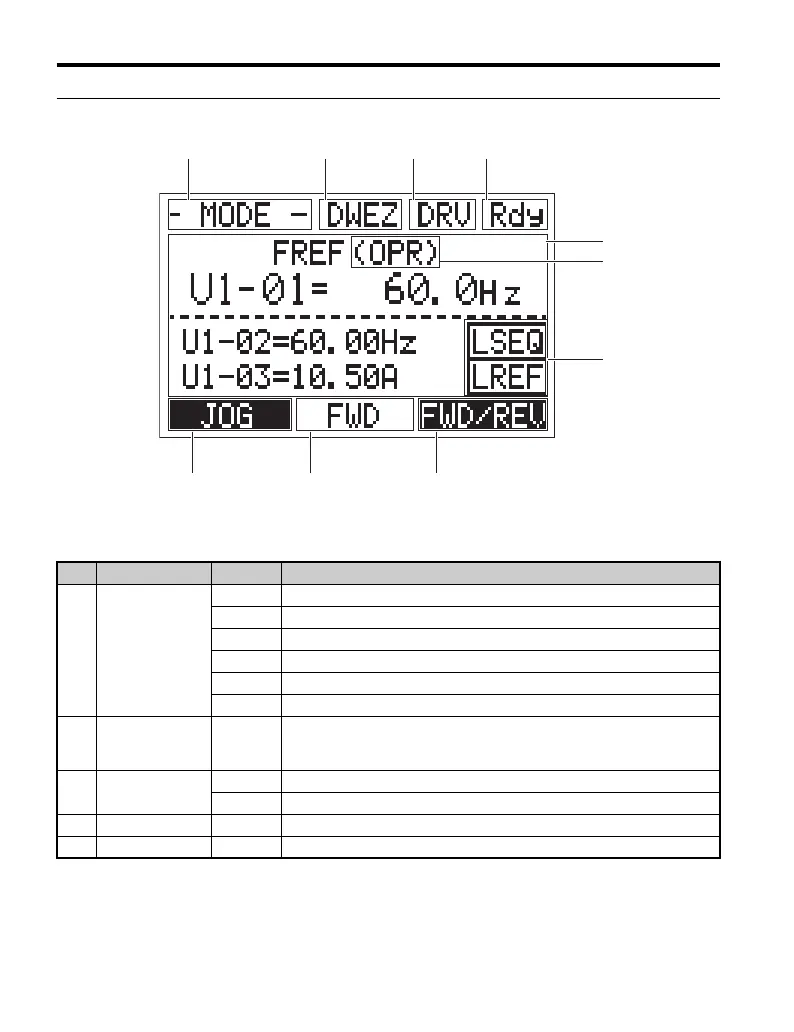

Figure 9
Figure 9 LCD Display
Table 10 Display and Contents
No. Name Display Content
1
Operation Mode
Menus
MODE Displayed when in Mode Selection.
MONITR Displayed when in Monitor Mode.
VERIFY Indicates the Verify Menu.
PRMSET Displayed when in Parameter Setting Mode.
A.TUNE Displayed during Auto-Tuning.
SETUP Displayed when in Setup Mode.
2
DriveWorksEZ
Function Selection
<1>
DWEZ
Displayed when the DriveWorksEZ is set to enable.
(A1-07 = 1 or 2)
3 Mode Display Area
DRV Displayed when in Drive Mode.
PRG Displayed when in Programming Mode.
4 Ready Rdy Indicates the unit is ready to run.
5 Data Display – Displays specific data and operation data.
㪴
7
6
5
1234
1098
