YASKAWA 1000 Series Installation Manual

5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 29G 1000-Series Option JVOP-180 Installation Manual 23

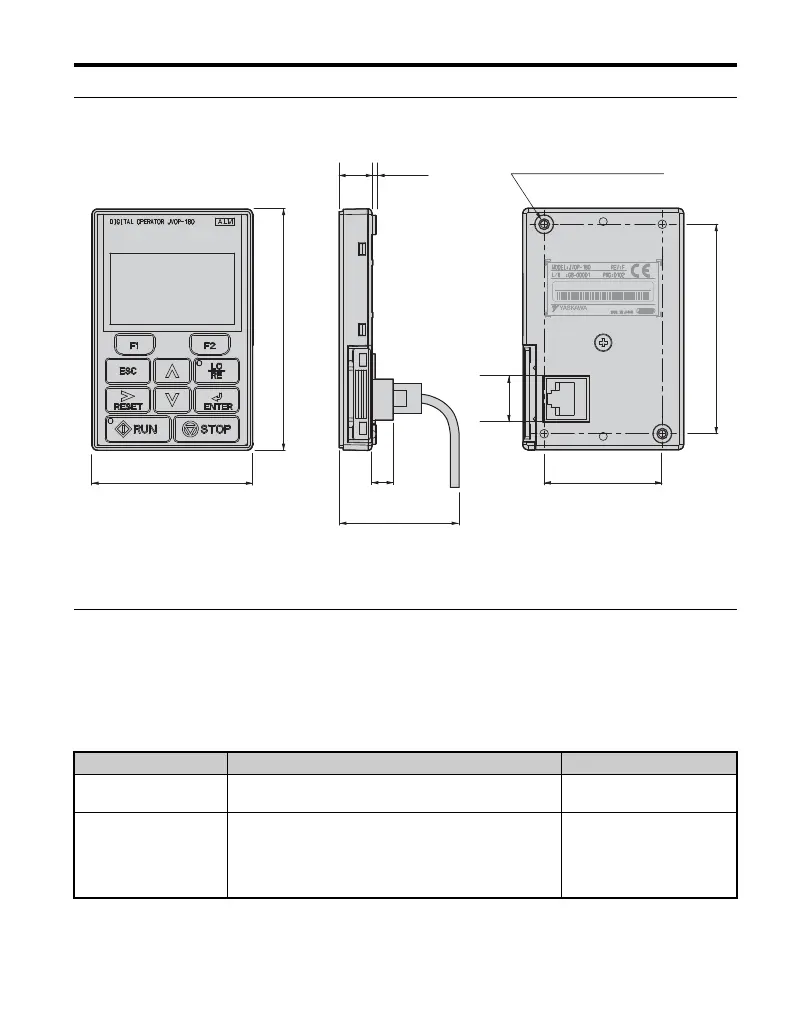

◆ Option Dimensions
Figure 10
Figure 10 Dimensions
<1> Use only Yaskawa cables or cables recommended by Yaskawa. Refer to Item
Names and Part Numbers (Sold Separately) on page 11.
◆ Installing the Option
The option mounts to an enclosure two different ways:
• External/face-mount installs the operator outside the enclosure panel.
• Internal/flush-mount installs the operator inside the enclosure panel.
Table 12 Option Installation Methods
Installation Method Description Notes
External/Face-mount
Simplified installation with the option is mounted on the
outside of the panel with two screws.
–
Internal/Flush-mount
Encloses the option in the panel. The front of the option is
flush with the outside of the panel.
Requires purchase of
separate items. Refer to Item
Names and Part Numbers
(Sold Separately) on
page 11.
<1>
90 (3.54)
78 (3.07)
60 (2.36)
7.9
(0.31)
minimum 50 (1.97) Unit : mm (in.)
12.2
(0.48)
1.6 (0.06)
Installation holes
(2-M3 screws, depth 5 (0.2))
44 (1.73)
15
(0.59)
S / N : J007XE273710001
