YASKAWA 1000 Series Installation Manual

5 Installation Procedure
24 YASKAWA ELECTRIC TOBP C730600 29G 1000-Series Option JVOP-180 Installation Manual
NOTICE: Prevent foreign matter such as metal shavings or wire clippings from falling into the unit during
installation and project construction. Failure to comply could result in damage to the unit. Place a temporary
cover over the top of the unit during installation. Remove the temporary cover before startup, as the cover
will reduce ventilation and cause the unit to overheat.
■ External/Face-mount Installation
1. Cut an opening in the enclosure panel for the option according to Figure 12.
2. Position the option so the LCD display faces outwards, and mount it to the
enclosure panel as shown in Figure 11.

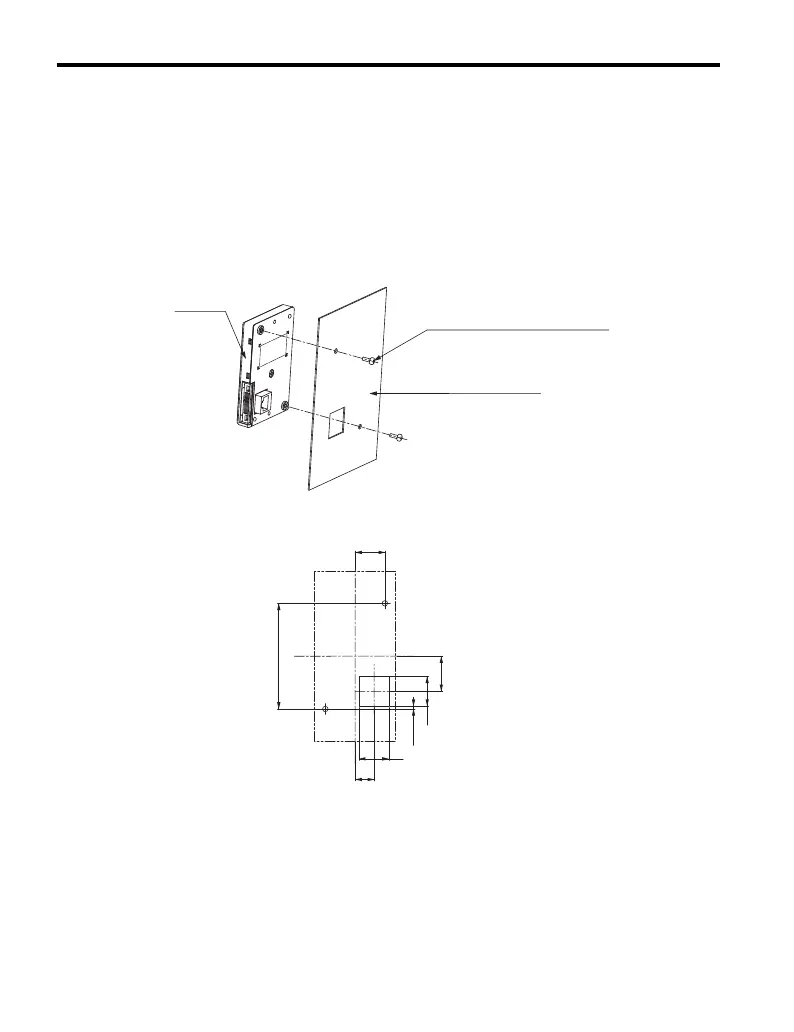

Figure 11
Figure 11 External/Face-mount Installation
Figure 12
Figure 12 Panel Cut-out Dimensions (External/Face-mount Installation)
M3 × 6 (0.24)
Phillips recessed
pan head machine screw × 2
Unit: mm (in.)
Option
Enclosure panel
22 (0.87)
22(0.87)
14
(0.55) Unit: mm (in.)
26
(1.02)
22
(0.87)
78 (3.07)
2 (0.08)
