5 Installation Procedure
26 YASKAWA ELECTRIC TOBP C730600 29G 1000-Series Option JVOP-180 Installation Manual
◆ Connecting the Option to the Unit
This section contains instructions for connecting the option to units.
■ Connecting the Option to V1000
Plug the customer-supplied communication cable into the communication cable connector of
the option and the drive communications port as shown in Figure 15. Ensure both cable
ends are firmly connected. Refer to Item Names and Part Numbers (Sold Separately) on
page 11 for information regarding recommended cables.
Refer to Table 1 for built-in LED display behavior with a connected option.
Note: 1. Use only Yaskawa recommended cables. Using a cable not specified may cause the option or drive to
malfunction.
2. The STOP key on the built-in LED operator of the drive is the only functional key on the drive when the
option is connected and parameter b1-02 is set to 0 (LCD Operator or Option). Set parameter o2-02
(STOP Key Function Selection) to 0 (Disable) to disable the STOP key.

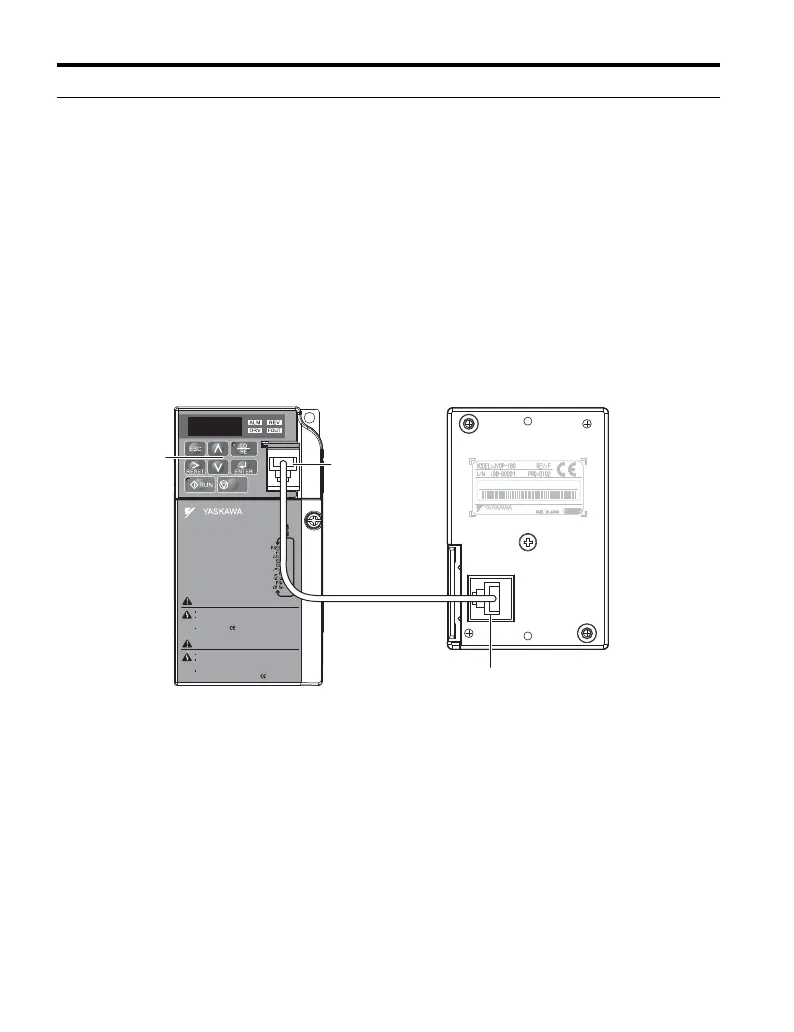

Figure 15
Figure 15 Communication Cable Connection
STOP
V1000
(
Hz
)
(
Hz
)
(
A
)
(
V
)
:
:
:
:
:
:
:
:
:
:
周波数指令
正転逆転選択
出力周波数
出力電流
出力電圧
モニタ
ベリファイ
セットアップ
パラメータ設定
オートチューニング
据え付け、運転の前には必ず取扱説明書を読むこと。
通電中および電源遮断後
5
分以内はフロントカバーを
外さないこと。
400V
級インバータの場合は、電源の中性点が接地
されていることを確認すること。（ 対応）
けが、感電のおそれがあります。
危 険
Read manual before installing.
Wait 5 minutes for capacitor discharge after
disconnecting power supply.
To conform to requirements, make sure
to ground the supply neutral for 400V class.
Risk of electric shock.
WARNING
S / N : J007XE273710001
Comm Port
LED
Operator
Communication Cable Connector
OptionDrive
To Next Page
