5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 29G 1000-Series Option JVOP-180 Installation Manual 27
■ Connecting the Option to A1000, D1000, or R1000
Plug the customer-supplied communication cable into the communication cable connector of
the option and the unit communications port as shown in Figure 15. Ensure both cable ends
are firmly connected. Refer to Item Names and Part Numbers (Sold Separately) on page 11
for information regarding recommended cables.
Note: Use only Yaskawa recommended cables. Using a cable not specified may cause the option or
unit to malfunction.

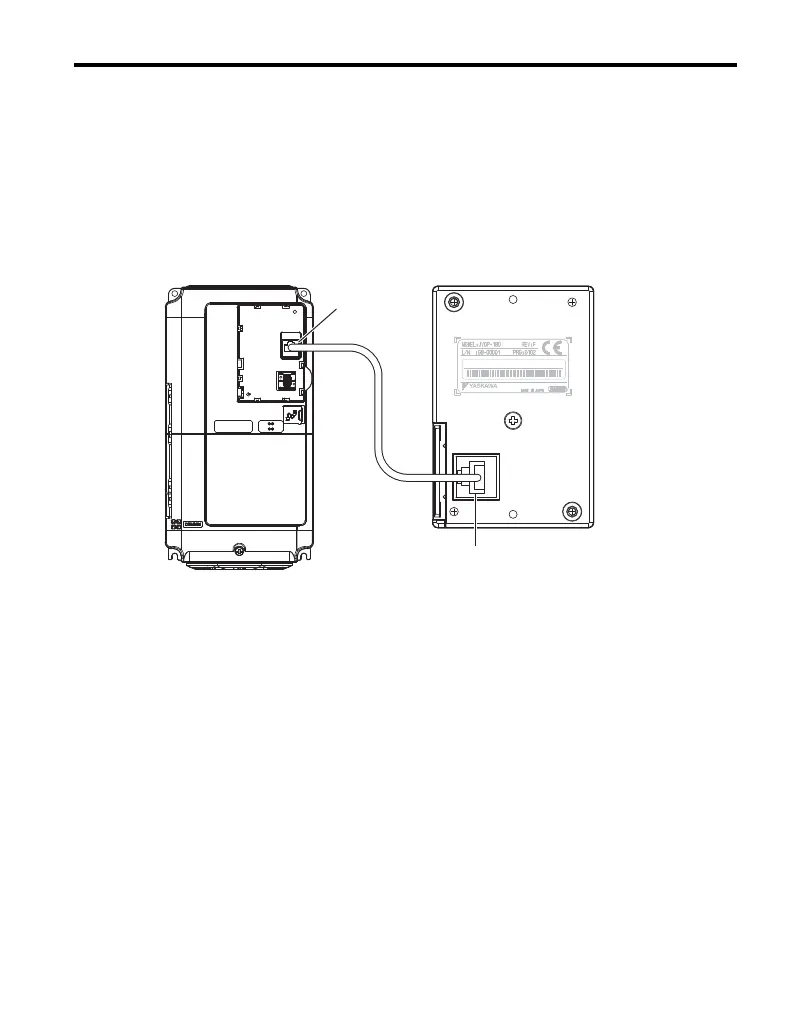

Figure 16
Figure 16 Communication Cable Connection
S / N : J007XE273710001
Comm Port
Communication Cable Connector
OptionUnit

YASKAWA 1000 Series Specifications

General

Series	1000 Series
Category	DC Drives
Cooling Method	Forced air cooling
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication Interface	Modbus RTU
Storage Temperature	-20°C to +60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Input Voltage	200-240V AC, 380-480V AC
