YASKAWA 1000 Series Installation Manual

4 Option Components
14 YASKAWA ELECTRIC TOBP C730600 29G 1000-Series Option JVOP-180 Installation Manual
4 RUN Key Starts the unit and motor.
5 Up Arrow Key
Scrolls up to display the next item, selects parameter numbers and
increments setting values.
6
Down Arrow
Key
Scrolls down to display the previous item, selects parameter numbers and
decrements setting values.
7STOP Key
Stops unit operation.
Note: The STOP key can be enabled or disabled when operating from the
external terminal or network communications by setting parameter o2-02.
8ENTER Key
• Enters parameter values and settings.
• Selects a menu item to move between displays.
9
LO/RE
Selection Key
Switches unit control between the operator (LOCAL) and an external
source (REMOTE) for the Run command and frequency reference.
Note: The LOCAL/REMOTE key is only effective when the unit is
stopped in Drive Mode. As a safety precaution, it is possible to disable the
LO/RE Selection Key by setting parameter o2-01 (LOCAL/REMOTE
Key Function Selection) to 0 (disabled).
10 RUN Light
Illuminated during an operation.
Refer to Option LED Status Indicators on page 15 for details.
11 LO/RE Light Illuminated while the option is selected to run the unit (LOCAL mode).

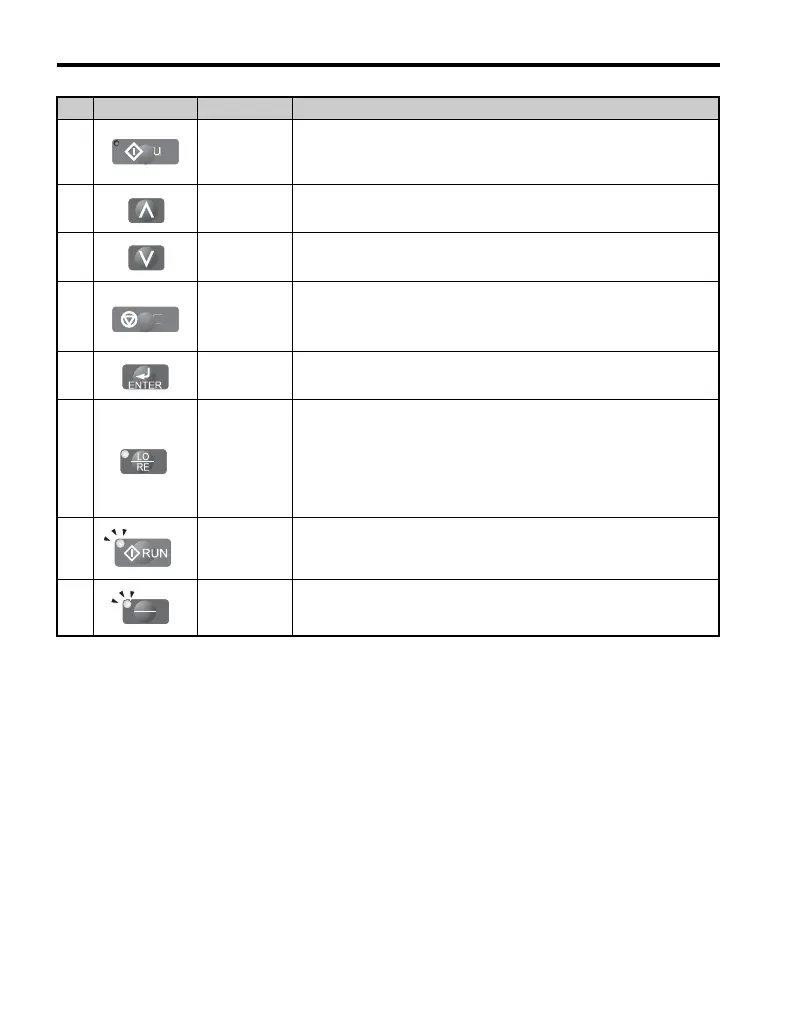

No. Key Name Function
R
R
U
U
N
S
T
T
O
O
TO
TO
P
RE
LO
