YASKAWA 1000 Series Installation Manual

6 Basic Operation
32 YASKAWA ELECTRIC TOBP C730600 29G 1000-Series Option JVOP-180 Installation Manual

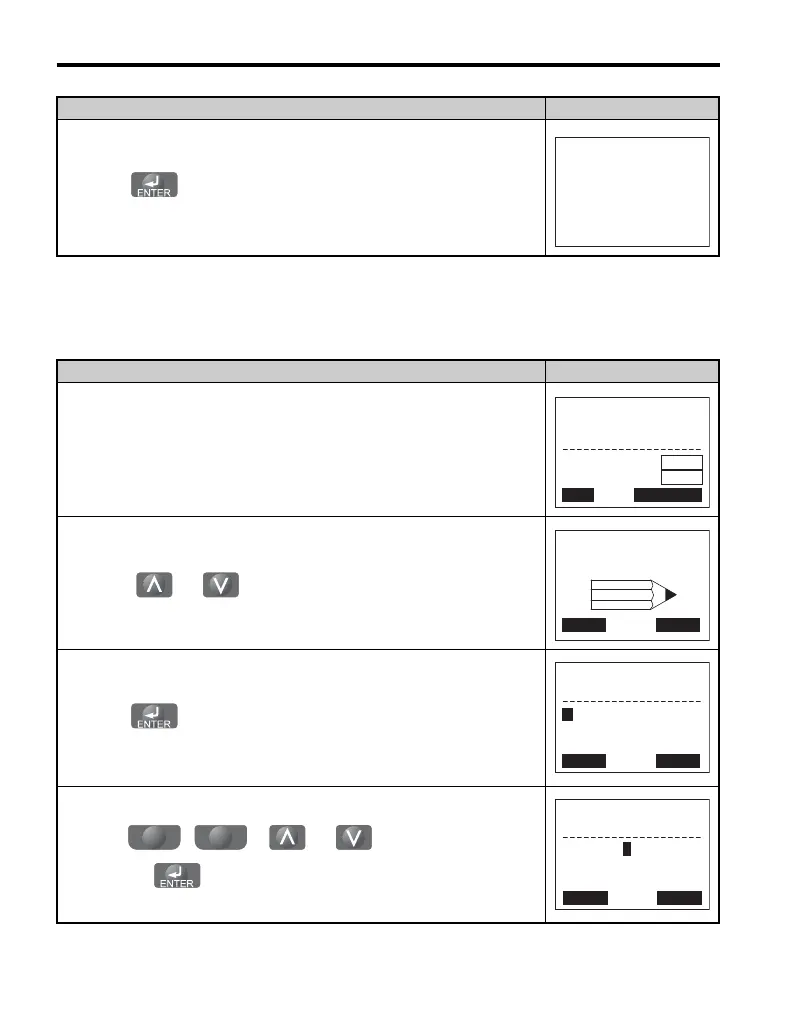

Procedure Example: Setting Parameters
The example below explains how to change the Deceleration Time parameter C1-01 to 20.0
sec from the default setting of 10.0 sec.
6. Press and the option will display Japanese.
Procedure LCD Display
1. Frequency Reference display.
2. Press to select the Programming Mode.
3. Press to show the Initialization display.
4. Press to select parameter C1-01
and press .
Procedure LCD Display
䉦䉨䉮䊚㩷䉦䊮䊥䊢䉡
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF(OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
HELP
-MODE- PRG
DATA
Programming
FWD
←→
-PRMSET-
Initialization
Select Language
PRG
FWD
A1-00=0
F1 F2
-PRMSET-
C1-01= 0010.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Accel Time 1
←→
FWD
