6 Basic Operation
42 YASKAWA ELECTRIC TOBP C730600 29G 1000-Series Option JVOP-180 Installation Manual
Read/Copy Function Procedure
•Read
Reads and saves parameter settings from the converter to the option.
Note: The option can perform the Read function an estimated 100,000 times.
• Copy
Copies parameter settings from the option to another Yaskawa converter.
These parameters control the Copy function of the digital operator. The Copy function
stores parameter settings into the memory of the digital operator to facilitate the transfer
of those settings to other converters that are the same model, capacity, and same control
mode setting.
Note: Parameter settings can only be copied to other converters that are the same model, capacity, and
have the same control mode setting.
•Verify
Verifies that parameter settings in the converter match the parameter settings saved to the
option.
The following procedure is used to read parameters from the converter.
Note: Set parameter o3-02 (Read Allowable) to 1 (Enable) to read the parameter settings from the
converter.
Set parameter o3-02 to 0 (Disable) to protect the parameter settings in the option.

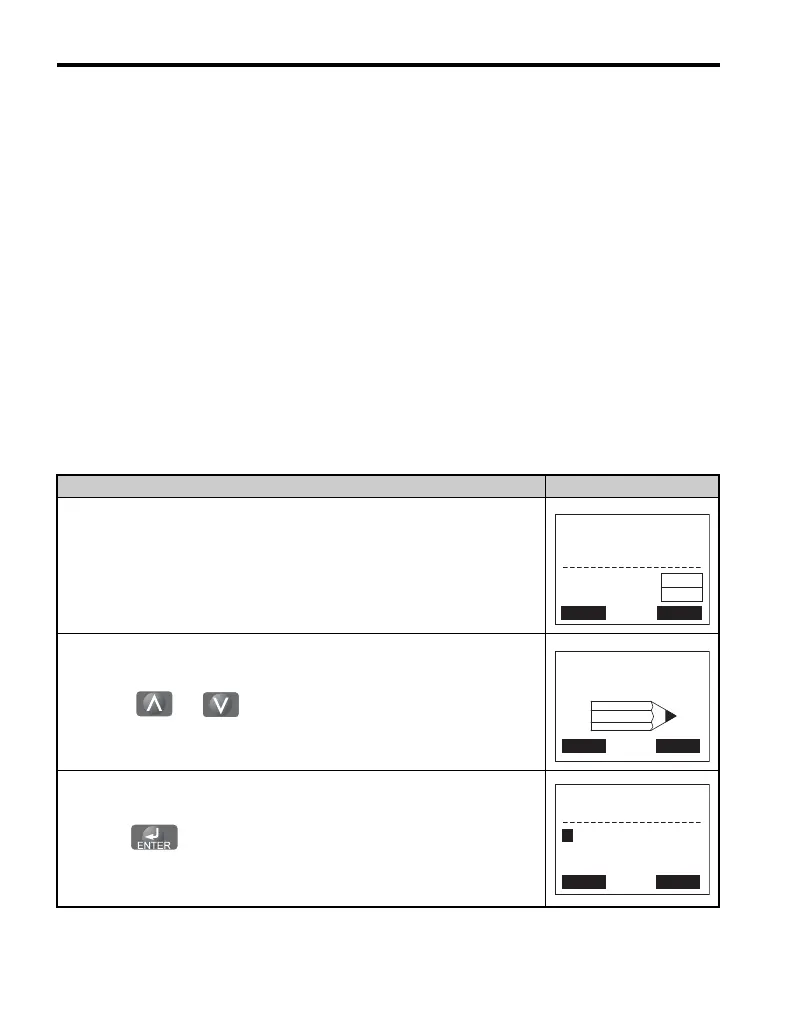

Procedure LCD Display
1. DC Bus Voltage Reference display.
2. Press to select the Programming Mode.
3. Press to show the Initialization display.
- MODE -
U1-51= 0330V
U1-52= 295V
U1-53= 0.0A
DRV
Volt Ref
Rdy
LSEQ
LREF
HELP
-MODE- PRG
DATA
Programming
←→
-PRMSET-
Initialization
Select Language
PRG
A1-00=0
To Next Page
