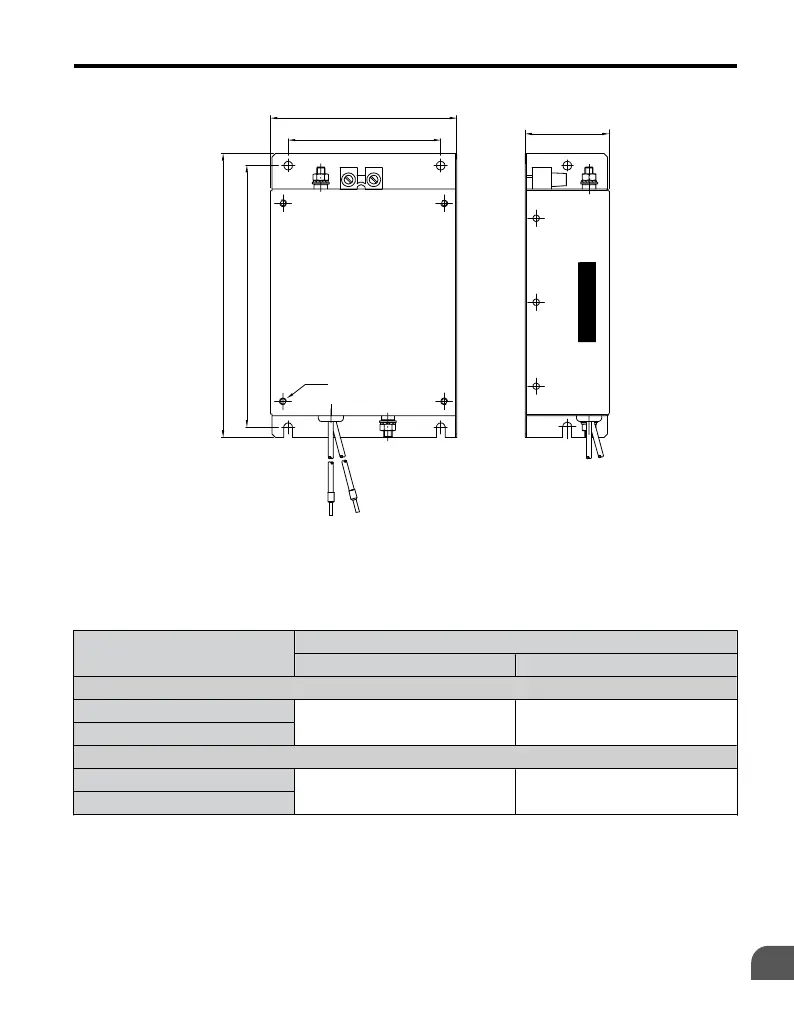

Figure C.5 EMC Filter Dimensions
n
DC Reactors for IEC/EN 61000-3-2 Compliance
Table C.6 DC Reactors for Harmonics Reduction
Drive Model
DC Reactor
Model Rating
200V Three-Phase Units
2A0004
UZDA-B
5.4 A
8 mH
2A0006
400 V Three-Phase Units
4A0002
UZDA-B
3.2 A
28 mH
4A0004
Note: Models not listed in the above table do not require a DC reactor for EMC compliance.
