3.8 I/O Connections
u
Sinking/Sourcing Mode Switch
Set the DIP switch S3 on the
front of the drive to switch the digital input terminal logic between
sinking mode and sourcing mode; the drive is preset to sinking mode.
Table 3.10 Sinking/Sourcing Mode Setting
Set Value Details
SINK Sinking Mode (0 V common): default setting
SOURCE Sourcing Mode (+24 V common)
SINK
SOURCE
DIP Switch S3

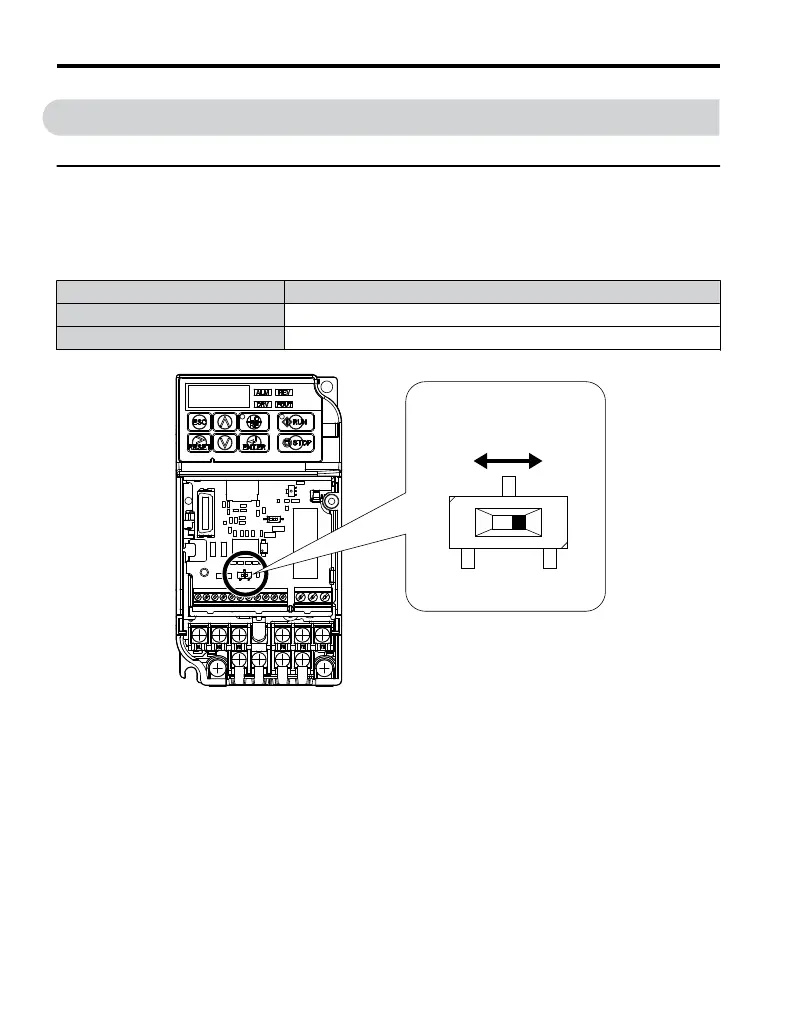

Figure 3.16 DIP Switch S3
