n
Single-Phase AC 200 V BA0006B to BA0010B
Three-Phase AC 200 V 2A0008B to 2A0020B
Three-Phase AC 400 V 4A0001B to 4A0011B
L
A
B
C
D
F
K
J
I
E
G
H
A – Mounting hole
B – Heatsink
C – Cable cover
D – Terminal cover
E
– Bottom cover
F – Front cover screw
G – Option connector cover
H – Front cover
I – LED operator Refer to
Using the Digital LED
Operator on page 79
J – Case
K –
Cooling fan
<1>
L –
Fan cover
<1>

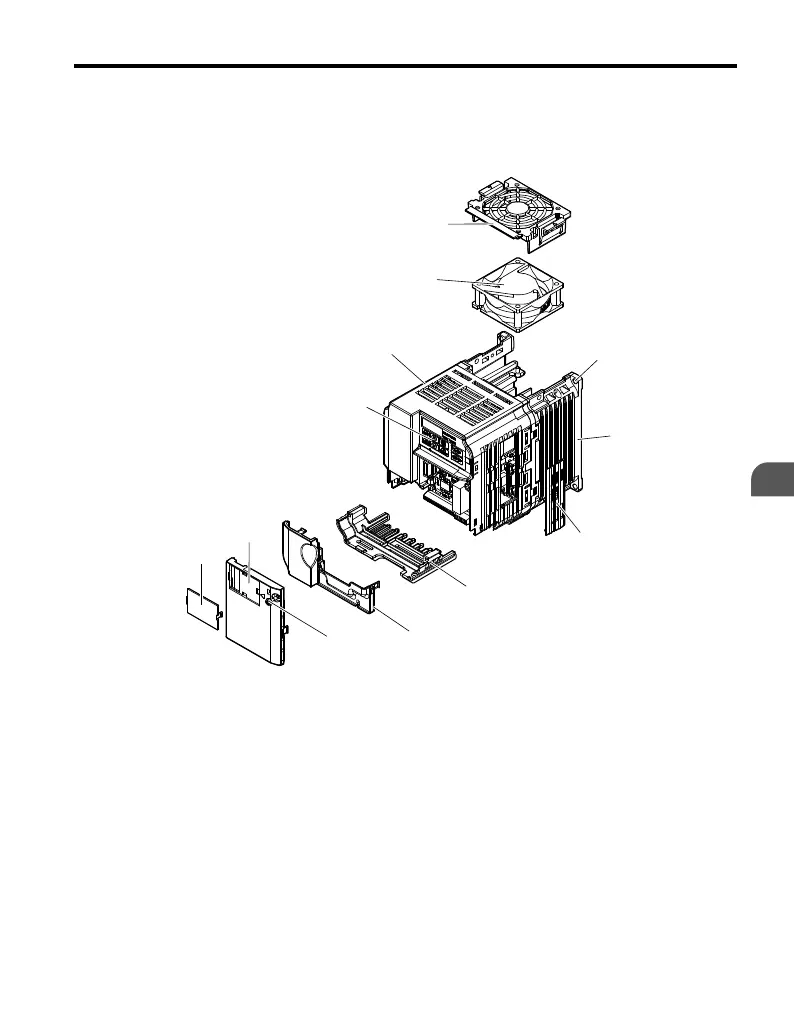

Figure 1.3 Exploded view of IP20/Open-Chassis Type Components
(Model 2A0012B)
<1> Models
BA0006B and 4A0001B to 4A0004B do
not have a cooling fan or a cooling fan cover.
1.3 Component Names
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
27
1
Receiving
