1.4 T-Type Iron Core

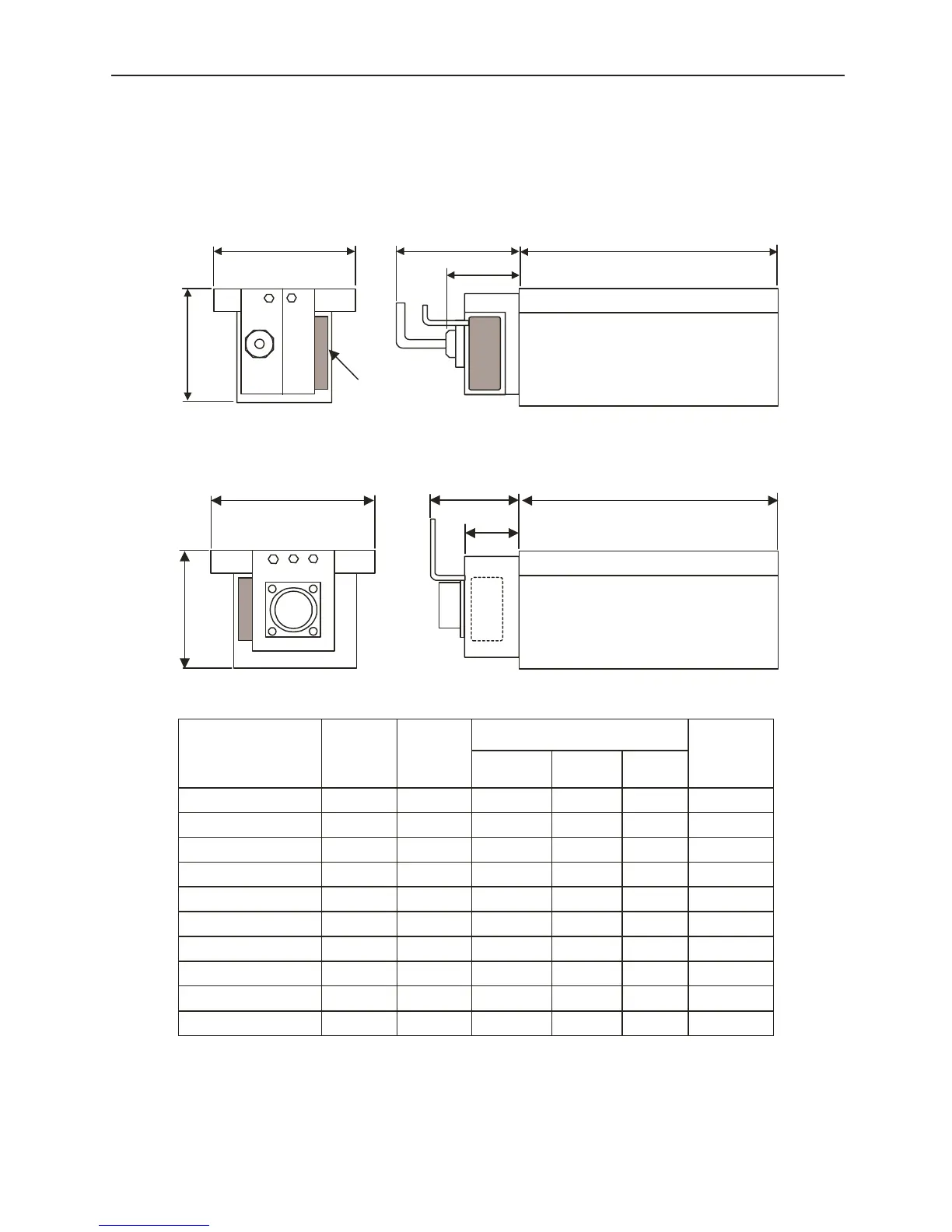

■ Motor Coil
Type: SGLTW-20A □□□ A(P), SGLTW -35A □□□ A(P)
Type: SGLTW-40A □□□ A(P), SGLTW -80A □□□ A(P)
Model
SGLTW-
Max.
Thrust
(N)
Cont.
Thrust
(N)
External Dimensions (mm)
Mass
(kg)
L W H
20A170A(P)
380 130 170 100 51 2.6
20A320A(P)
760 250 315 100 51 4.8
20A460A(P)
1140 380 460 100 51
７
35A170A(P)
660 220 170 100 66 3.7
35A320A(P)
1320 440 315 100 66 6.8
35A460A(P)
2000 670 460 100 66 10
40A400A(P)
2000 670 395 150 78 20
40A600A(P)
3000 1000 585 150 78 30
80A400A(P)
4000 1300 395 150 115 30
80A600A(P)
6000 2000 585 150 115 43
LMin. 100
50
W
H
Hall
Sensor
L
40
Min. 64
W
H
