30 Working with MotoAdmin

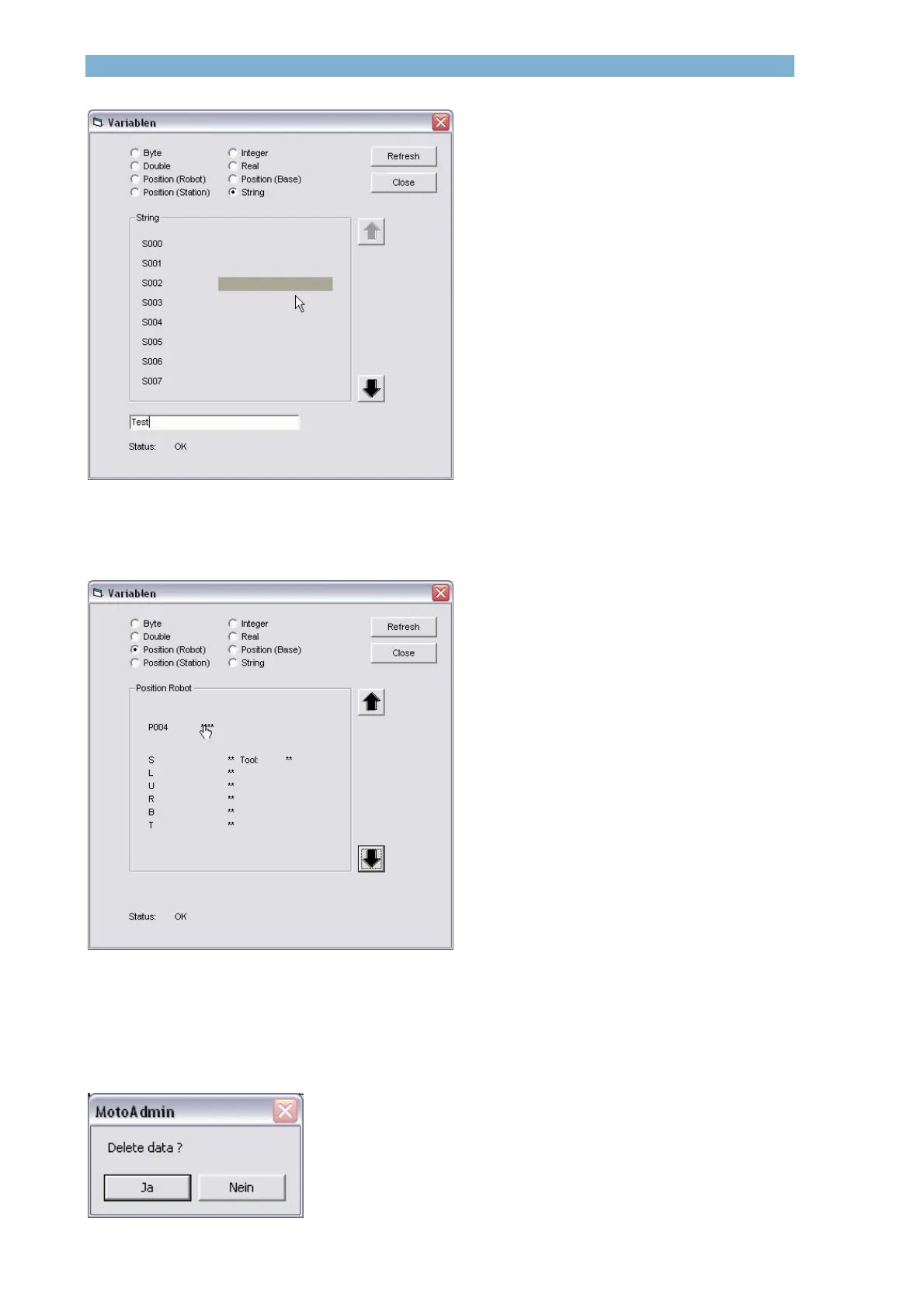

Figure 20 Edit variables
If a position variable is not yet initialized asterisks will appear instead of the values.
Figure 21 Initialization of position variables
Position variables can be initialized by clicking on the type of the variable (****, Pulse, Ro-
bot, Base etc.). If a position variable is reinitialized the old values get lost. The following
message appears:
22.08.2011 Yaskawa Europe GmbH
