8 Introduction
1 Introduction
MotoAdmin is a software for controlling Motoman Yasnac XRC, NX100 and DX100 control-
lers from remote side.
MotoAdmin runs on Windows PC with Windows2000/XP operating systems. Connection to
robot controller is possible directly via serial interface, using com server device or Ethernet
interface (recommended). The necessary hardware is not part of MotoAdmin.

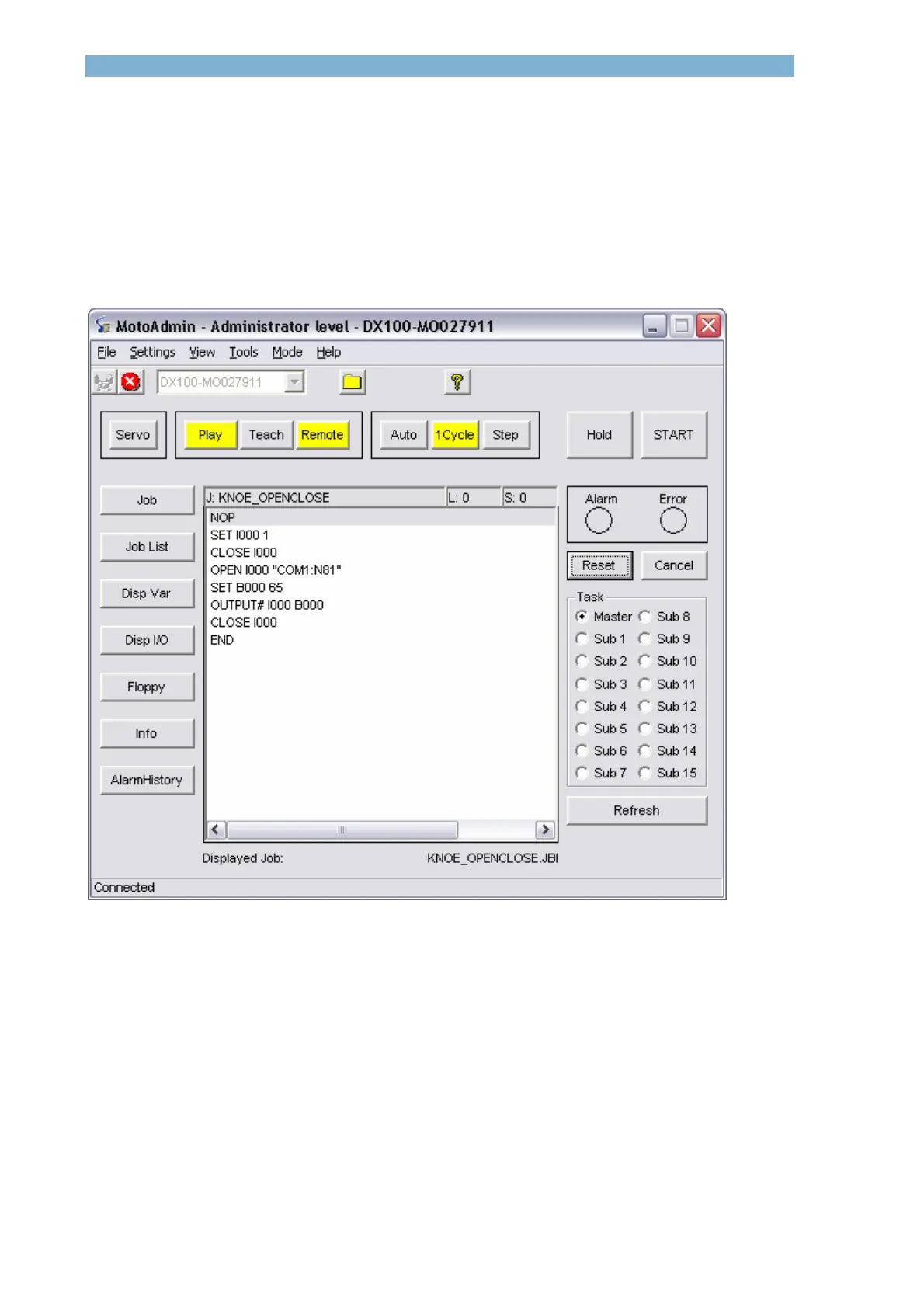

Figure 1 Main window MotoAdmin
To get the full functionality of MotoAdmin, the robot controller must run in „CommandRe-
mote“ mode.
MotoAdmin supports the following functions:
► File access, loading, saving and deleting of job files is possible. System data handling is
limited.
► Backup profiles for One-Button-Backups can be used.
► Displaying and editing of global variables.
► Displaying of I/O signals (changing output signals is possible with modified ladder pro-
gram).
22.08.2011 Yaskawa Europe GmbH
