2.6 Communications with a Mitsubishi PLC (A-compatible 1E Frame protocol)
Using Automatic Reception with the MP3000 as a Slave
2-99
Ethernet Communications
Setting Example

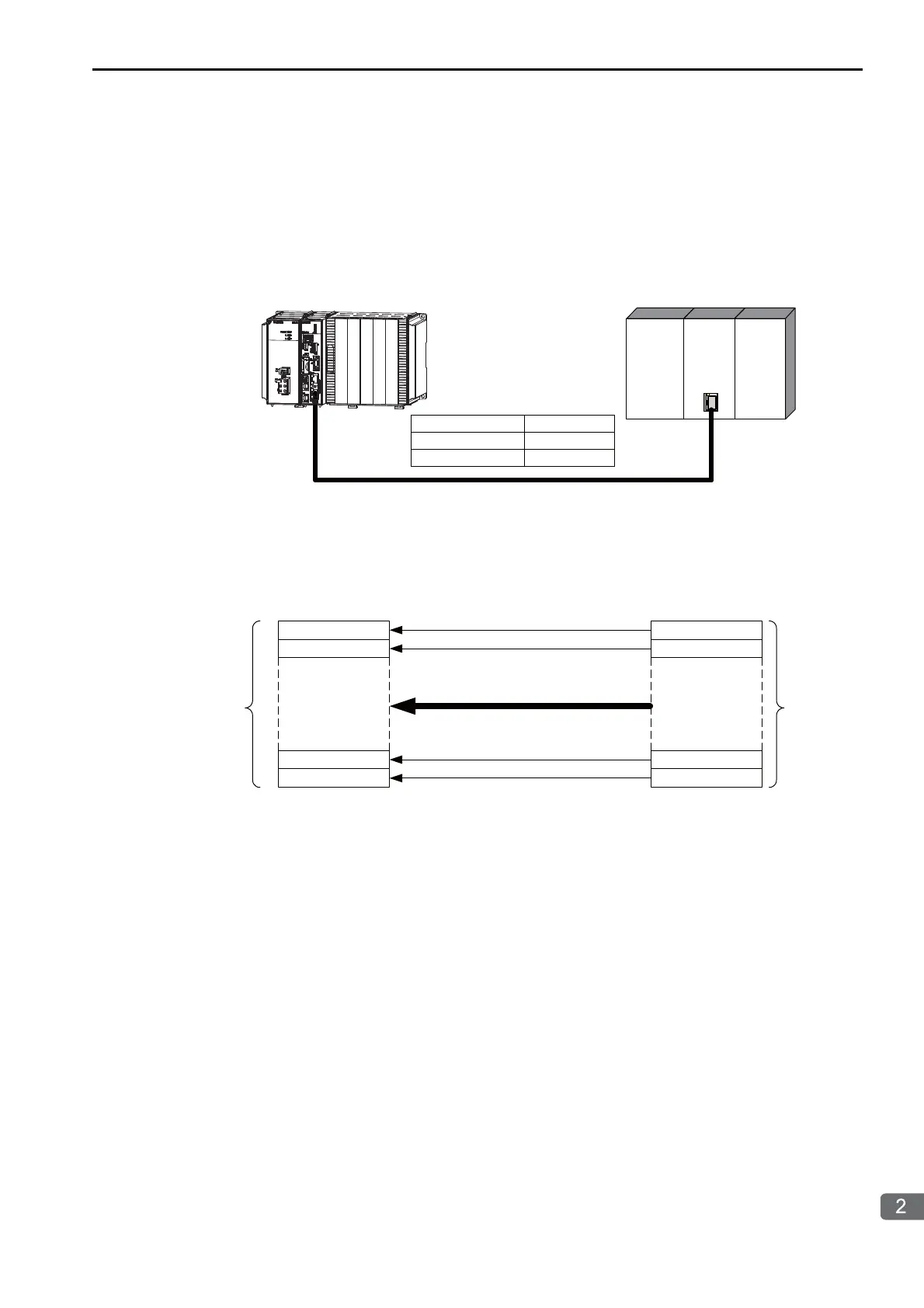

The following figure illustrates how the contents of the D00201 to D00300 data registers in the Mitsubishi
Q/A-series PLC master are written to the MW00000 to MW00099 hold registers in the MP3000 slave.
TCP
MW00000
Ethernet
Ethernet
MW00001
MW00099
D00201
D00202
D00300
MW00098 D00299
MP3000
(local station)
Mitsubishi
MELSEC
Q/A-series PLC
Port number: 10001
Local Station
Remote Station
Data registers (D registers)
Written.
Hold registers (M registers)
Port number: 10001
(remote station)
IP address: 192.168.001.002
IP address: 192.168.001.001
Slave
Data size:
100 words
Data size:
100 words
Master
Communications Protocol
Connection Type
Data Code
A-compatible 1E Frame
Binary
