2.5 Communications with a Touch Panel
Using Automatic Reception with the MP3000 as a Slave
2-90
2.5
Communications with a Touch Panel
When using Ethernet communications between the MP3000 and a Touch Panel from Digital Electronics
Corporation, use the Extended MEMOBUS protocol as the communications protocol. The Extended
MEMOBUS protocol allows the master to read and write the slave registers.
This section describes communications when the MP3000 acts as a slave.
Using Automatic Reception with the MP3000 as a Slave
This section describes how to communicate with a Touch Panel from Digital Electronics Corporation by
using automatic reception.
Note: You can also use the MSG-RCVE function to communicate.
For information on the communications settings for using the MSG-RCVE function, refer to the following section.
2.4 Communications with MP-series Controllers
Using the MSG-SNDE Function with the MP3000 as the Master
(page 2-51)

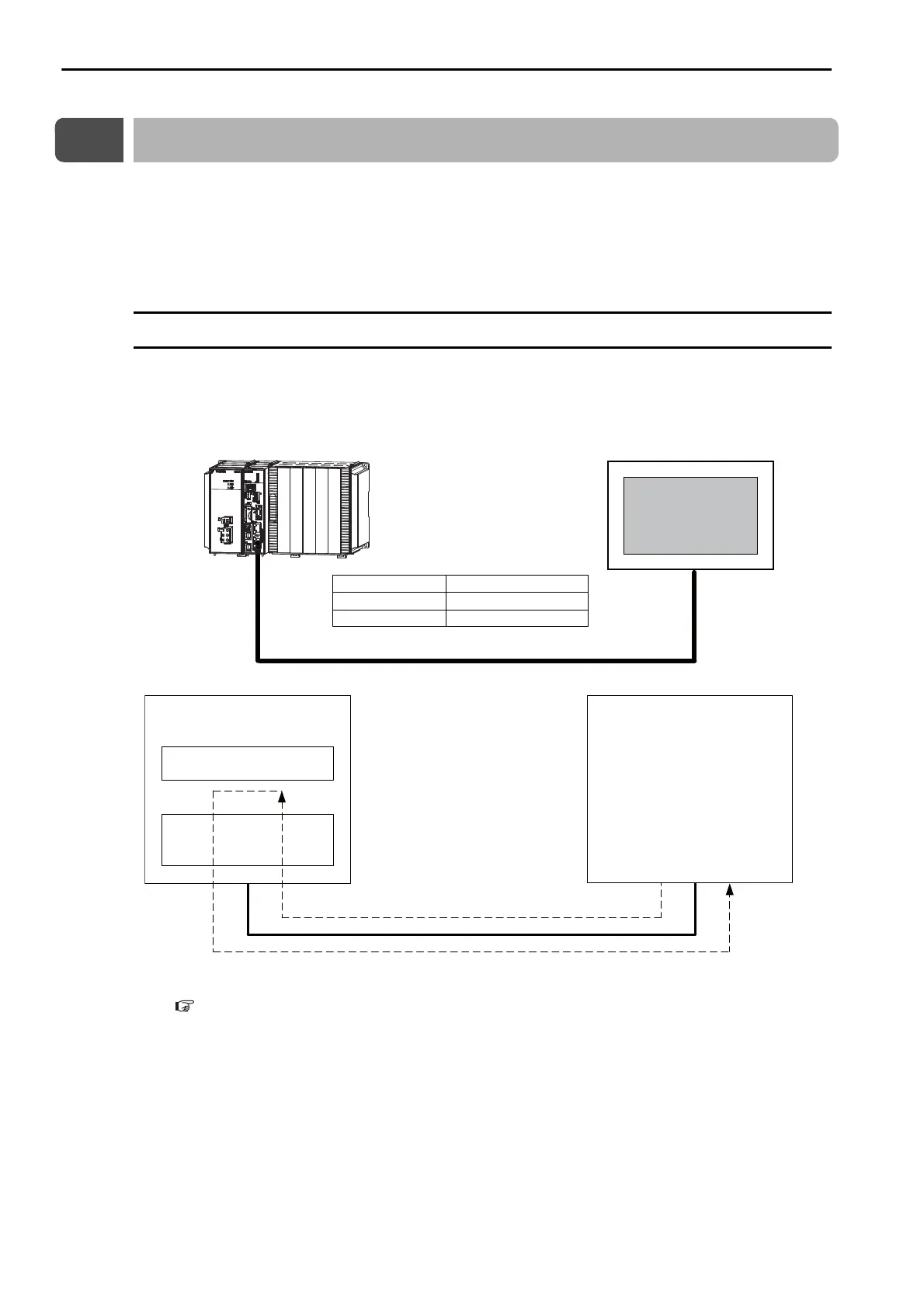

EthernetEthernet
MP3000
218IFD
MP3000
(local station)
Slave
Master
Communications Protocol
Extended MEMOBUS protocol
Connection Type
TCP or UDP
Data Code
Binary or ASCII
Automatic reception
(no ladder programming)
GP3000-series
Touch Panel
Extended MEMOBUS protocol
Touch Panel
(remote station)
