2.10 Communications with a JTEKT PLC (TOYOPUC Protocol)
Using the MSG-SNDE Function with the MP3000 as the Master
2-280
Using the MSG-SNDE Function with the MP3000 as the Master
This section describes how to communicate with a JTEKT PLC by using the MSG-SNDE function.
When a JTEKT PLC is used as the master to read data from the file memory in the 2PORT-EFR, you will
need to create a ladder application that uses the SPR instruction.

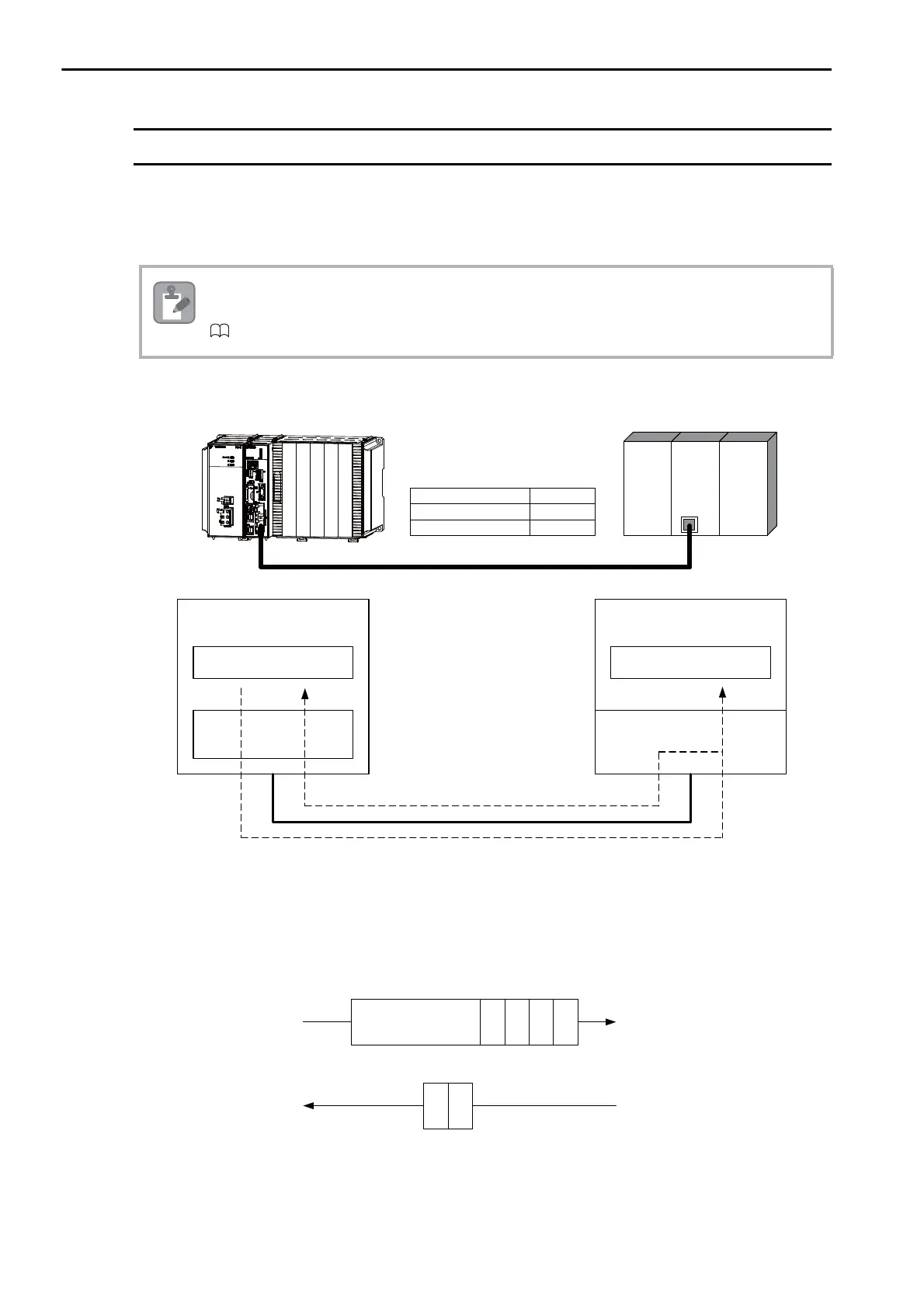

Communications Format
The MP3000 acts as a master and sends data and receives responses using the communications formats for
file memory commands that are shown below. Execution of the MSG-SNDE function ends when the
response is received.
Note: In the figure shown above, the Ethernet header, TCP/UDP header, FCS and other items have been omitted. Only the data
portion of the communications format is shown.
The SPR instruction is used to read data from the file memory in the 2PORT-EFR.
Refer to the following manual for details.
Manual for the 2PORT-EFR Module from JTEKT Corporation
Note
MP3000
218IFD
Ethernet
TOYOPUC
Ethernet
2PORT-EFR
Binary
TOYOPUC
MP3000
(local station)
MSG-SNDE function
(ladder application)
SPR instruction
(ladder application)
TOYOPUC protocol
(file memory communications)
JTEKT PLC TOYOPUC
(remote station)
Master
Communications Protocol
Connection Type
TCP or UDP
Data Code
Slave
6
0
(FT)
0
0
L
L
L
H
E
0
(FT)
R
C
Master
MP3000
(local station)
Hold registers (M registers)
Send data
Command
Slave
2PORT-EFR
Module
(remote station)
File memory
Response
