2.2 Detail Definition Setting Procedures
218IFD Detail Definition Dialog Box Details
2-7
Items 1 and 2 display the configuration information for the 218IFD Function Module. This is the same
configuration information that appears in the Module Configuration Definition Tab Page.
Circuit No.
The circuit number of the Ethernet port on the 218IFD is displayed here.
Start - End Register Range for the I/O Registers
The I/O register range of the 218IFD Function Module is displayed here.
218IFD Detail Definition Dialog Box Details

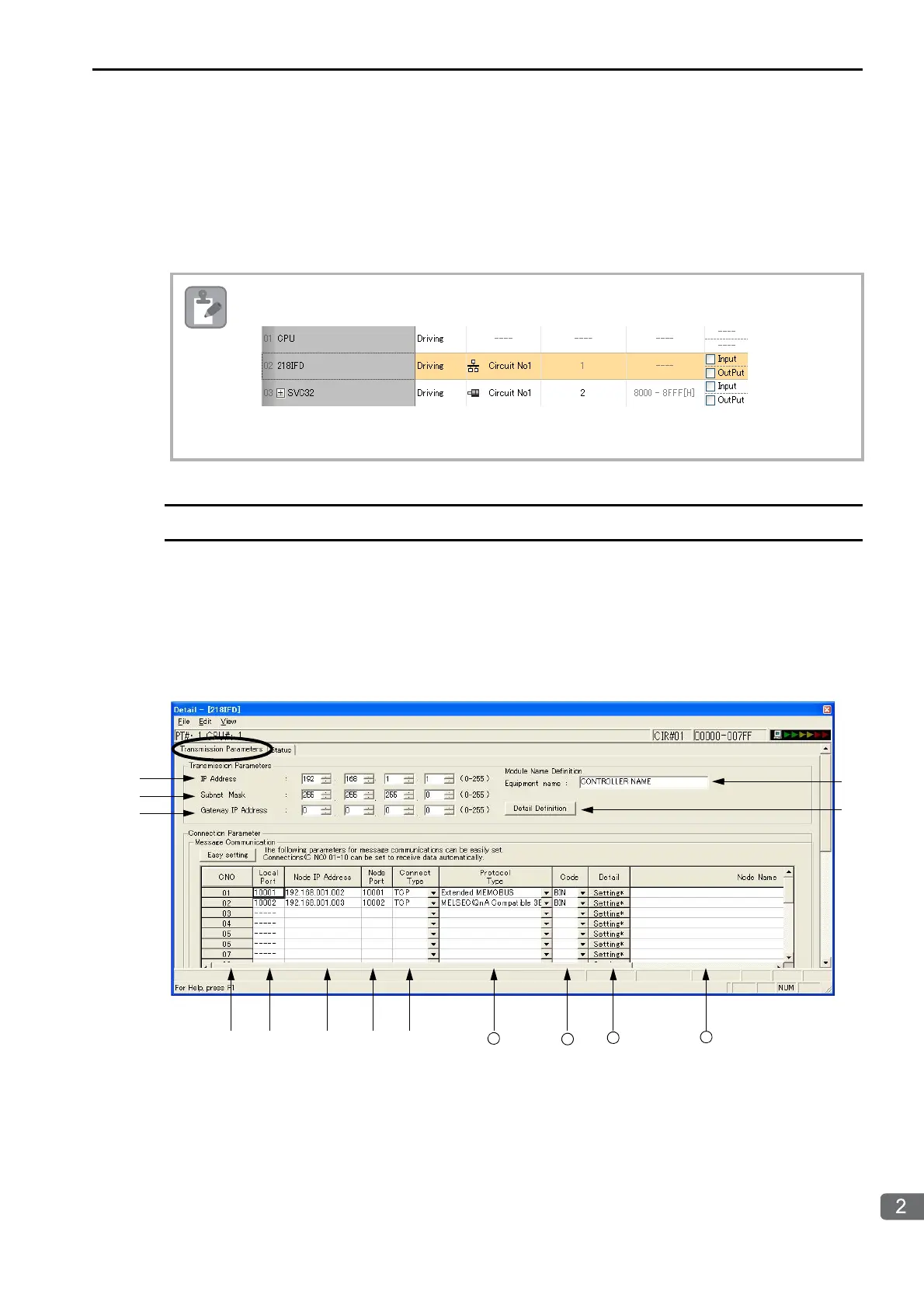

The 218IFD Detail Definition Dialog Box has two tab pages, Transmission Parameters and Status. Each
tab page is displayed by clicking the corresponding tab.
Transmission Parameters Tab Page
This tab page is used to set the parameters that are required to use Ethernet communications.
1. The module configuration information can also be changed in the Module Configuration Definition Tab
Page. If you do so, specify a circuit number that is not in use by other Ethernet Modules (218IF/218IFB).
2. If you use the MSG-SNDE or MSG-RCVE function, set the circuit number input parameter (CIR#)
to the circuit number that is displayed here.
