2.10 Communications with a JTEKT PLC (TOYOPUC Protocol)
Using the MSG-RCVE Function with the MP3000 as a Slave
2-270
Using the MSG-RCVE Function with the MP3000 as a Slave

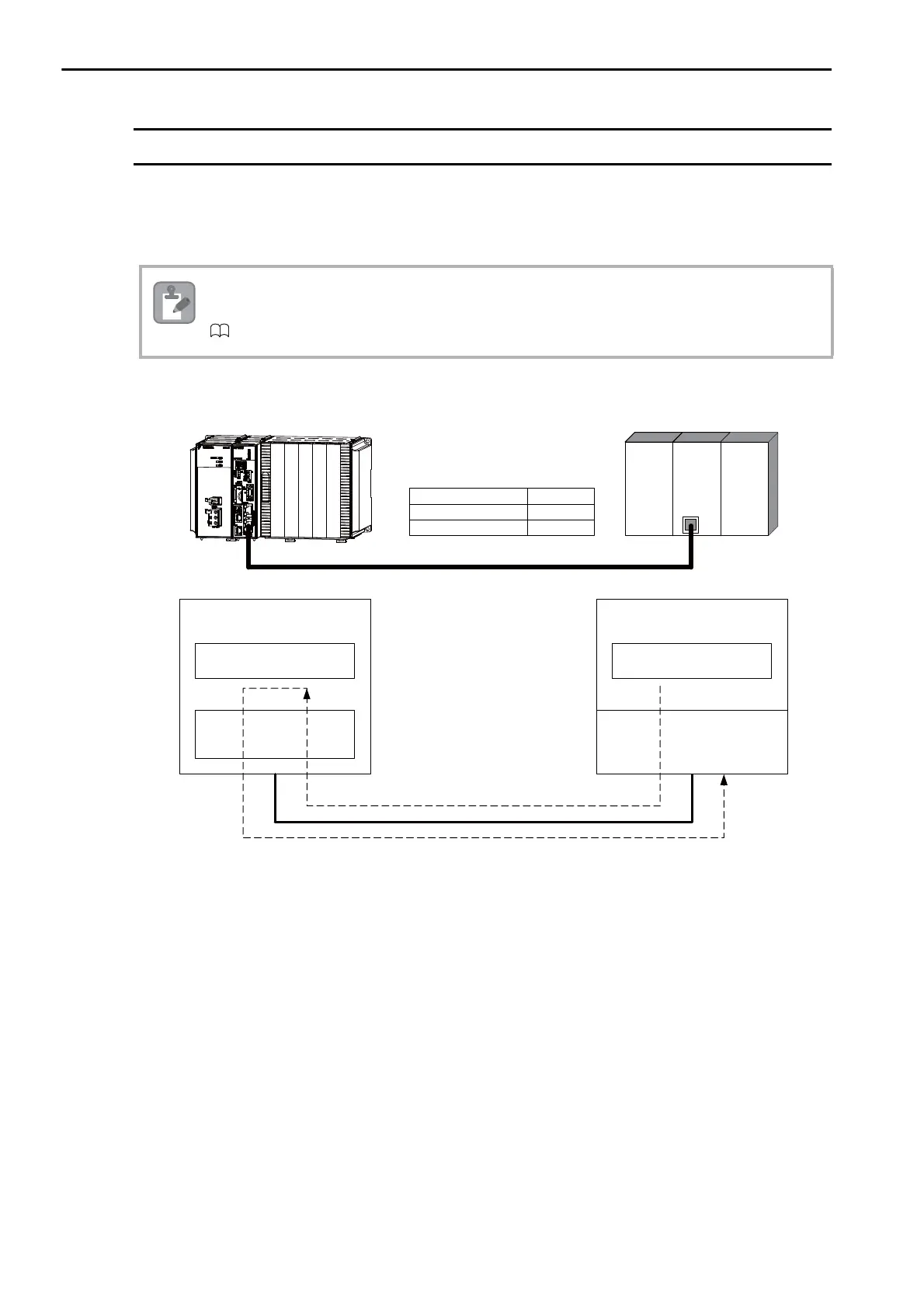

This section describes how to communicate with a JTEKT PLC by using the MSG-RCVE function.
When a JTEKT PLC is used as the master to write data to the file memory in the 2PORT-EFR, you will
need to create a ladder application that uses the SPW instruction.
The SPW instruction is used to write data to the file memory in the 2PORT-EFR.
Refer to the following manual for details.
Manual for the 2PORT-EFR Module from JTEKT Corporation
Note
Ethernet
TOYOPUC
Ethernet
2PORT-EFR
Binary
218IFD
MP3000
TOYOPUC
MP3000
(local station)
MSG-RCVE function
(ladder application)
SPW instruction
(ladder application)
TOYOPUC protocol
(file memory communications)
JTEKT PLC TOYOPUC
(remote station)
Slave
Master
Communications Protocol
Connection Type
Data Code
TCP or UDP
