YASKAWA MP3000 Series - Using the MSG-RCVE Function with the MP3000 as a Slave

2.8 Communications with an OMRON PLC (FINS Communications Service)
Using the MSG-RCVE Function with the MP3000 as a Slave
2-195
Ethernet Communications
Using the MSG-RCVE Function with the MP3000 as a Slave
This section describes how to communicate with an OMRON PLC by using the MSG-RCVE function.
When an OMRON PLC is used as the master to execute FINS commands, it will need a ladder application
that uses the SEND and RECV instructions.
FINS Commands
Refer to the following section for details on the FINS commands that are used with the MSG-RCVE func-
tion.
Using Automatic Reception with the MP3000 as a Slave − FINS Commands (page 2-187)
I/O Memory Data Areas and Corresponding Registers in the
MP3000
Refer to the following section for details on the relationship between registers in the MP3000 and the I/O
memory data areas.
Using Automatic Reception with the MP3000 as a Slave − I/O Memory Data Areas and Corresponding Registers in the MP3000
(page 2-187)

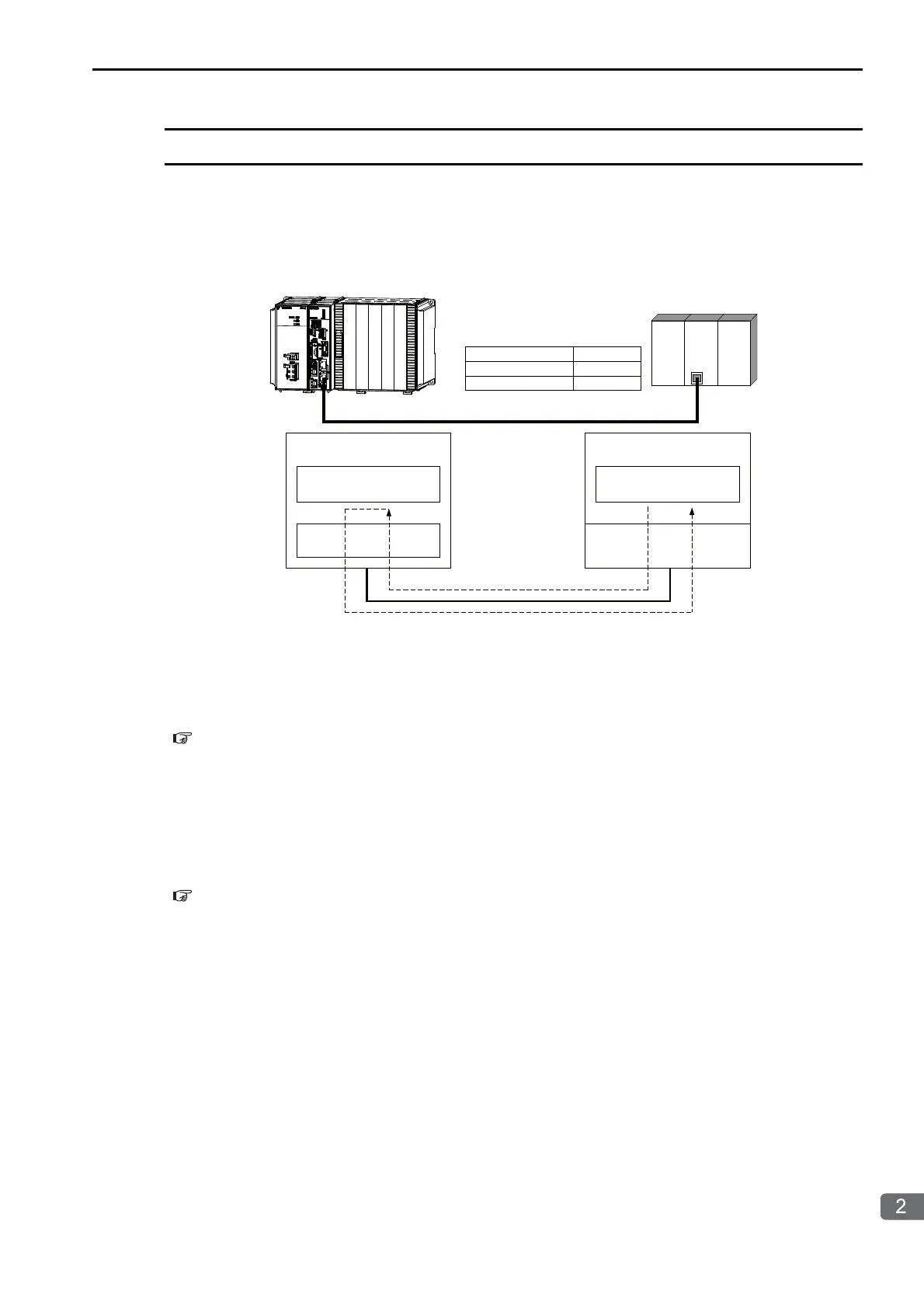

Ethernet
FINS
Ethernet
MP3000
218IFD
TCP or UDP
Binary
MP3000
(local station)
Slave
Master
Communications Protocol
Connection Type
Data Code
MSG-RCVE function
(ladder application)
CS/CJ/CP-series PLC
SEND and RECV instructions
(ladder application)
FINS protocol
OMRON CS/CJ/CP-series PLC
(remote station)
