2.6 Communications with a Mitsubishi PLC (A-compatible 1E Frame protocol)
Message Functions
2-117
REQUEST
This bit gives the status of the processing request for the MSG-SNDE function.
RESULT
These bits give the execution results of the MSG-SNDE function.
COMMAND
These bits indicate the processing command of the MSG-SNDE function.
* MR_SEND is executed after M_REC is executed.
Bit Status Meaning
1 Processing is being requested.
0 Processing request has ended.
Code Abbreviation Meaning
0 CONN_NG
The message send failed or connection ended with an error in Ethernet
communications.
1 SEND_OK The message was sent normally.
2 REC_OK The message was received normally.
3 ABORT_OK The request to abort execution was completed.
4 FMT_NG A parameter formatting error occurred.
5 SEQ_NG A command sequence error occurred.
6 RESET_NG A reset occurred.
7 REC_NG
A data reception error (error detected in the lower-layer program)
occurred.
Code Abbreviation Meaning
1U_SEND
General-purpose message transmission (for no-protocol communica-
tions)
2 U_REC General-purpose message reception (for no-protocol communications)
3 ABORT Forced abort
8 M_SEND
MEMOBUS command transmission: Completed when response is
received.
9
M_REC
∗
MEMOBUS command reception
C
MR_SEND
∗
MEMOBUS response transmission

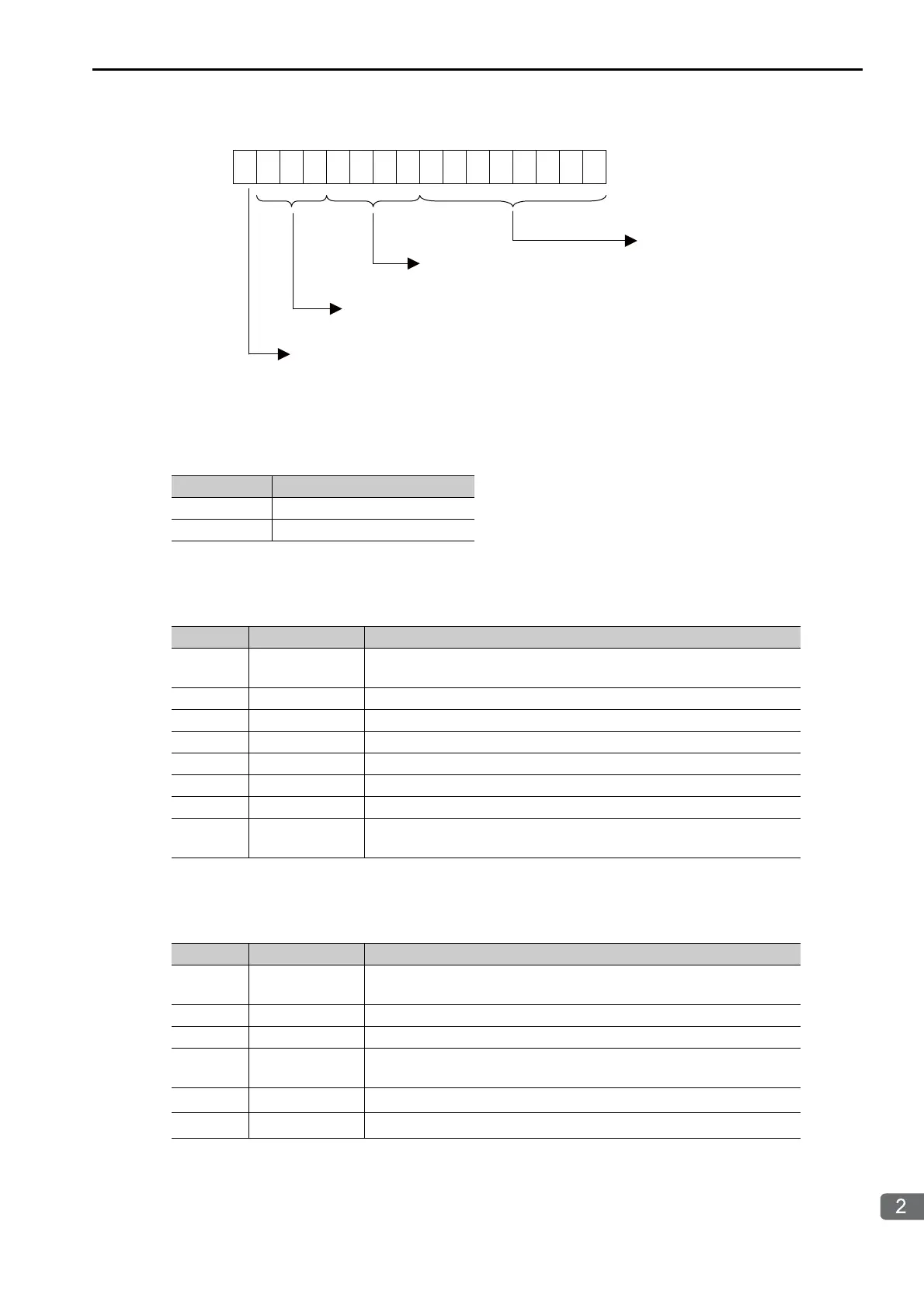

FEDCBA9876543210
Bits 0 to 7:
PARAMETER
Bits 8 to B:
COMMAND
Bits C to E:
RESULT
Bit F:
REQUEST
