2.7 Communications with a Mitsubishi PLC (QnA-compatible 3E Frame Protocol)
Using I/O Message Communications with the MP3000 as the Master
2-142
MP3000 Setup
Use the following procedure to set up the MP3000.

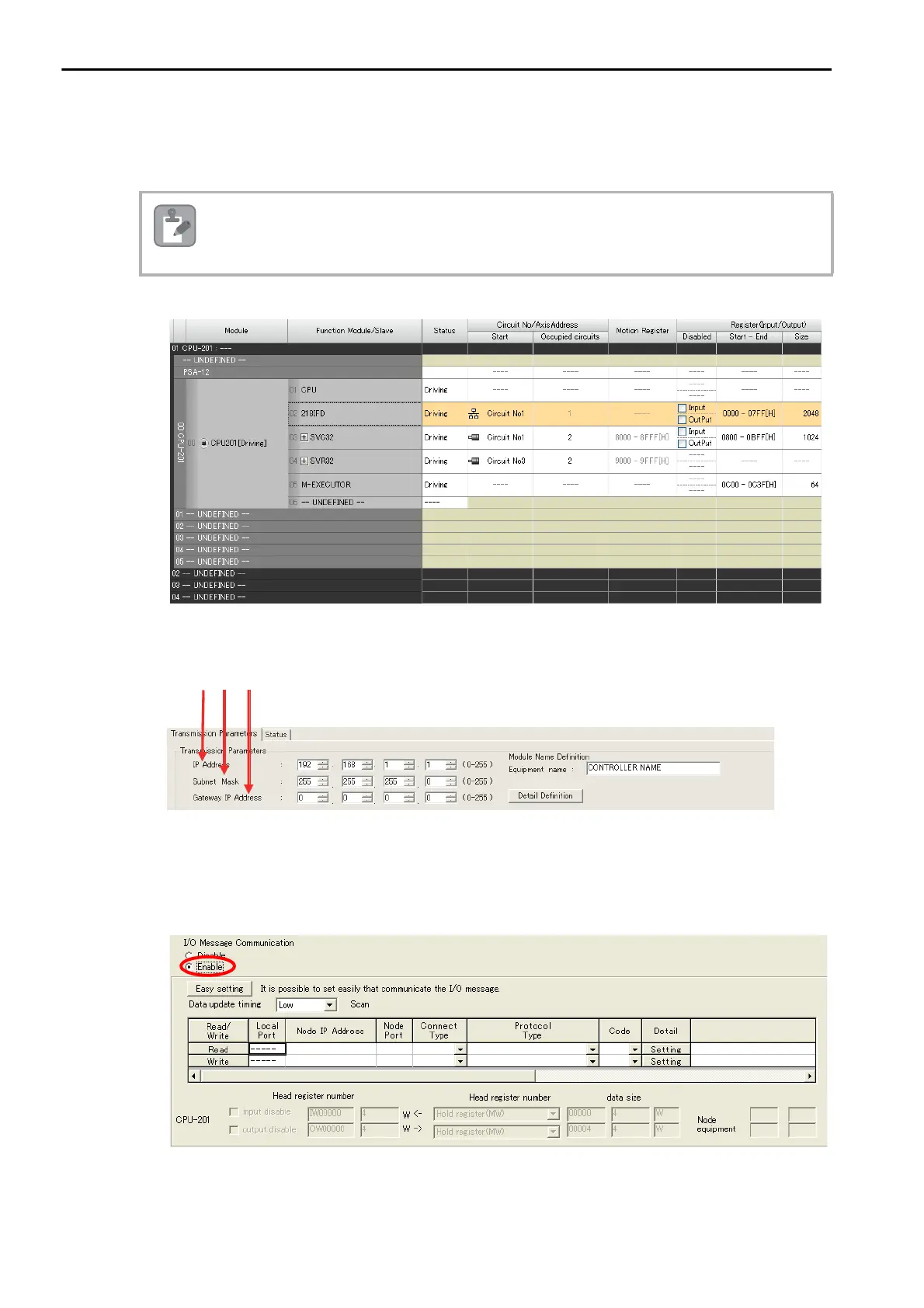

1. Double-click the cell for 218IFD in the Module Configuration Definition Tab Page.
The 218IFD Detail Definition Dialog Box will be displayed.
2. Set the communications parameters.
In the IP Address Boxes, enter the following address: 192.168.001.001.
In the Subnet Mask Boxes, enter the following mask: 255.255.255.000.
In the Gateway IP Address Boxes, enter the following address: 000.000.000.000.
3. Select the Enable Option in the I/O Message Communication Area of the Connection Parame-
ter settings.
If the communications parameters (IP address and subnet mask) have already been set, skip to step 3.
