2.7 Communications with a Mitsubishi PLC (QnA-compatible 3E Frame Protocol)
Using the MSG-SNDE Function with the MP3000 as the Master
2-151
Ethernet Communications

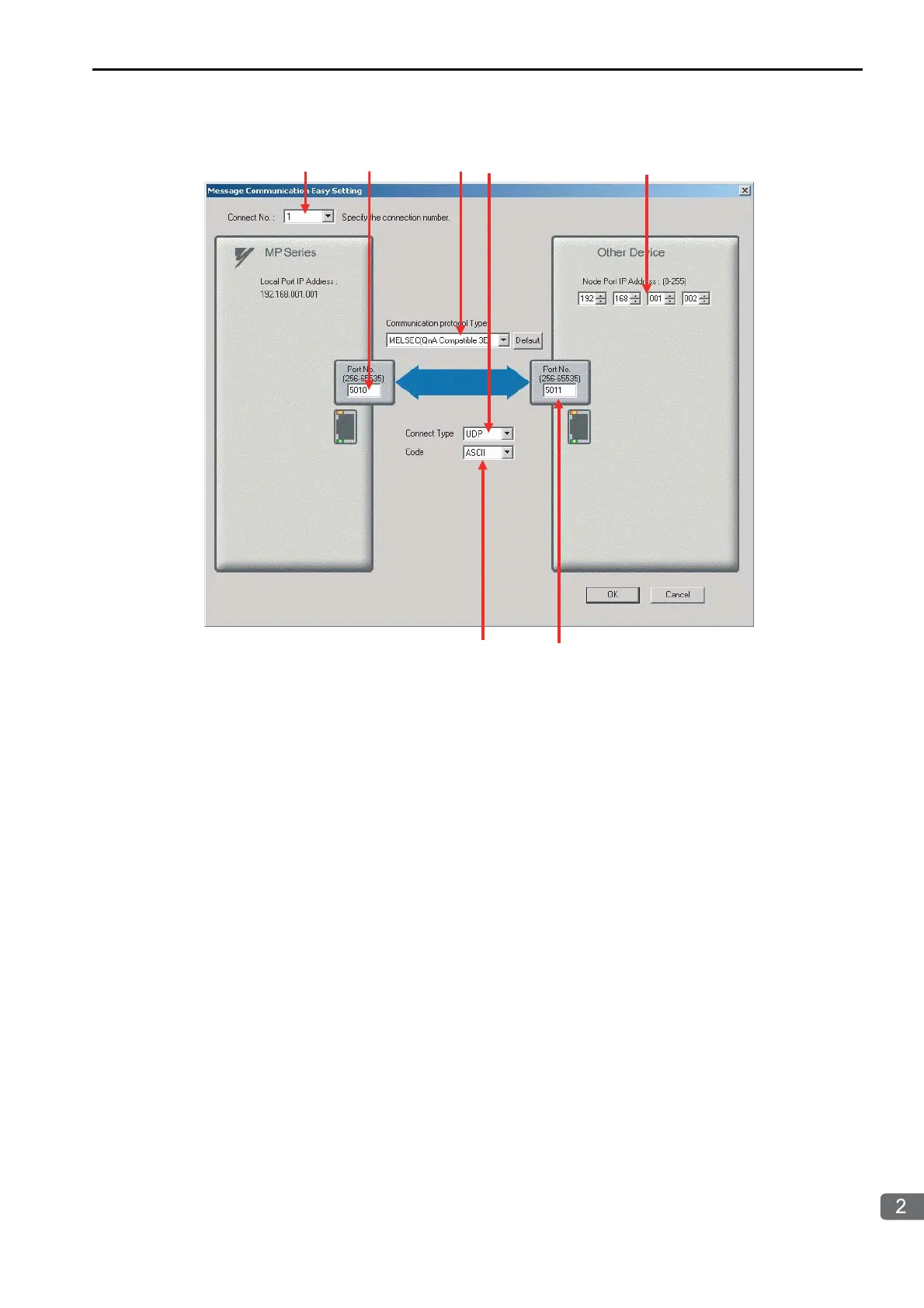

4. Set the connection parameters.
 Select 1 in the Connect No. Box.
 Enter “5010” in the Port No. Box for the MP-series Controller.
 Select MELSEC (QnA-compatible 3E) in the Communication protocol Type Box.
 Select UDP in the Connect Type Box.
 Select ASCII in the Code Box.
 Enter the following address in the Node Port IP Address Boxes for the other device:
192.168.001.002.
 Enter “5011” in the Port No. Box for the other device.
Note: Disable automatic reception for any connection for which message functions (MSG-SNDE) are used. If
message functions are used while automatic reception is enabled, the communications will not function
properly.
5. Click the OK Button.
6. Click the Yes Button in the Transmission Parameters Confirmation Dialog Box.
Note: If parameters have already been set for the same connection number and you click the Ye s Button in the
Transmission Parameters Confirmation Dialog Box, the settings will be overwritten by the parameters that are
set in the Message Communication Easy Setting Dialog Box.
g i
c def h
