2.7 Communications with a Mitsubishi PLC (QnA-compatible 3E Frame Protocol)
Message Functions
2-174

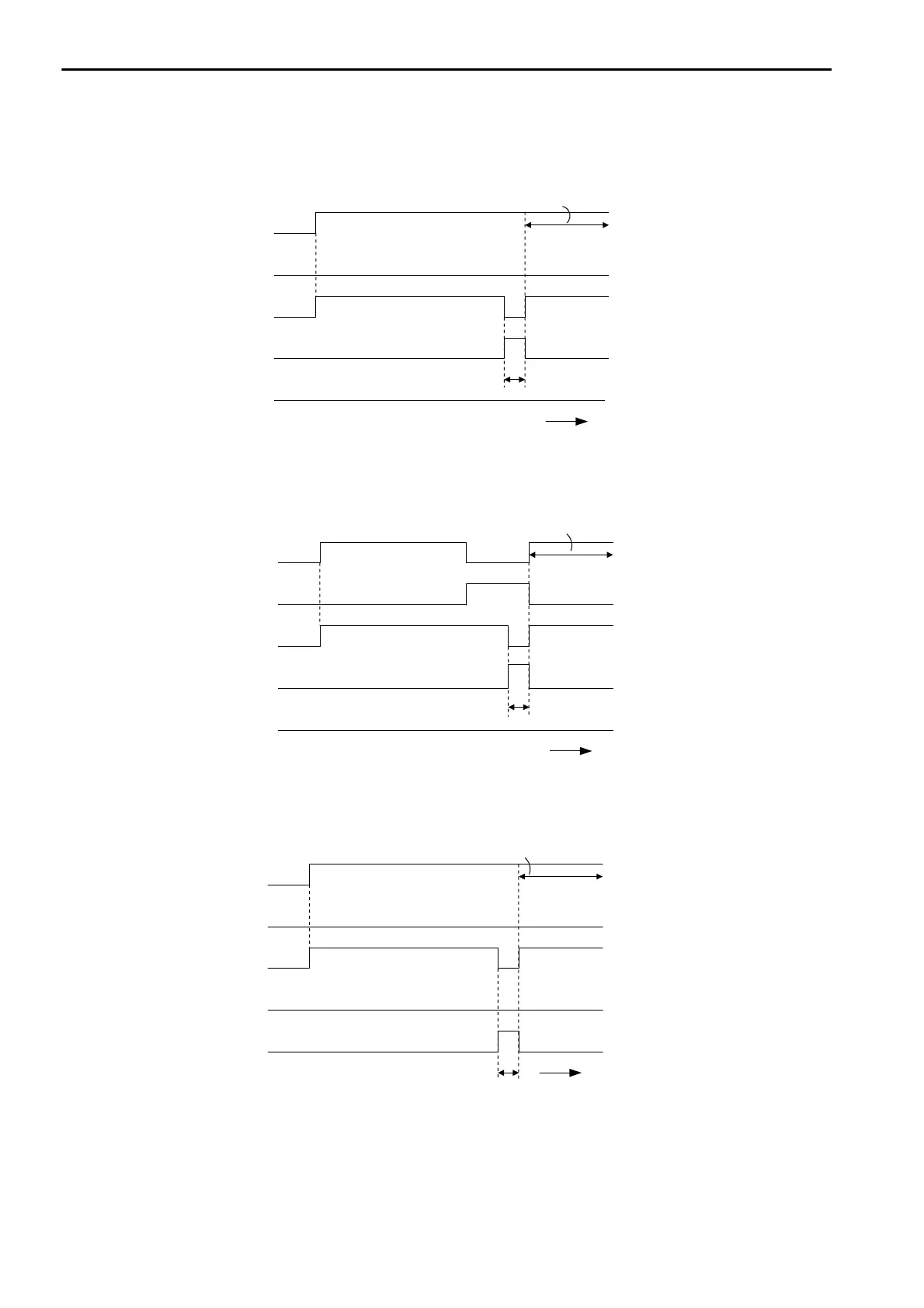

• Normal Execution
• When Execution Is Aborted
• Execution When an Error Occurs
t
Input: Execute
Input: Abort
Output: Busy
Output: Complete
Output: Error
To receive another message, keep
the Execute Bit ON even after the
completion of processing.
1 scan
t
Input: Execute
Input: Abort
Output: Busy
Output: Complete
Output: Error
To receive another message, keep
the Execute Bit ON even after the
completion of processing.
1 scan
t
Input: Execute
Input: Abort
Output: Busy
Output: Complete
Output: Error
To receive another message,
keep the Execute Bit ON
even after the error occurs.
1 scan
To Next Page
