2.8 Communications with an OMRON PLC (FINS Communications Service)
Using I/O Message Communications with the MP3000 as the Master
2-209
6.

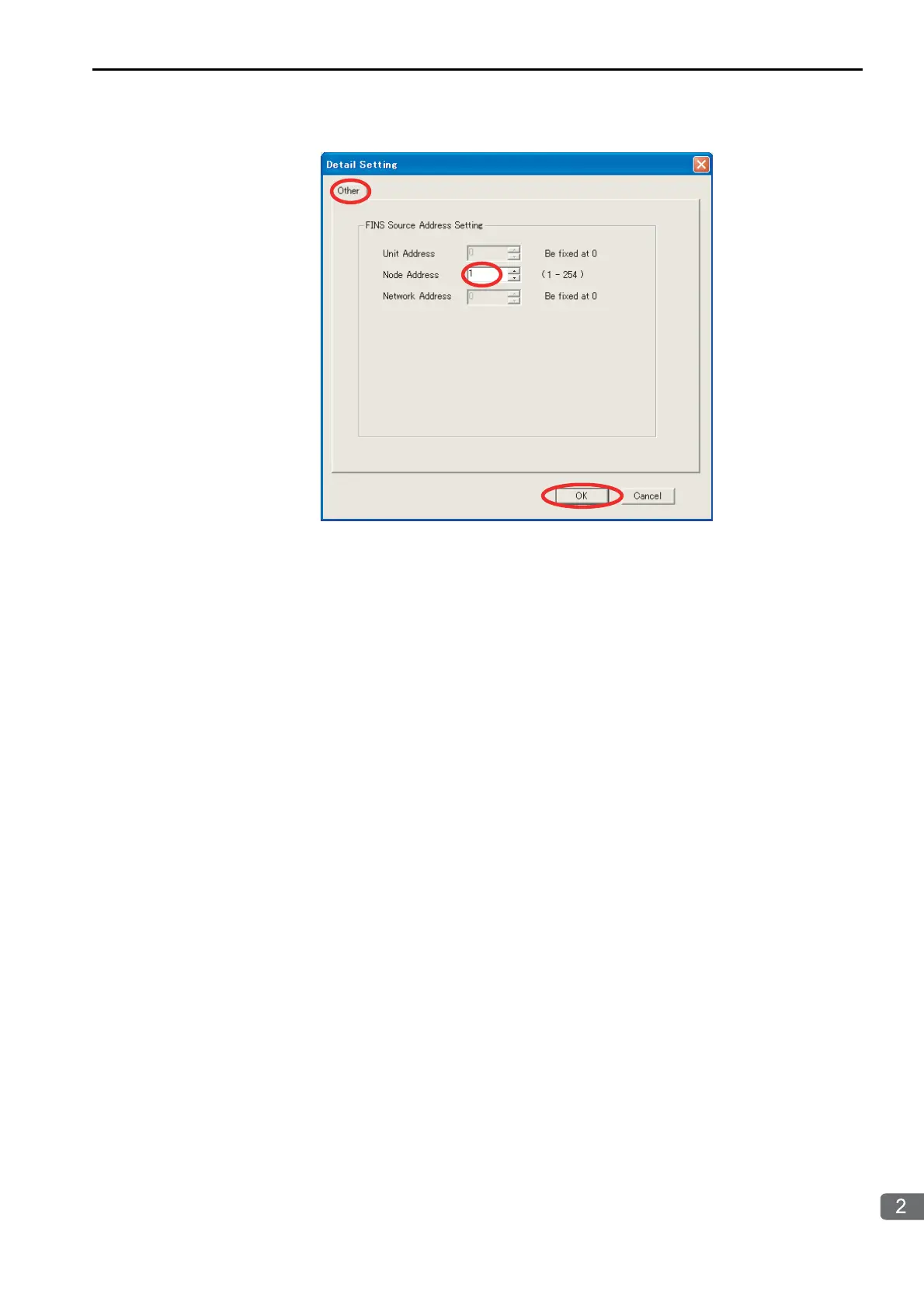

Click the
Other
Tab and enter “1” in the
Node Address
Box.
Note: 1. The unit address and network address of the MP3000 are always 00 hex.
2. The node address must be set for each connection. Specify a node address that is not in use by any other
device on the same network.
7. Click the OK Button.
8. Save the data to flash memory.
Note: Changes made to the communications or connection parameters will become effective only after the changes
have been saved to flash memory and the power supply has been cycled.
This concludes the settings for using the MP3000 as the master.
