2.8 Communications with an OMRON PLC (FINS Communications Service)
Using the MSG-SNDE Function with the MP3000 as the Master
2-216

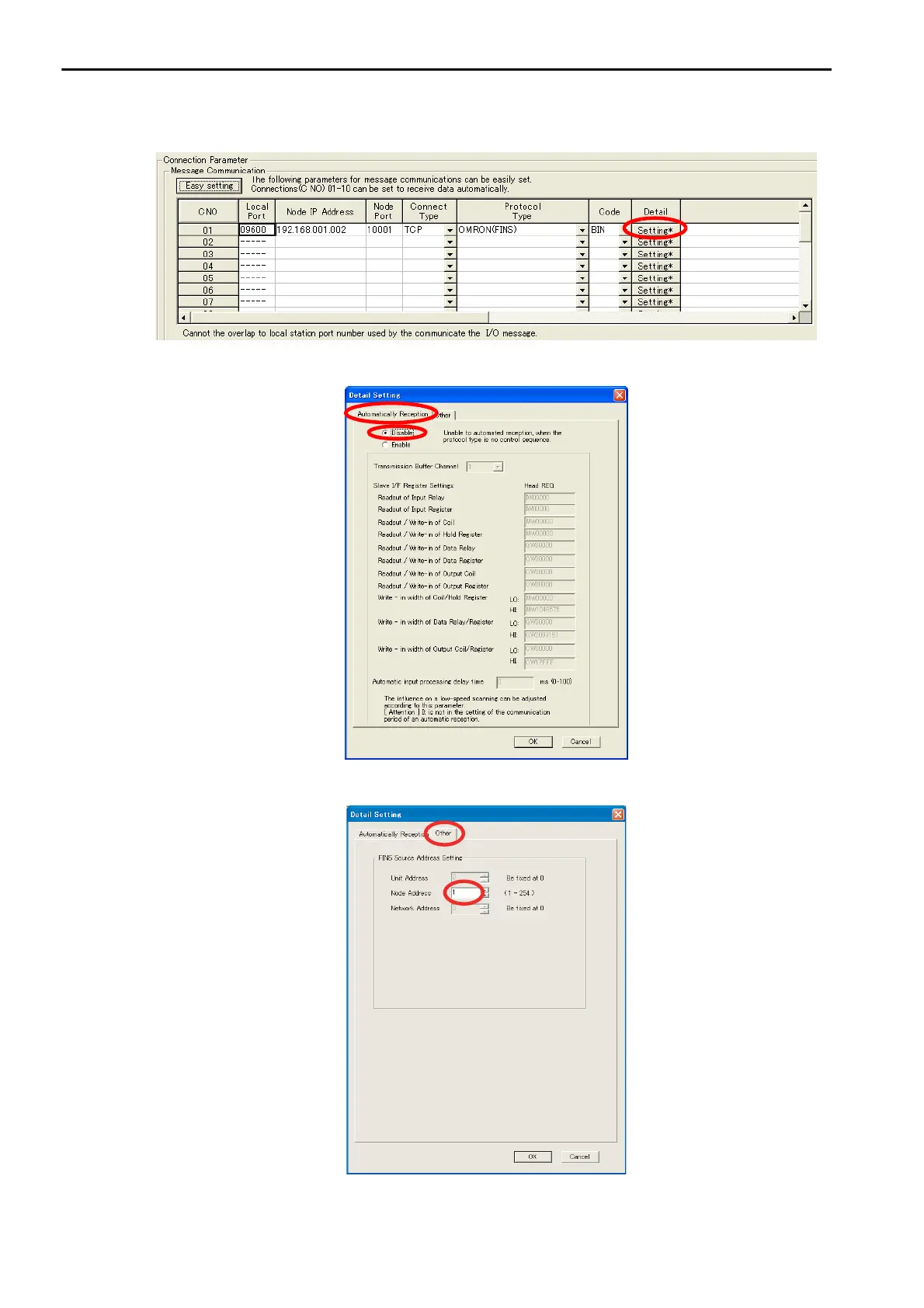

7. Check the settings and double-click the Setting Button in the Detail Column.
8. Click the Disable Option on the Automatically Reception Tab Page.
9. Click the Other Tab and enter “1” in the Node Address Box.
Note: 1. Specify a node address that is not in use by any other device on the same network.
2. Changes made to the communications or connection parameters will become effective only after the
changes have been saved to flash memory and the power supply has been cycled.
To Next Page
