2.10 Communications with a JTEKT PLC (TOYOPUC Protocol)
Using the MSG-RCVE Function with the MP3000 as a Slave
2-272
Setting Example

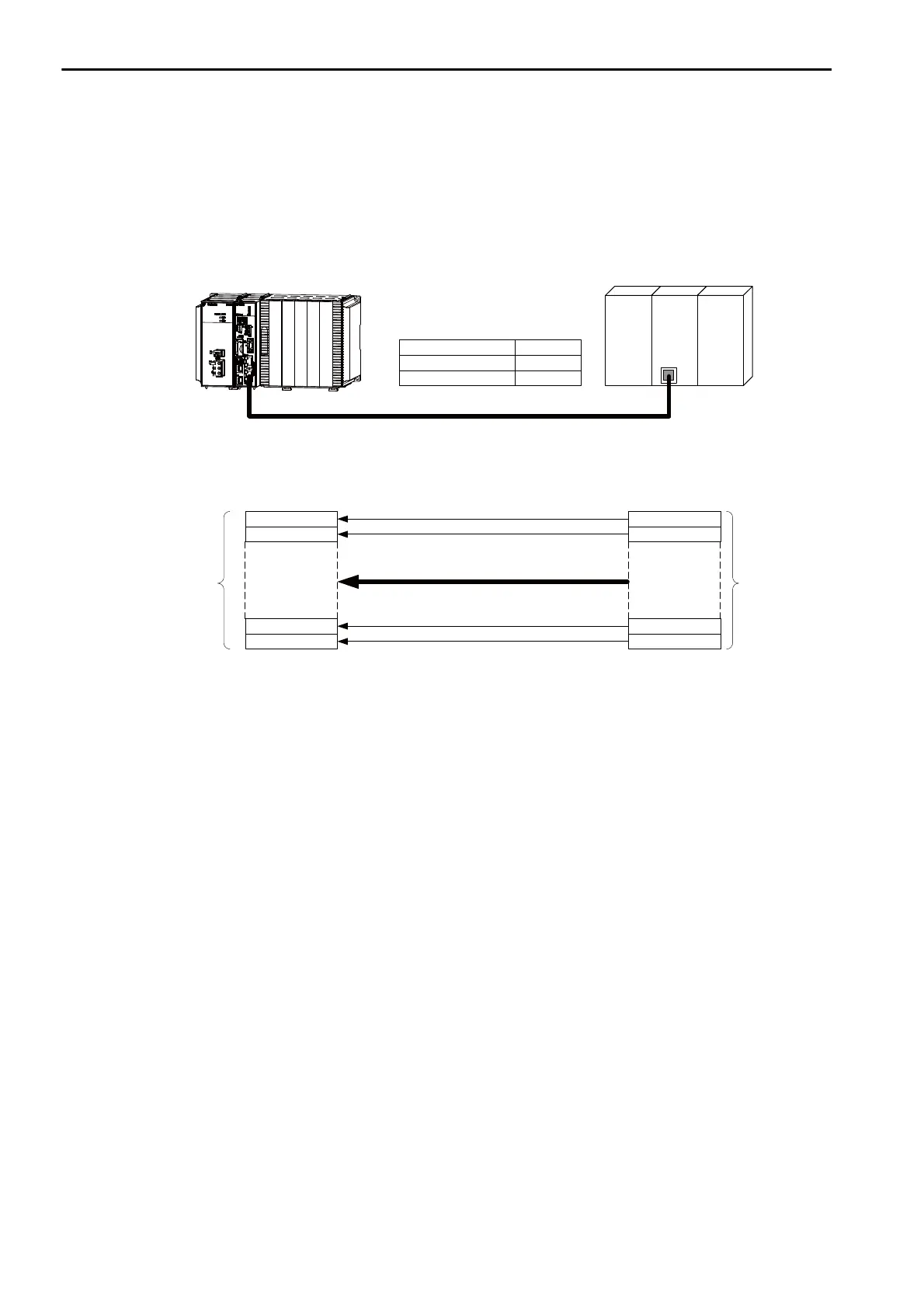

The following figure illustrates how the contents of 200 words from the 3002 to 3191 file memory
addresses in the JTEKT PLC master are written to the MW05000 to MW05199 hold registers in the
MP3000 slave.
MW05000
Ethernet
MW05001
MW05199
03002
03004
03190
MW05198 0318E
Ethernet
TOYOPUC
Ethernet
TCP
Binary
MP3000
(local station)
JTEKT PLC TOYOPUC
(remote station)
Slave
Communications Protocol
Connection Type
Data Code
Master
Port number: 1025
Port number: 1025
Local Station
Hold registers (M registers)
Written.
Remote Station
File memory
Data size:
200 words
Connection 3
Data size:
200 words
