2.10 Communications with a JTEKT PLC (TOYOPUC Protocol)
Using the MSG-RCVE Function with the MP3000 as a Slave
2-274

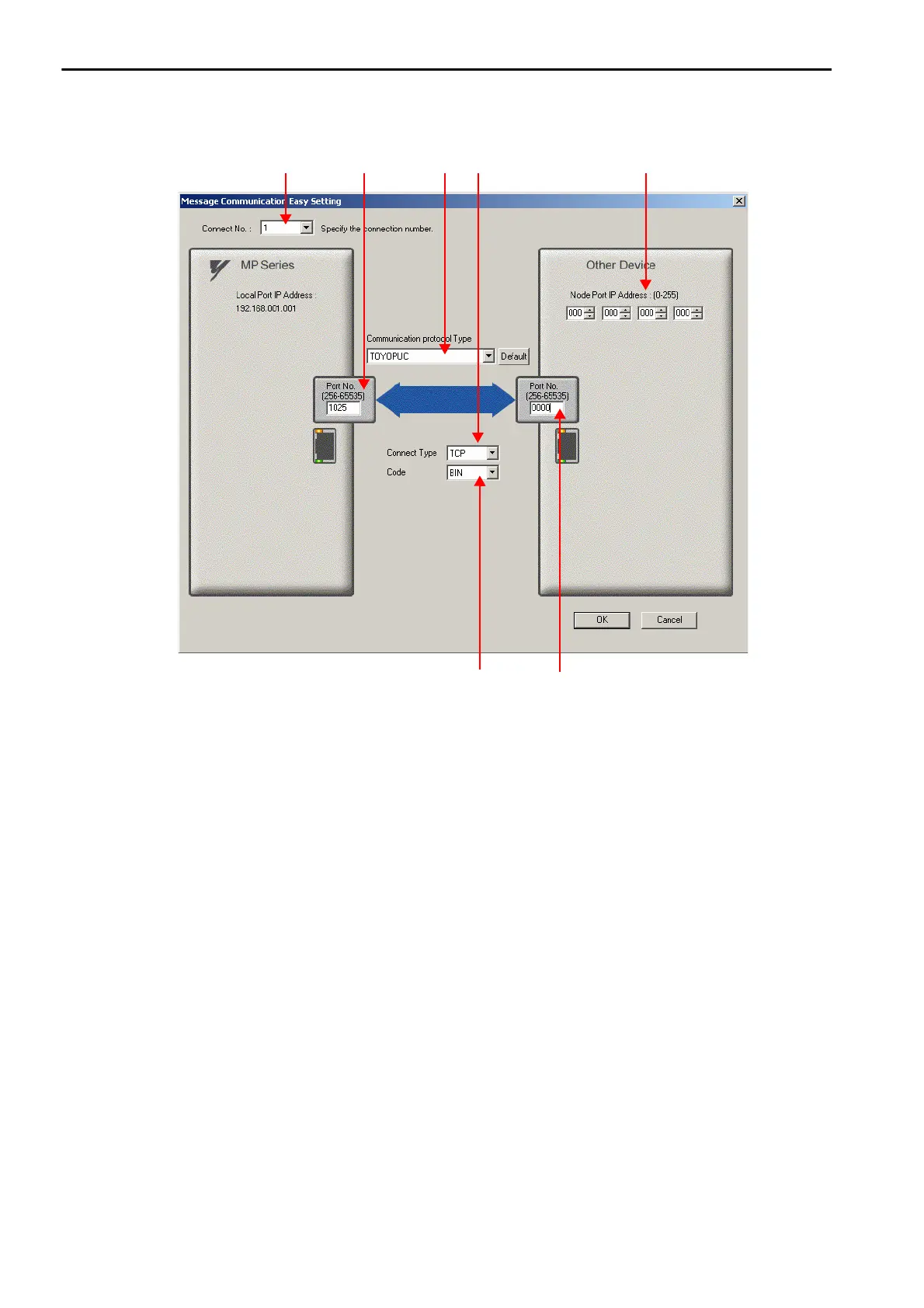

4. Set the connection parameters.
Select 1 in the Connect No. Box.
Enter “1025” in the Port No. Box for the MP-series Controller.
Select TOYOPUC in the Communication Protocol Type Box.
Select TCP in the Connect Type Box.
Select BIN in the Code Box.
Enter the following address in the Node Port IP Address Boxes for the other device:
000.000.000.000.
Enter “0000” in the Port No. Box for the other device.
Note: 1. Disable automatic reception for any connection for which message functions (MSG-SNDE and MSG-
RCVE) are used. If message functions are used while automatic reception is enabled, the communica-
tions will not function properly.
2. The settings in the above screen capture will open an unpassive connection because the remote station port
and IP address are set to 0. To open a full passive connection, enter a port number and IP address for the
remote device in steps (6) and (7).
3. If communicating by UDP, select UDP in the Connect Type Box.
5. Click the OK Button.
6. Click the Yes Button in the Transmission Parameters Confirmation Dialog Box.
Note: If parameters have already been set for the same connection number and you click the Yes Button in the Trans-
mission Parameters Confirmation Dialog Box, the settings will be overwritten by the parameters that are set in
the Message Communications Easy Setting Dialog Box.
To Next Page
