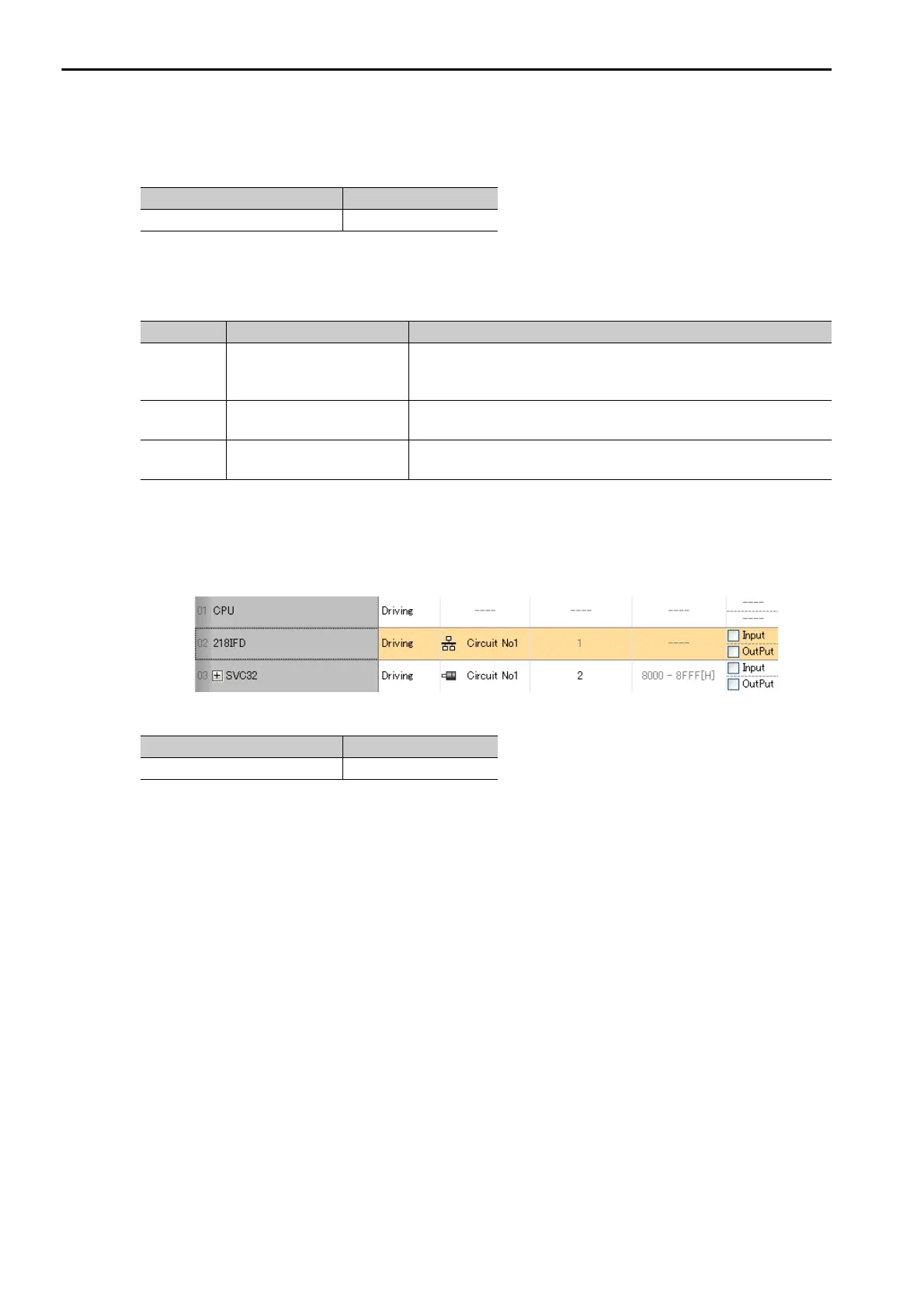

2.10 Communications with a JTEKT PLC (TOYOPUC Protocol)
Message Functions
2-304
Dev-Typ (Communications Device Type)
Specify the type code of the communications device.
Pro-Typ (Communications Protocol)
Specify the type code of the communications protocol.
Cir-No (Circuit Number)
Specify the circuit number for the communications device.
Specify the same circuit number as displayed in the MPE720 Module Configuration Definition Tab Page.
The following table gives the valid circuit numbers.
Device Type Code
218IFD 16
Type Code Communications Protocol Remarks
1 MEMOBUS
Select this protocol when using the TOYOPUC protocol. MEMO-
BUS is automatically converted to the TOYOPUC protocol inside the
218IFD.
2
No-protocol communica-
tions 1 (unit: words)
This code is not used for the TOYOPUC protocol.
3
No-protocol communica-
tions 2 (unit: bytes)
This code is not used for the TOYOPUC protocol.
Communications Device Valid Circuit Numbers
218IFD 1 to 8
