2.14 Communications Buffer Channels
2-358
MP3000
MP3000
1
2
3
4
•
•
•
10
CNO∗ = 01
CNO∗ = 02
- TCP
- MELSEC
- ASCII
Ethernet
∗
Ethernet
Local station IP address
192.168.1.x
Remote device #1
Ethernet
Node IP Address
192.168.1.y
Remote device #2
Ethernet
Node IP Address
192.168.1.z

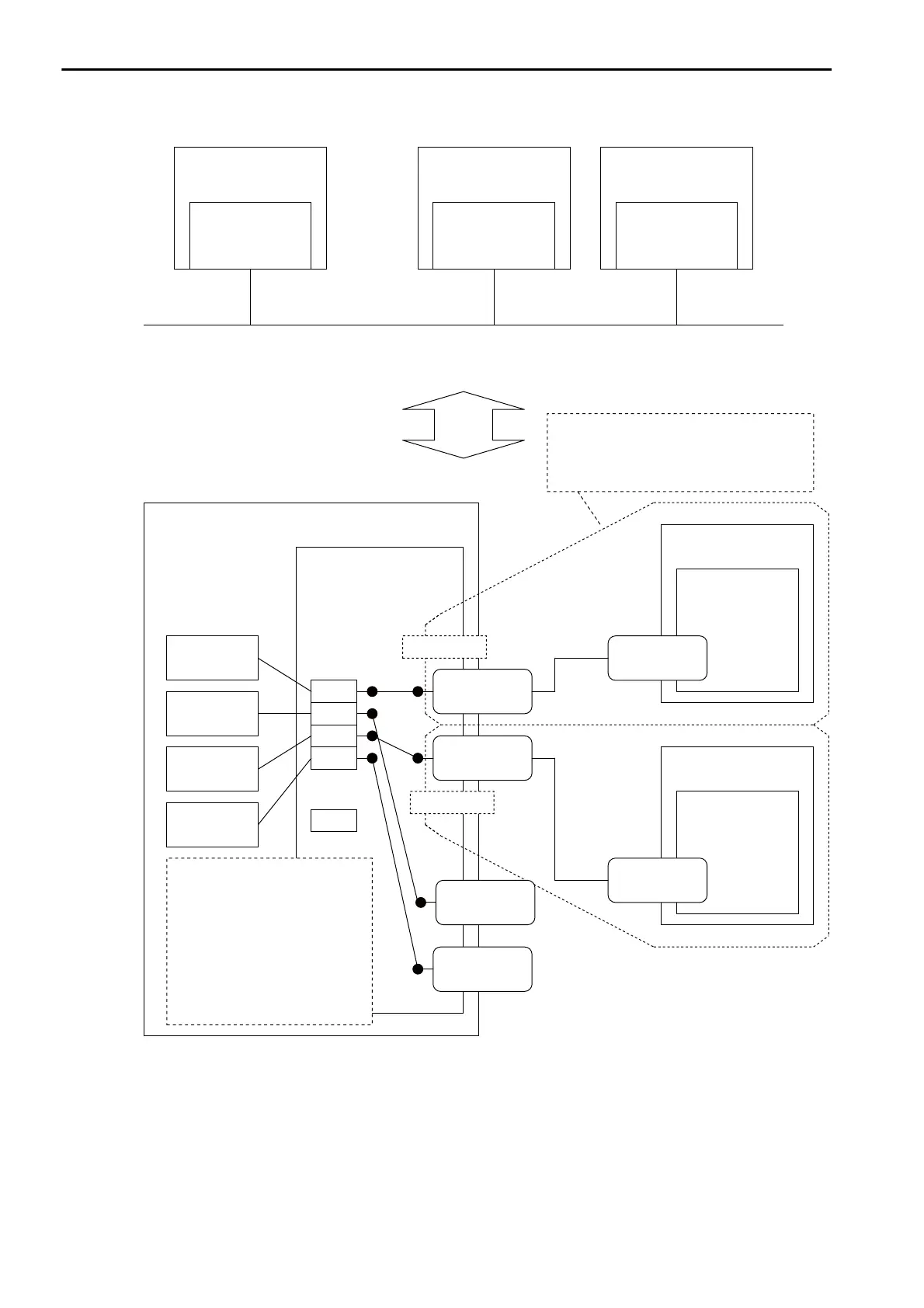

Network Configuration
The connection is set in the Transmission
Parameters Tab Page of the MPE720 Module
Configuration Definition Dialog Box.
Automatic
reception
Communications
Buffer Channels
Port number:
10010
Port number:
10020
Port number:
10030
Port number:
10040
The communications buffer channel
is associated with the connection
based on the setting of the Ch-No
(Communications Buffer Channel
Number) input parameter in the
MSG-SNDE and MSG-RCVE
functions, and PARAM10
(Connection Number) in the
parameter list (Param).
MSG-SNDE
function
MSG-SNDE
function
MSG-RCVE
function
Ethernet (218IFD)
Local station IP address
192.168.1.x
Connection settings
Remote device #1
Ethernet
Node IP Address
192.168.1.y
Port number:
20010
Connection settings
- UDP
- Extended
MEMOBUS
- BIN
Remote device #2
Ethernet
Node IP Address
192.168.1.z
Port number:
20020
CNO: Connection number
Note: Maximum number of connections = 20
