2.4 Communications with MP-series Controllers
Using the MSG-RCVE Function with the MP3000 as a Slave
2-31
Ethernet Communications
Setting Example

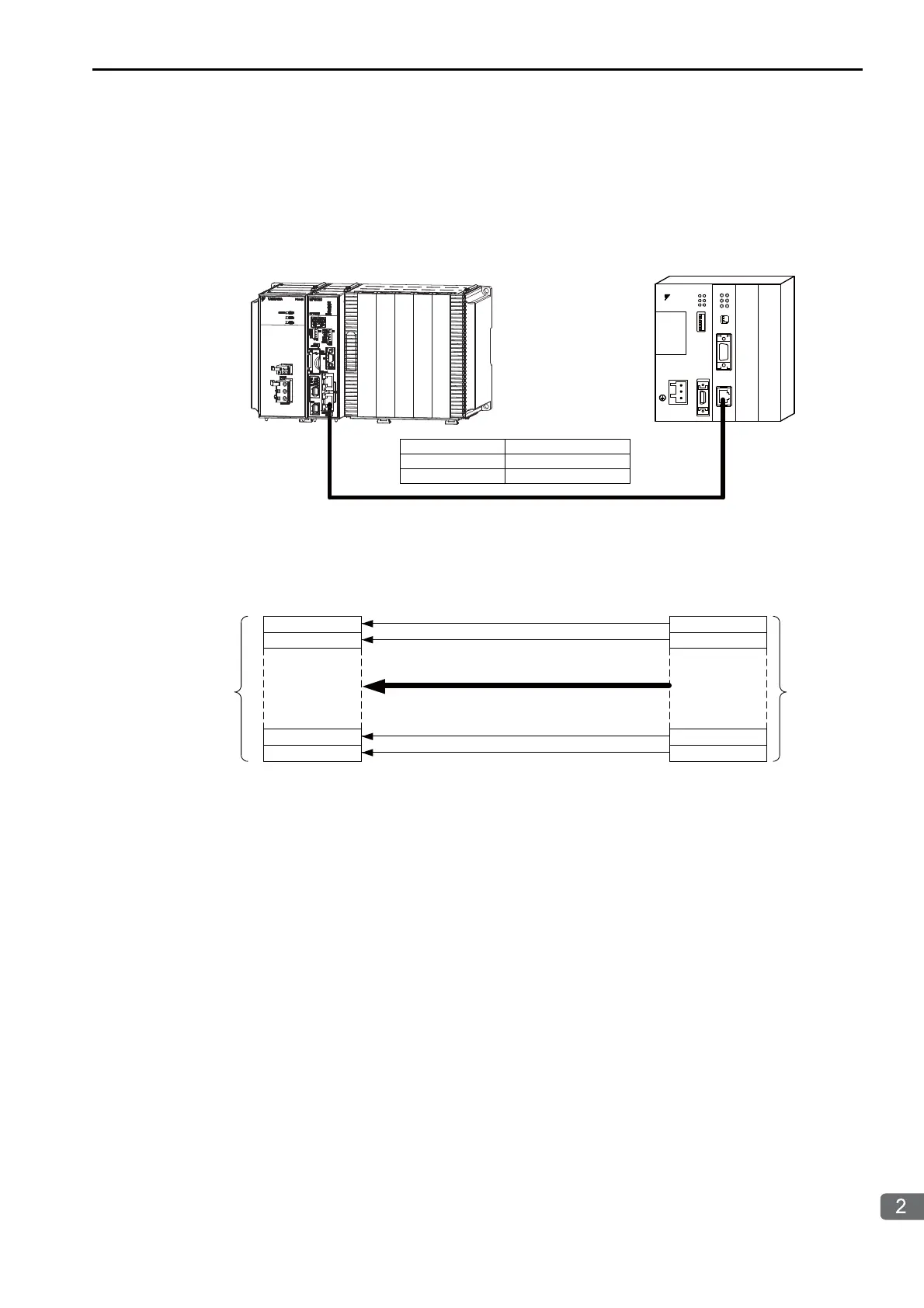

The following figure illustrates how the contents of the MW00100 to MW00199 hold registers in the
MP2300 master are written to the MW00100 to MW00199 hold registers in the MP3000 slave.
