4.2 CPU Module Specifications
4.2.7 System Register Specifications
4-14
 DWG.H Only
Operation starts when the high-speed scan starts.

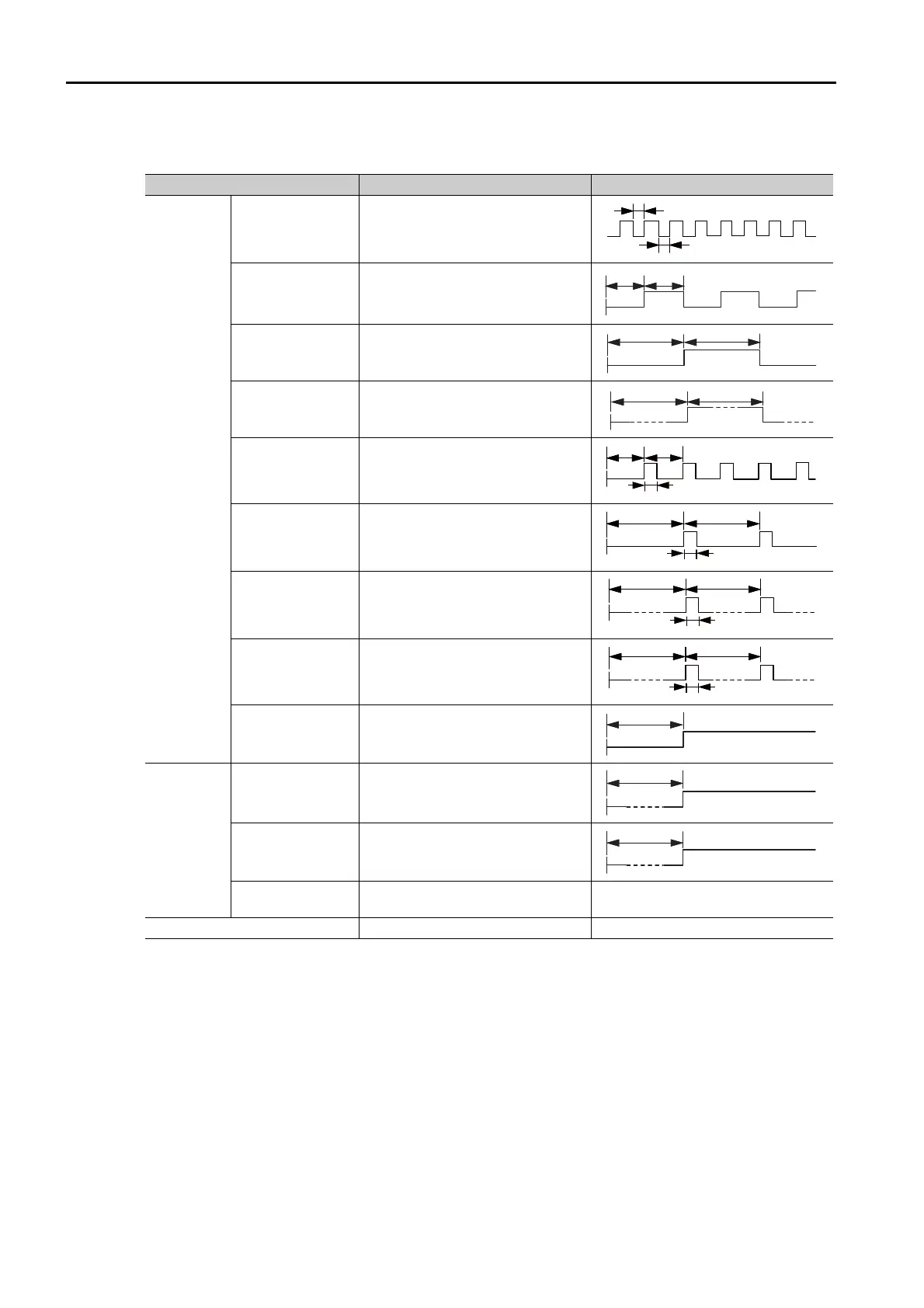

Register Address Name Remarks
SW00001
SB000010 1-scan Flicker Relay
SB000011 0.5-s Flicker Relay
SB000012 1.0-s Flicker Relay
SB000013 2.0-s Flicker Relay
SB000014 0.5-s Sampling Relay
SB000015 1.0-s Sampling Relay
SB000016 2.0-s Sampling Relay
SB000017 60.0-s Sampling Relay
SB000018 1.0 s After Start of Scan Process
SW00001
SB000019 2.0 s After Start of Scan Process
SB00001A 5.0 s After Start of Scan Process
SB00001B to
SB00001F
Reserved for system. −
SW00002 Reserved for system. −
1 scan
1 scan
0.5 s
0.5 s
1.0 s 1.0 s
2.0 s 2.0 s
0.5 s 0.5 s
1 scan
1.0 s 1.0 s
1 scan
2.0 s 2.0 s
1 scan
60.0 s 60.0 s
1 scan
1.0 s
2.0 s
5.0 s
