2.1 CPU Module
2.1.4 Connectors
2-9
2
Appearances and Parts
2.1.4 Connectors

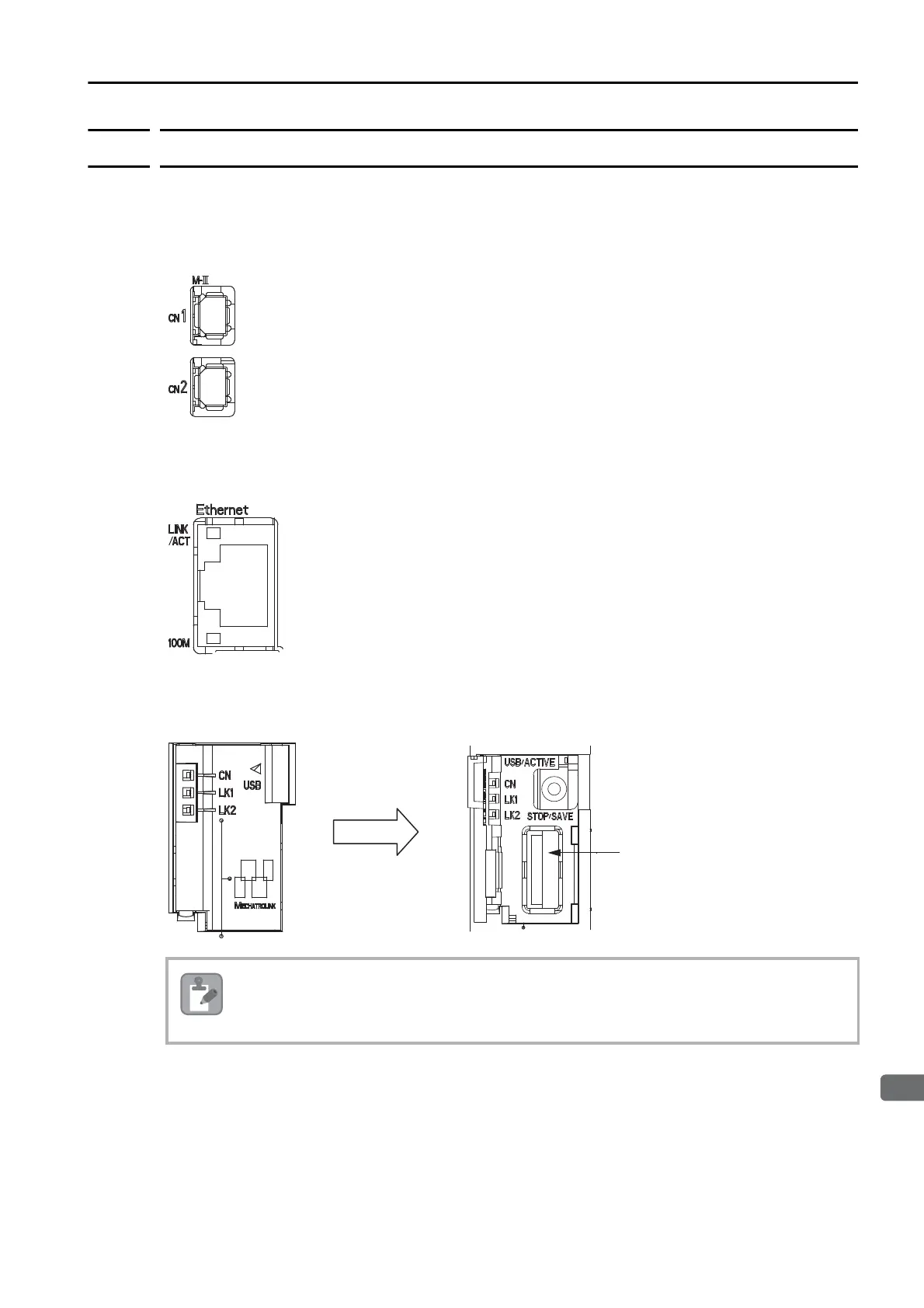

The CPU Module has three types of connectors: MECHATROLINK-III, Ethernet, and USB.
MECHATROLINK-III Connectors
These connectors are used to connect MECHATROLINK-III communications devices.
Ethernet Connectors
These connectors are used to connect Ethernet communications devices.
USB Connector
This connector is used to connect a USB memory device.
Before removing the USB memory device, press the STOP/SAVE switch and wait until the USB
status indicator goes out. If the USB memory device is removed while the USB status indicator is
lit or flashing, the data may become corrupted.
Open the cover.
USB connector
Note
