YASKAWA MP3300 series User Manual

2.2 Base Units
2.2.1 Appearance and Part Names
2-11
2
Appearances and Parts
2.2 Base Units
The Base Unit provides the backplane to which Modules are mounted and supplies the
required power to the Modules. There are two models of Base Units, a one-slot model and a
three-slot model.
This section shows the appearance and part names of the Base Unit and describes the con-
nector.
2.2.1 Appearance and Part Names

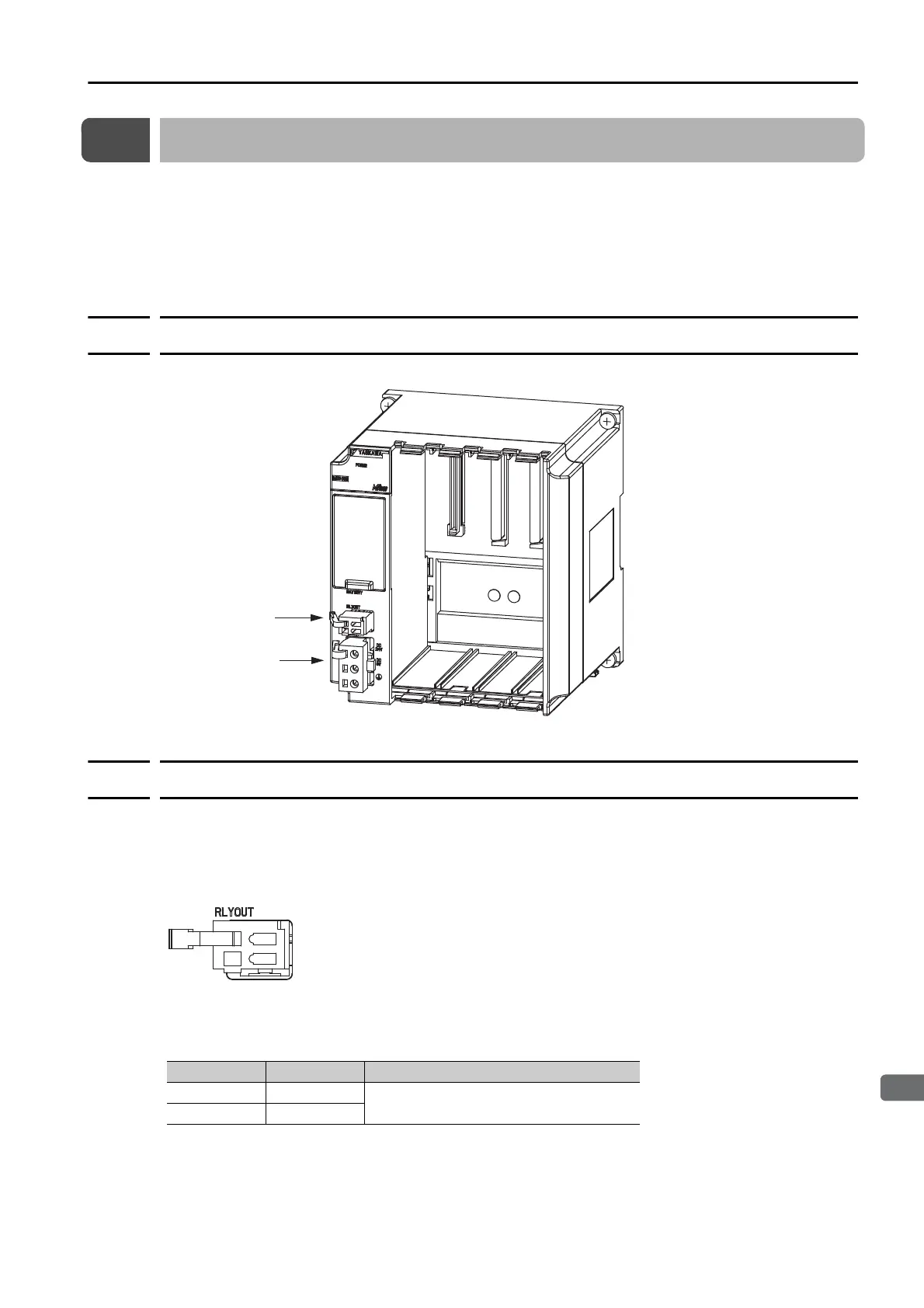

The following figure shows the appearance of the Base Unit and a part name.
2.2.2 Connector
The Base Unit has two connectors: an RLYOUT connector and a power connector.
RLYOUT Connector
This connector outputs the status of the CPU Module.
Model: 734-302
 Pin Assignments
RLYOUT connector
Power connector
No. Signal Label Description
1OUT
• Normal operation: Circuit closed.
• Error: Circuit open.
2OUT
