2.2 Base Units
2.2.2 Connector
2-12

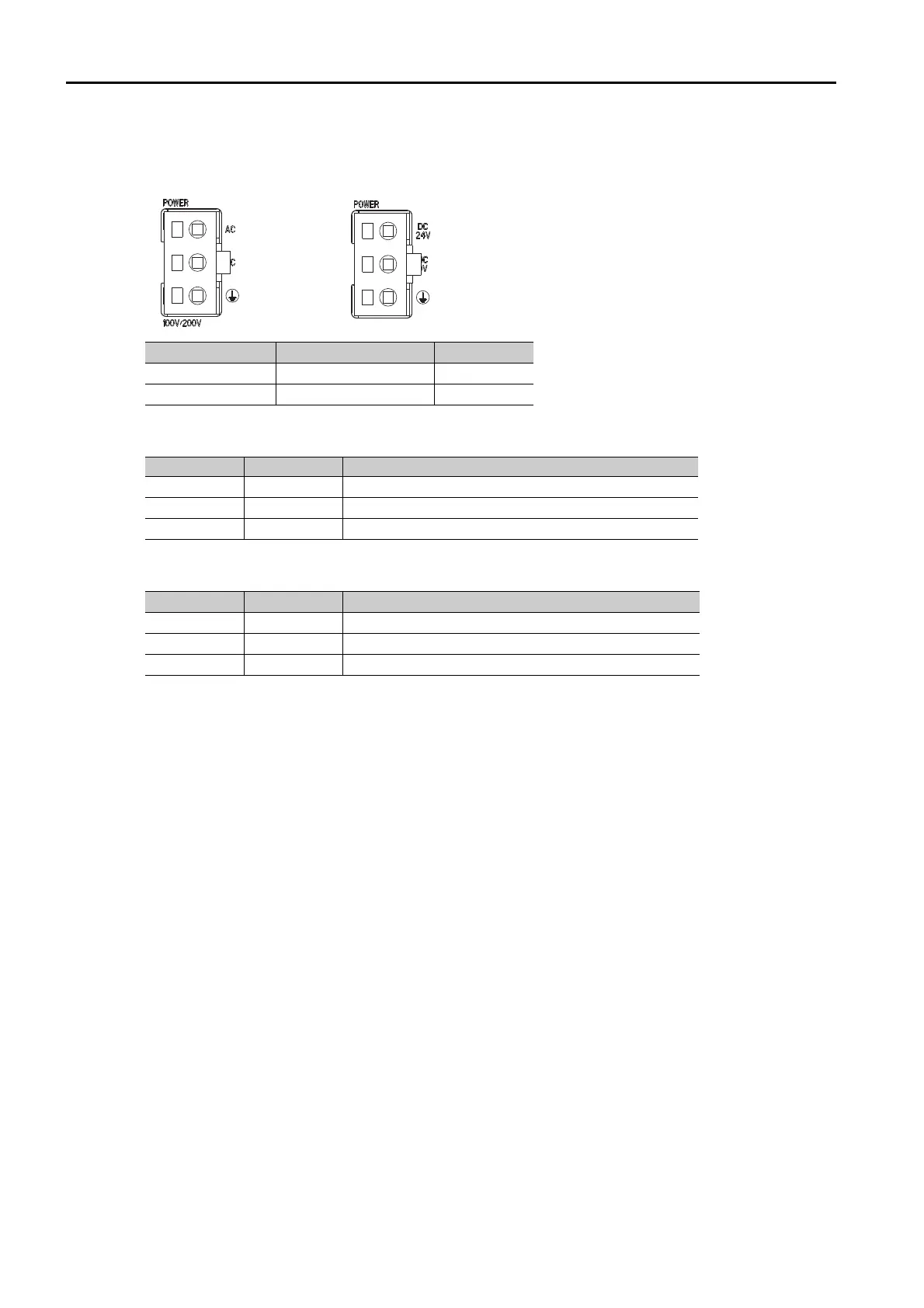

Power Connector
Connect the power supply to this connector.
Pin Assignments: AC Power Supply
Pin Assignments: DC Power Supply
Typ e Model Color
AC power supply 3-2134249-3 Black
DC power supply 4-2013522-3 White
Pin No. Signal Label Description
3AC AC input
2AC AC input
1 FG Connects to the frame ground. (Ground to 100 Ω max.)
Pin No. Signal Label Description
3 DC24 V 24-VDC input
2DC0 V 0-VDC input
1 FG Connects to the frame ground. (Ground to 100 Ω max.)
AC Power Supply DC Power Supply
To Next Page
