5.2 Base Units
5-5
5

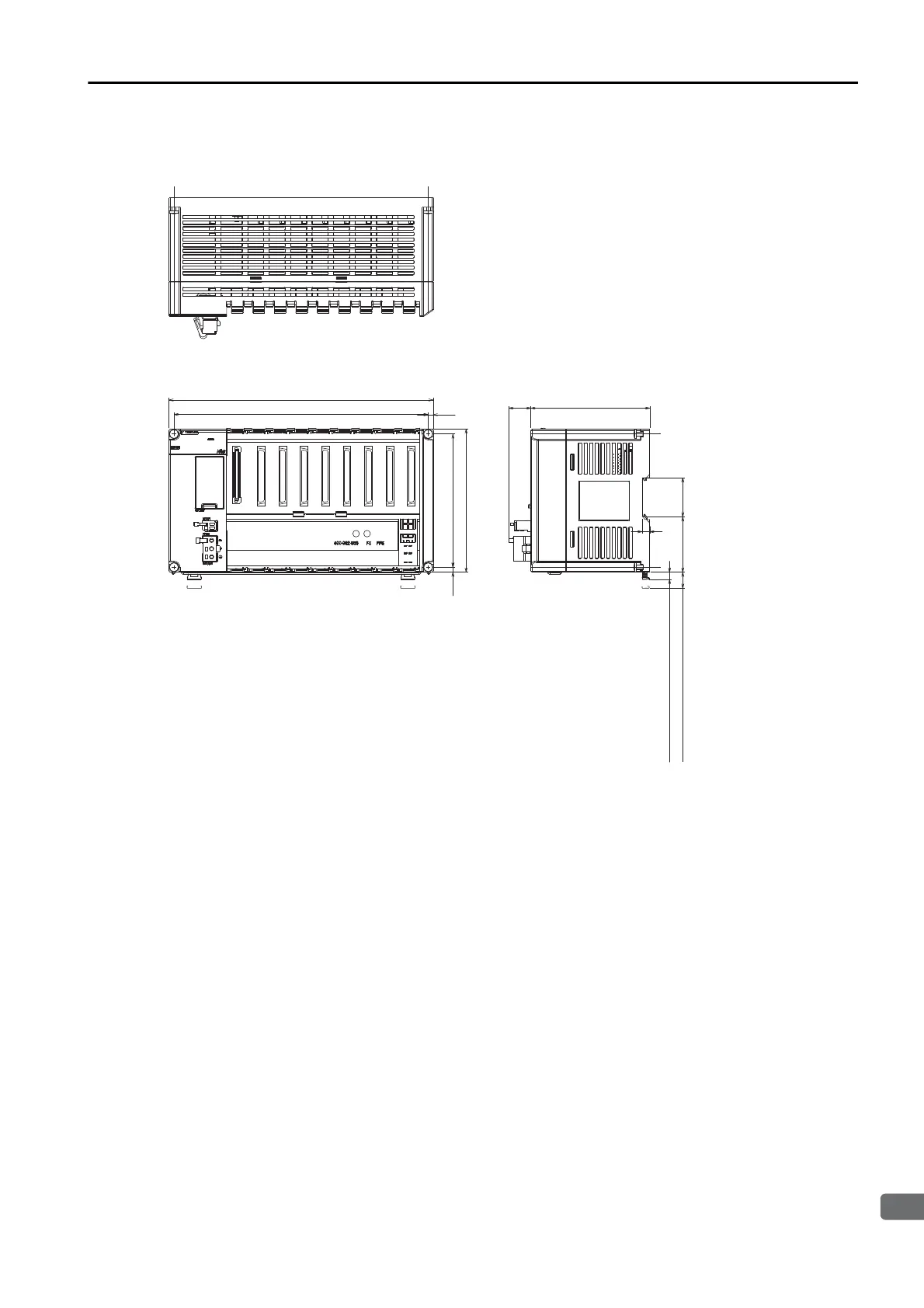

External Dimensions
Eight-slot Base Unit
 MBU-301
240
231
4.5
121 130
4.5
(21) 108
35.550.3
7
Mounted to DIN rail: (7) Before mounting to DIN rail: (15)
Unit: mm
Approx. weight: 0.7 kg
