2.1 CPU Module
2.1.1 Appearance and Part Names
2-3
Precautions When Using a CPU-302 Module

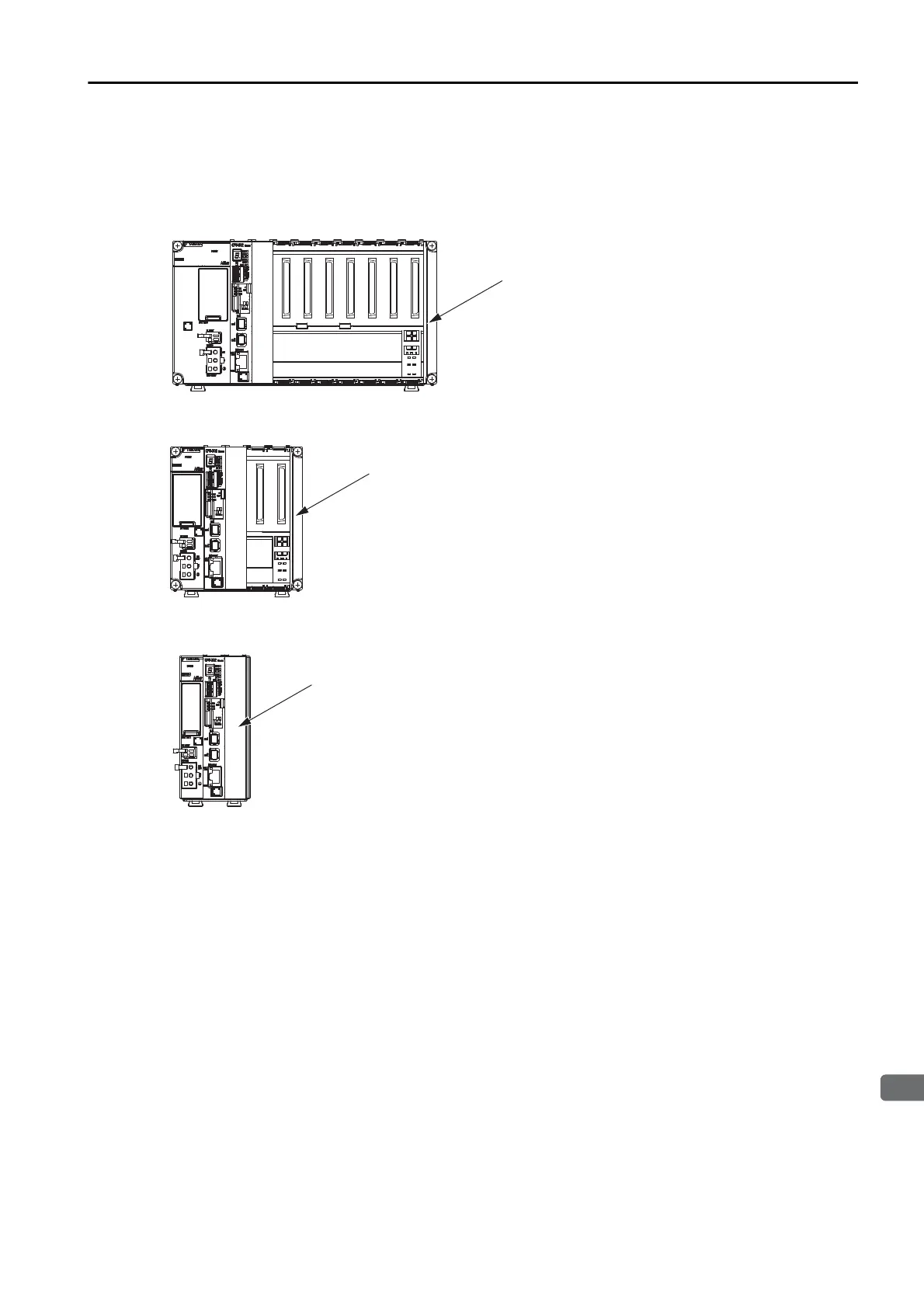

The CPU-302 Module uses the CPU Slot and one option slot. As shown below, the number of
usable Option Modules will be reduced by one when you mount the CPU-302 to any Base Unit.
MBU-01 or MBU-02 (Eight Slots)
MBU-03 (Three Slots)
MBU-04 (One Slot)
You can mount seven
Optional Modules.
You can mount two
Optional Modules.
You cannot mount any
Optional Modules.
