3.2 Function Modules
3.2.1 Self Configuration
3-38
5.

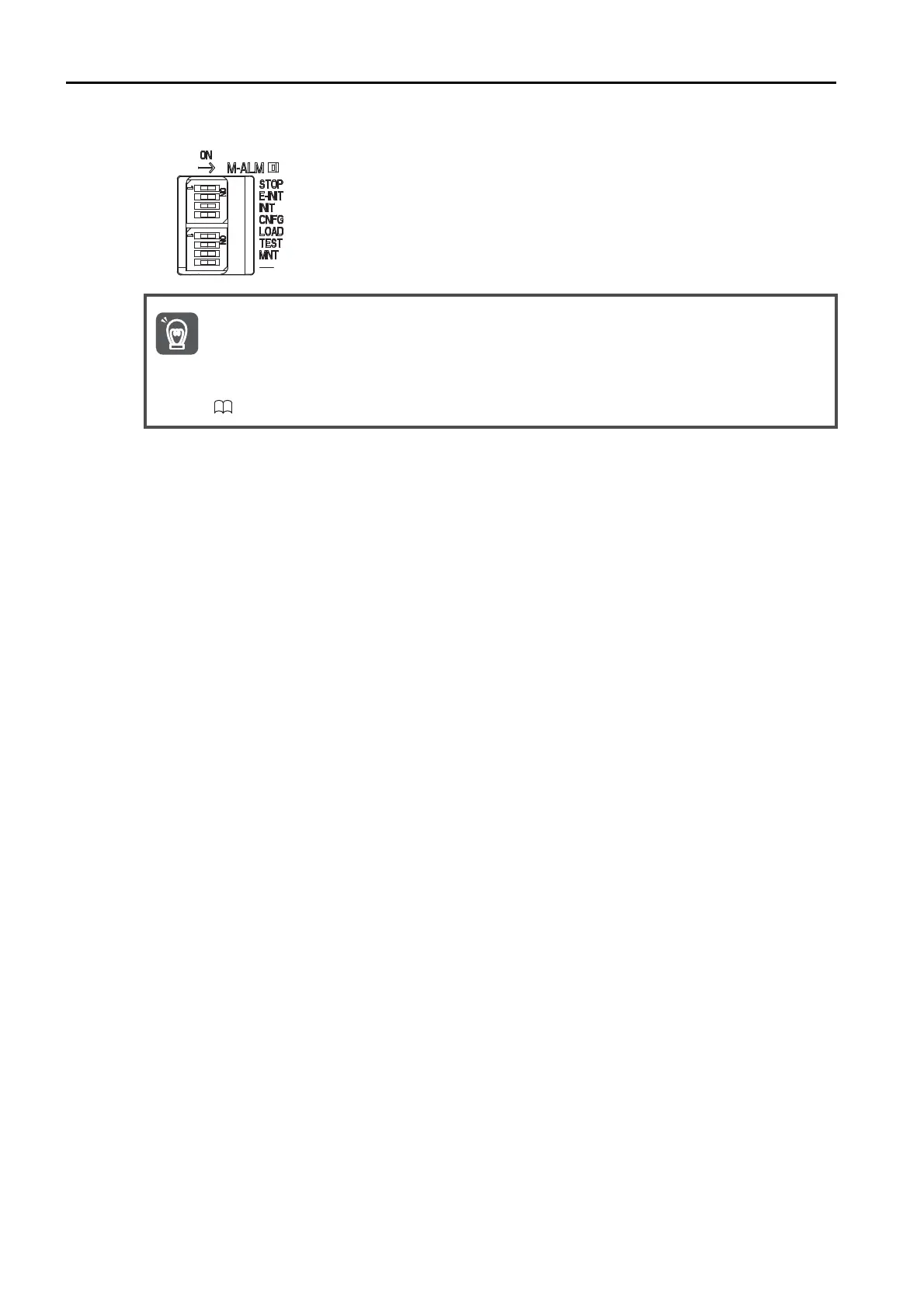

Turn OFF the CNFG pin on the DIP switches (mode switches) on the CPU Module.
Power Interruptions after Self Configuration
After performing self configuration, turn OFF the power supply to the Machine Controller only
after the definition data is saved to the flash memory of the Machine Controller.
If by chance, the power supply is turned OFF before the data is saved, perform self configuration
again.
Refer to the following manual for details on saving data to the flash memory.
MP2000/MP3000 Series Machine Controller System Setup Manual (Manual No.: SIEP C880725 00)
