3.2 Function Modules
3.2.4 The M-EXECUTOR
3-57
3
CPU Module Functionality
M-EXECUTOR Detail Settings
The detailed settings for the M-EXECUTOR are performed on the Module Configuration Tab
Page and the Detail Definition Dialog Box.
This section provides the procedures to display this tab page and dialog box, and describes their contents.

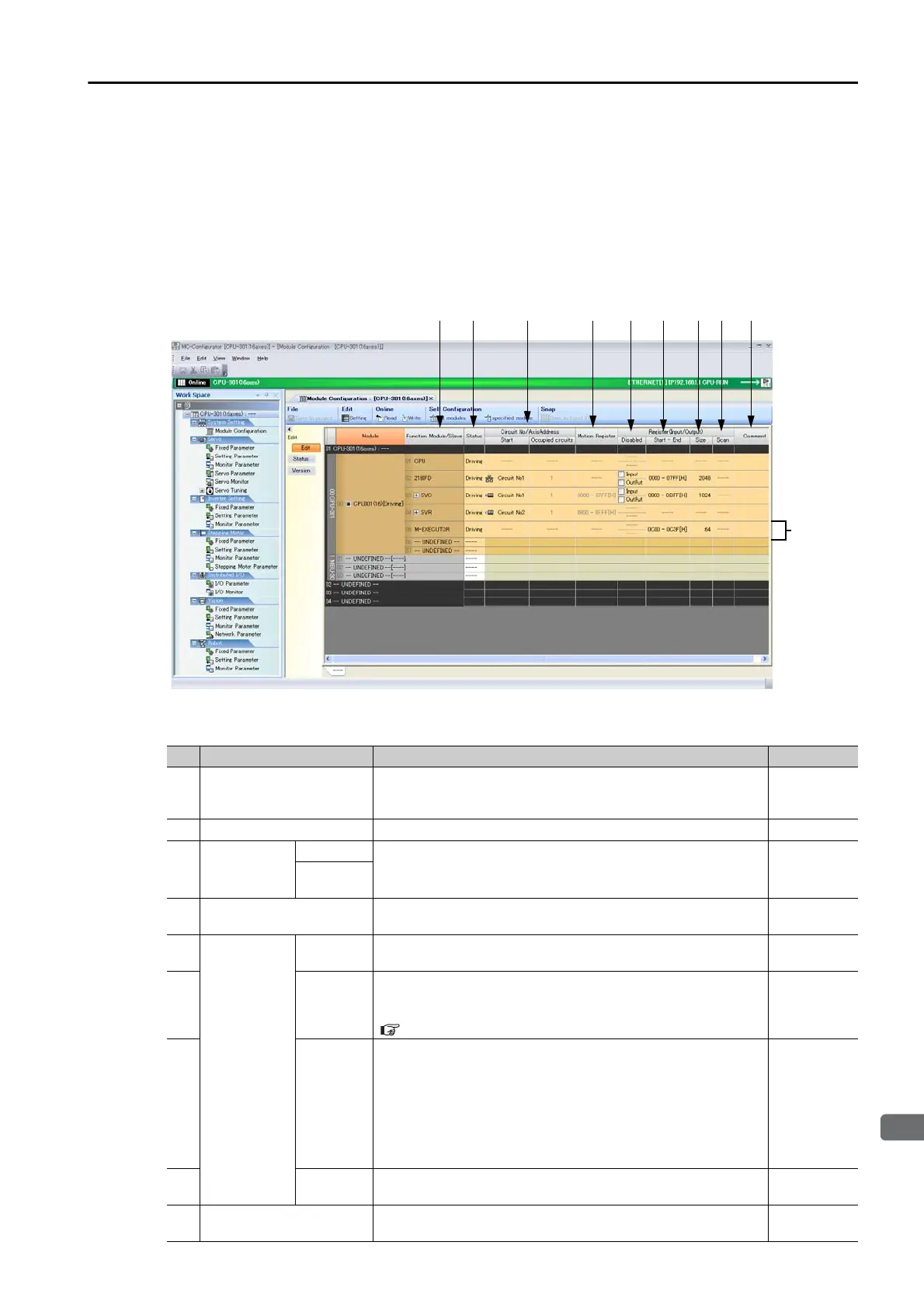

Module Configuration Definition Tab Page
Use the following procedure to display the Module Configuration Definition Tab Page.
• Click the Module Configuration Icon on the Start Tab Page.
The following table describes the M-EXECUTOR items that are displayed on the Module Con-
figuration Definition Tab Page.
No. Item Display/Setting Item Editing
Function Module/Slave
Displays whether the M-EXECUTOR is enabled.
• UNDEFINED: Disabled
• M-EXECUTOR: Enabled
Possible
Status Displays the status of the M-EXECUTOR. Possible
Circuit No./
Axis Address
Start
Not used.
“----” is always displayed.
Not possible
Occupied
circuits
Motion Register
Not used.
“----” is always displayed.
Not possible
Register
(Input/
Output)
Disabled
Not used.
“----” is always displayed.
Not possible
Start- End
Displays the range of registers that is used as the I/O area.
• Setting range: 00000 to 07FFF hex or 10000 to 17FFF hex
Refer to the following section for details.
Details on the I/O Registers on page 3-58
Possible
Size
The size of the I/O area is displayed in words.
• Setting range: 64 to 128
Four words each of input registers and output registers are
required to register a single motion program or sequence pro-
gram in the M-EXECUTOR. If you need to register more than
16 programs, set the size with four additional words for each
program to add. A maximum of 32 programs can be regis-
tered (maximum number of program definitions).
Possible
Scan
Not used.
“----” is always displayed.
Not possible
Comment
Display the user comment.
Enter a comment of up to 16 characters.
Possible
Cells for
M-EXEC-
UTOR
settings
To Next Page
