MS80W Manipulator
7 System Application
7.2 Internal User I/O Wiring Harness and Air Lines for User’s System
Applications

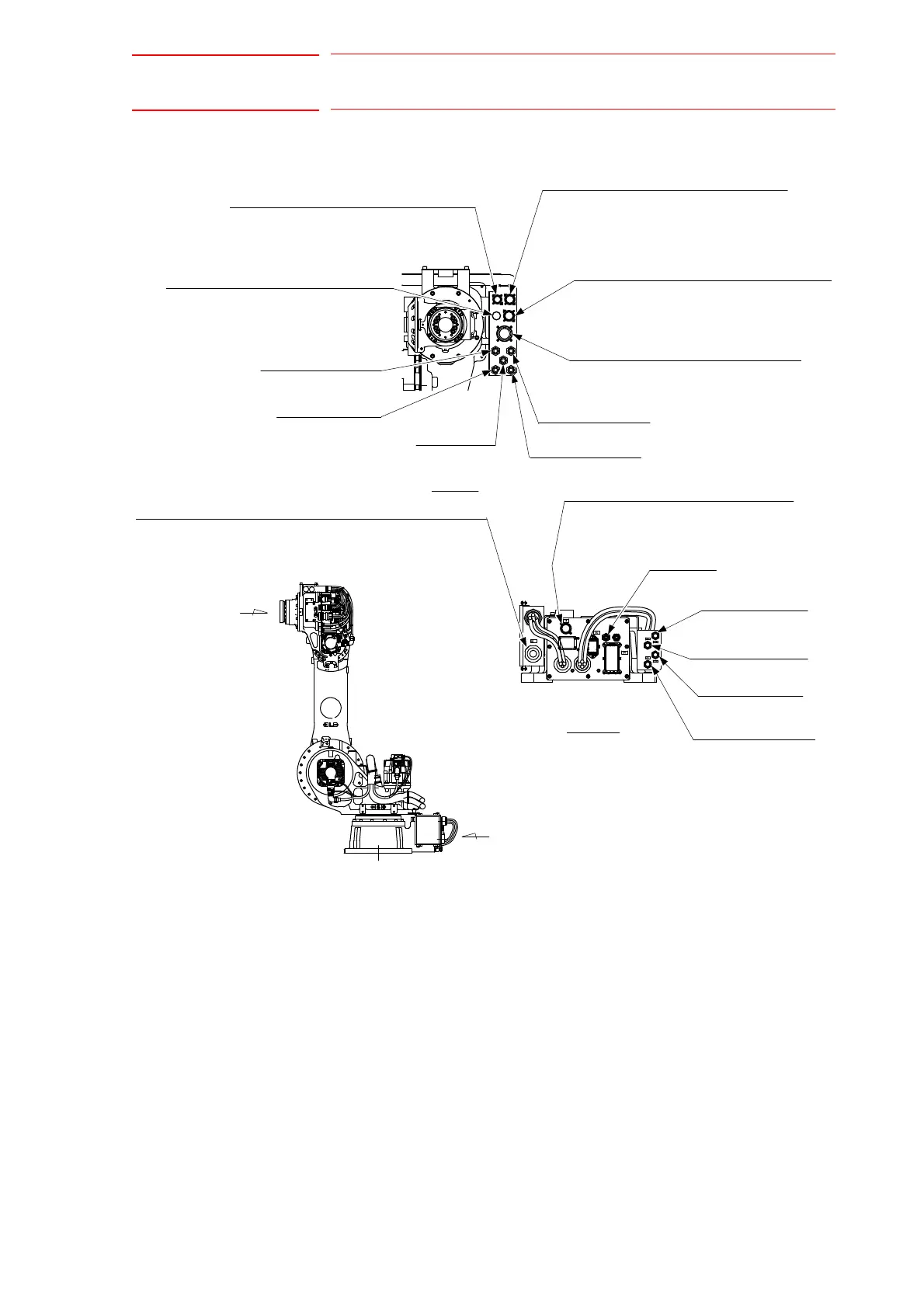

Fig. 7-2: Connectors for Internal User I/O Wiring Harness and Air Lines for
User’s applications
A
B
Connector for the external axis power cable:
Prepare pin connector JL05-6A18-1P
JL05-2A18-1SC-FO
(socket connector with a cap)
(socket connector with a cap)
Connector for the thermostat transformer:
Prepare pin connector MS3106B14S-1P
MS3100A14S-1S
Connector for the external axis power cable:
Prepare pin connector JL05-6A20-29P
JL05-2A20-29SC
(socket connector with a cap)
Connector for the internal I/O wiring harness:
Cooling water IN 2
KQE12-03
Cooling water OUT 2
KQE12-03
Cooling water IN 2
KQE12-03
C2BG3236 (SANKEI)
Exhaust (air)
KQE12-03
Cooling water IN 1
KQE12-04
Cooling water OUT 1
KQE12-04
Cooling water IN 2
KQE12-04
Cooling water OUT 2
KQE12-04
Air inlet
View A
View B
KQE12-03
Cooling water IN 1
KQE12-03
Prepare pin connector JL05-6A24-28P
JL05-2A24-28SC
(socket connector with a cap)
Connector for the internal I/O wiring harness:
Prepare pin connector JL05-6A24-28S
JL05-2A24-28PC
(socket connector with a cap)
Connector for the primary source for welding
Prepare pin connector MS3106B36-3P
MS3100A36-3S
and for the cables of extenal damage detector
(with a cap)
For the folloing cables, terminal blocks are prepared in the box:
-Cables for the primary source for welding power
-Cables for the thermostat transformer
