Yealink SIP-T46S Administrator's Guide

Phone Customization
227
It is not applicable to color screen phones.
Topics
Custom Logo Picture Limit
Customizing a Logo Picture
Custom Logo Configuration
Example: Setting a Custom Logo Display

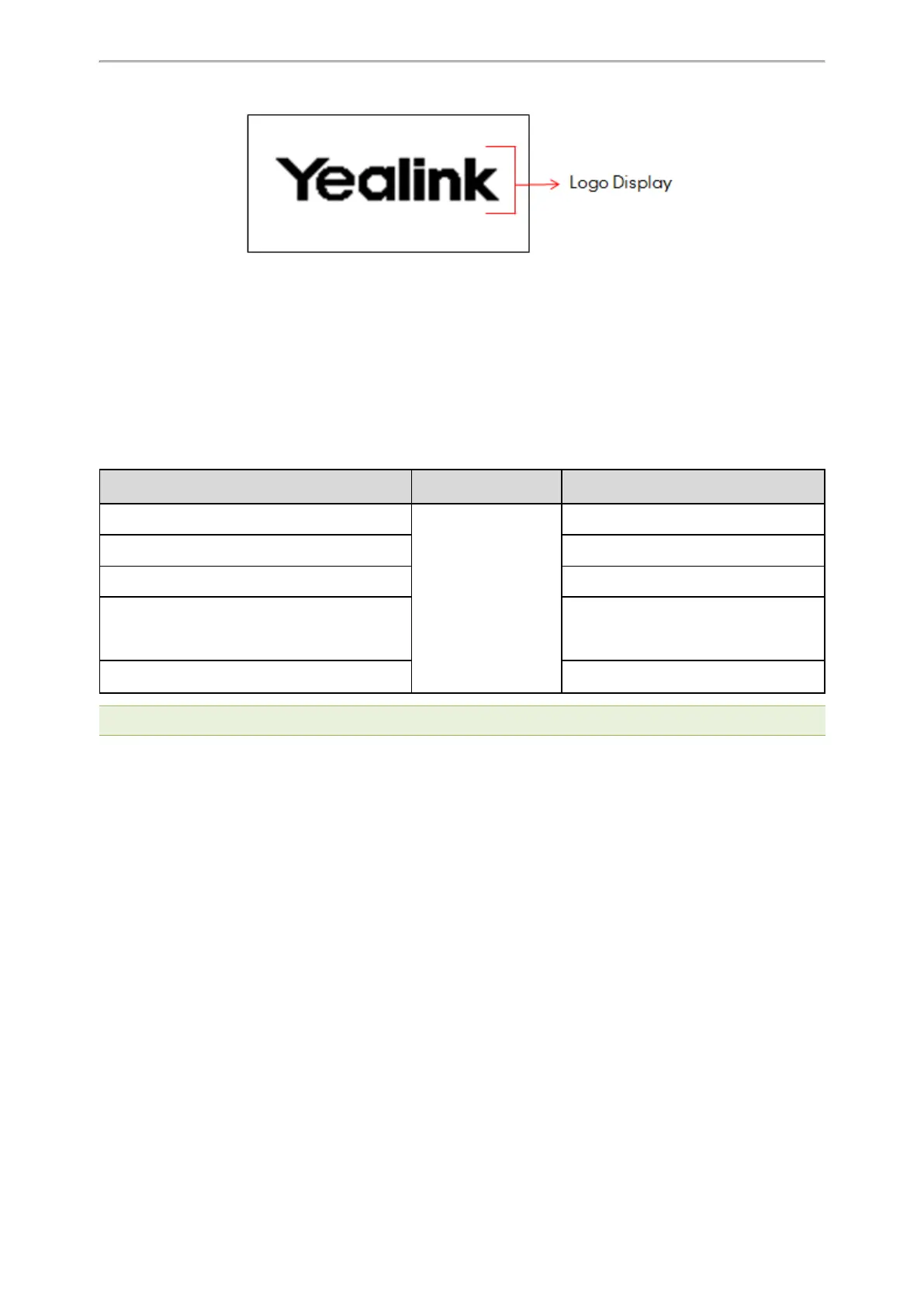

Custom Logo Picture Limit
The following table lists the supported logo picture format and resolution for each phone model.
Phone Model Logo File Format Resolution
T42U/T42S/T42G/T41P/T41S
.dob
<=192*64 2 gray scale
T53W/T53/T43U <=360*160 2 gray scale
T27G <=240*120 2 gray scale
T40P/T40G/T23P/T23G/T21(P) E2/T19(P) E2 <=132*64 2 gray scale
CP920 <=248*120 2 gray scale
Note: Before uploading your custom logo to phones, ensure your logo file is correctly formatted.
Customizing a Logo Picture
Yealink phones only support the *.dob format logo picture. Yealink provides PictureExDemo tool to convert *.bmp
format to *.dob format. You can ask the distributor or Yealink FAE for the PictureExDemo tool.
Procedure
1.
Double click the PictureExDemo.exe.
2. Click Add button to open a *.bmp file.
You can repeat step 2 to add multiple original picture files.

Yealink SIP-T46S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	10
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
Package depth	255 mm
Package width	274 mm
Package height	128 mm
